Software tools for LauraT's Roadmap

Quoting hanover

Disliked

The PositionSettings from left to right are:  Chart Sub-window# (0=main chart, 1=first subwindow, 2=second subwindow, etc)  Corner (TR=Top Right, TL=Top Left, BR=Bottom Right, BL=Bottom Left. The order of the timeframes is reversed horizontally if 'Right' is chosen, and the order of the symbols is reversed vertically if 'Bottom' is chosen)  Horizontal (x) start position  Vertical (y) start position  Horizontal spacing (distance between timeframe columns)  Horizontal adjustment (distance between symbol...

Ignored

Quoting Kafin

Disliked

Kindly implement the following in your next update: 1) Configurable font size 2) Horizontal loop to be based on the number of Periods that are selected/configured - i.e. loop will be 4 for a trader that is only interested in M1, M5, M15, and M30. (Presently fixed at 8 for ALL periods) This is for the benefit of traders that use 15/17 inch laptops.

Ignored

Quoting Behnood

Disliked

( FHD resolution , scaled 150% recommended by windows ), first column is overlapped by the second column(Wingdings3) and different settings can't solve the problem.

Ignored

Quoting hanover

Disliked

Try v 1.03 (download from post #1). I have made the spacing of the Wingdings3 symbols dependent on Horizontal Adjustment (previously the caluclation was based on the Font Size). I can't test every possible combo of settings, so please post again if the issue persists, and I'll try something else.

Ignored

Quoting hanover

Disliked

{quote} These facilities have always been available. 1) Font size is configurable via setting FontNameSizeColor 2) Columns (timeframes) to display — including the order in which they are displayed — is configurable via setting TimeFrames Please see post #1 for more info. ________________________________ {quote} .

Ignored

Quoting Kafin

Disliked

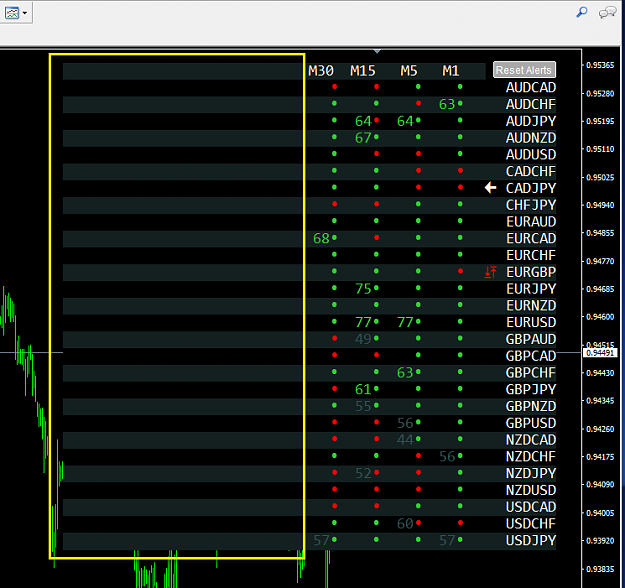

I now see where to modify the font size, I will spend some time this weekend to study this brilliant method of combining parameters (FontNameSizeColor). The Horizontal loop that I'm referring to is shown in the attached picture.

Ignored

Quoting hanover

Disliked

{quote} The method for combining parameters is somewhat obsolete now, as I devised it to work around the (smallish) parameter entry window, in the days when this window wasn't resizeable. It uses the StrToStringArray() function to split the string into an array of values. The width of the background is set by the BackgroundWidth parameter. More info in post #1.

Ignored

Quoting TheG-Lover

Disliked

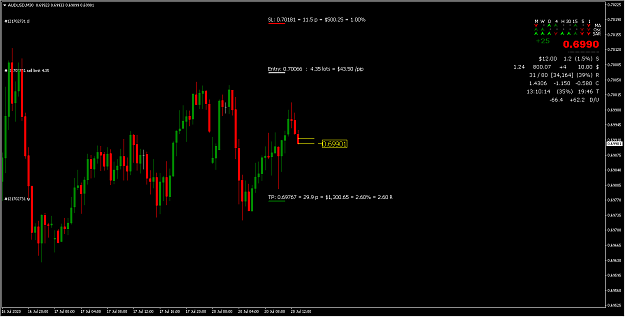

(I hate MT4 because it draws full lines across the chart for SL, TP, etc. you cannot really tell by your posting where you got into the trade)

Ignored

Quoting hanover

Disliked

I don't know how to remove the text at the left of the chart.

Ignored

ChartSetInteger(ChartID(), CHART_SHOW_TRADE_LEVELS, false);

Quoting Jagg

Disliked

{quote} This is possible with setting CHART_SHOW_TRADE_LEVELS to false (which could be added to your indicator with a setting show trade levels yes/no for example) ChartSetInteger(ChartID(), CHART_SHOW_TRADE_LEVELS, false);

Ignored

Quoting hanover

Disliked

{quote} Many thanks. I learn new things every day. The indicator is so old that it was written in build 509. If/when I upgrade it to the build 600+ compiler, I'll make that enhancement.

Ignored

Quoting hanover

Disliked

{quote} Many thanks. After a lengthy process of trial and error, I'm pretty sure that the !SM_ADR Marker calculation works as follows: 1. Calculate ATR = a 14 day ATR (of daily candles) counting back from the previous day 2. ADR_high = Today's low (so far) + ATR ADR_low = Today's high (so far) – ATR 3. Then, whichever occurs first during the day: (i) Immediately if/when price reaches or exceeds ADR_high: Lock ADR_high to its existing level (for the rest of the day) Lock ADR_Low = ADR_high – ATR (for the rest of the day) OR (ii) Immediately if/when...

Ignored

Quoting Ican2020

Disliked

Will it be possible to add a line or whatever in the software scanner that shows locked ADR high and low when it occurs. That's something displaying price above locked ADR line and locked ADR low.

Ignored

Quoting hanover

Disliked

{quote} Hello sir, Assuming that I understand you correctly, I will include something like this in the next release. I'm busy at the moment so I'm not sure when I'll get around to it.

Ignored

Quoting dbsdsun

Disliked

I'm talking about Horizontal adjustment in Position Settings

Ignored

 StrToStringArray(PositionSettings,arr);
  Window       = StrToInteger(arr[0]);
  Corner       = 2*(StringFind(StringUpper(arr[1]),"B")>=0) + (StringFind(StringUpper(arr[1]),"R")>=0);
  HorizPos     = StrToInteger(arr[2]);
  HorizAdjust  = StrToInteger(arr[3]);
  HorizSpacing = StrToInteger(arr[4]);
  VertPos      = StrToInteger(arr[5]);
  VertSpacing  = StrToInteger(arr[6]);

Quoting hanover

Disliked

{quote} Hello sir, Many thanks for pointing out an error in the instructions in post #1. The correct order should read: The PositionSettings from left to right are:  Chart Sub-window# (0=main chart, 1=first subwindow, 2=second subwindow, etc)  Corner (TR=Top Right, TL=Top Left, BR=Bottom Right, BL=Bottom Left. The order of the timeframes is reversed horizontally if 'Right' is chosen, and the order of the symbols is reversed vertically if 'Bottom' is chosen)  Horizontal (x) start position  Horizontal spacing (distance...

Ignored

Quoting Egbert

Disliked

What will the default RSI value be? Can it be changed? PS: Would be nice if the angleator and this dashboard can display same values? Time frames slope from angleator to display direction on dashboard? Will it be posibble to put the angleator into the dashboard?

Ignored
