ADX Dashboard (MT4 & MT5)

ADX Dashboard MT4
ADX Dashboard MT5

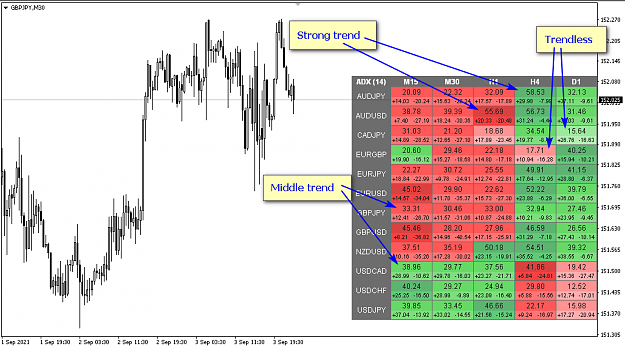

This indicator is used to determine the trend and its strength. The direction of the price is shown by the +DI and -DI values, and the ADX value shows the strength of the trend. If +DI is above -DI, then the market is in an uptrend, if on the contrary, it is a downtrend. If ADX is below 20, then there is no definite direction. As soon as the indicator breaks this level, a medium-strength trend begins. Values above 40 indicate a strong trend (a downtrend or an uptrend).

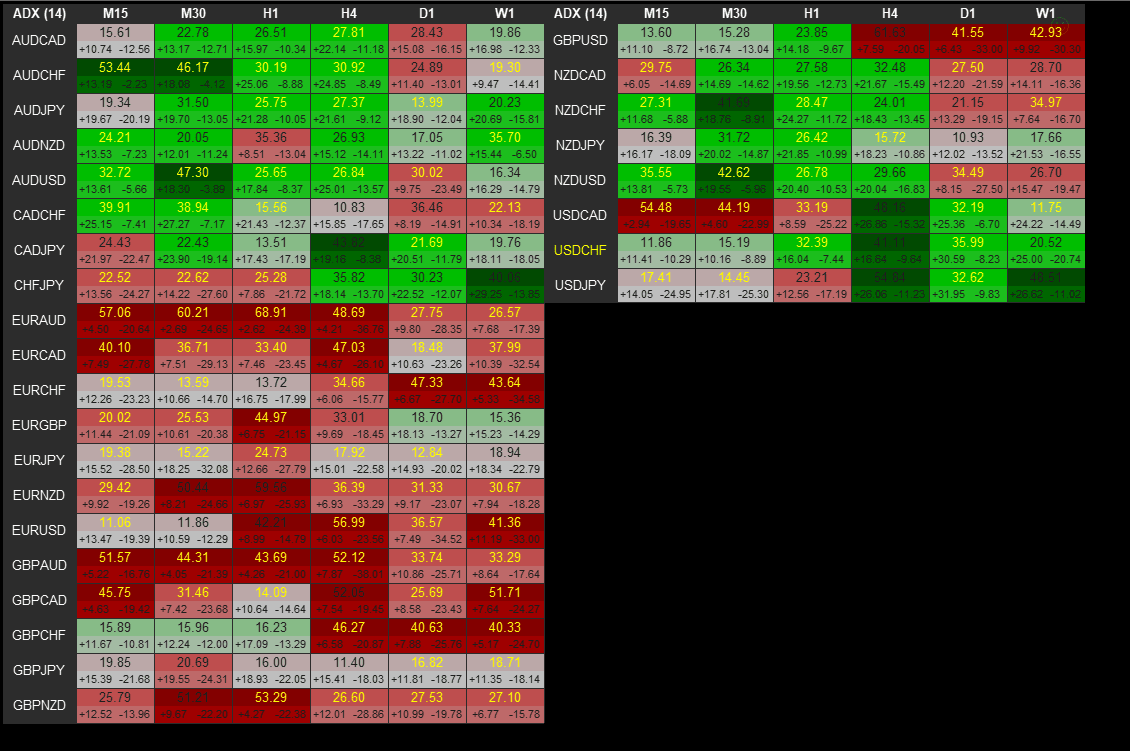

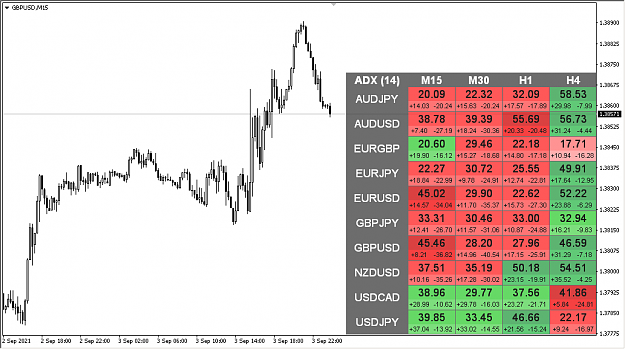

Multicurrency and multitimeframe modification of the Average Directional Movement Index (ADX) indicator. You can specify any desired currencies and timeframes in the parameters. Also, the indicator can send notifications when the trend strength levels are crossed, and when the +DI and -DI lines are crossed. By clicking on a cell with a period, this symbol and period will be opened. This is MTF Scanner.

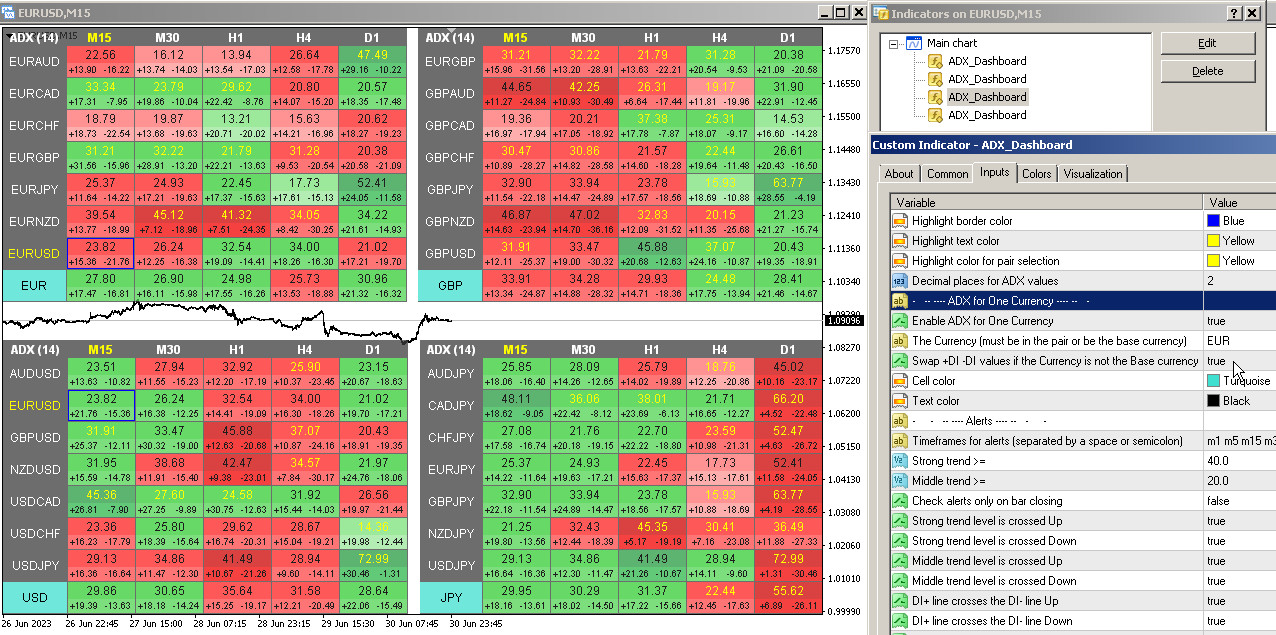

Similar to the Currency Strength Meter (CSM), the Dashboard can automatically select pairs that contain a specified currency, or those pairs that have that currency as their base currency. The indicator searches for Currency in all pairs that are specified in the “Set of Pairs”; other pairs are ignored. And based on these pairs, the total ADX for this currency is calculated. And you can see how strong or weak that currency is.

The key to hide the dashboard from the chart is "D" by default.

You can export data from ADX Dashboard to a CSV file. The file will be saved to the terminal folder: \MQL4\Files or \MQL5\Files.
The data will be recorded according to the timer - "Refresh dashboard every (seconds)".
To update the saved file when opened in Excel, you need to open it via "Data tab" - "Get External Data From Text". Then the file will be updated by the dashboard and in Excel.

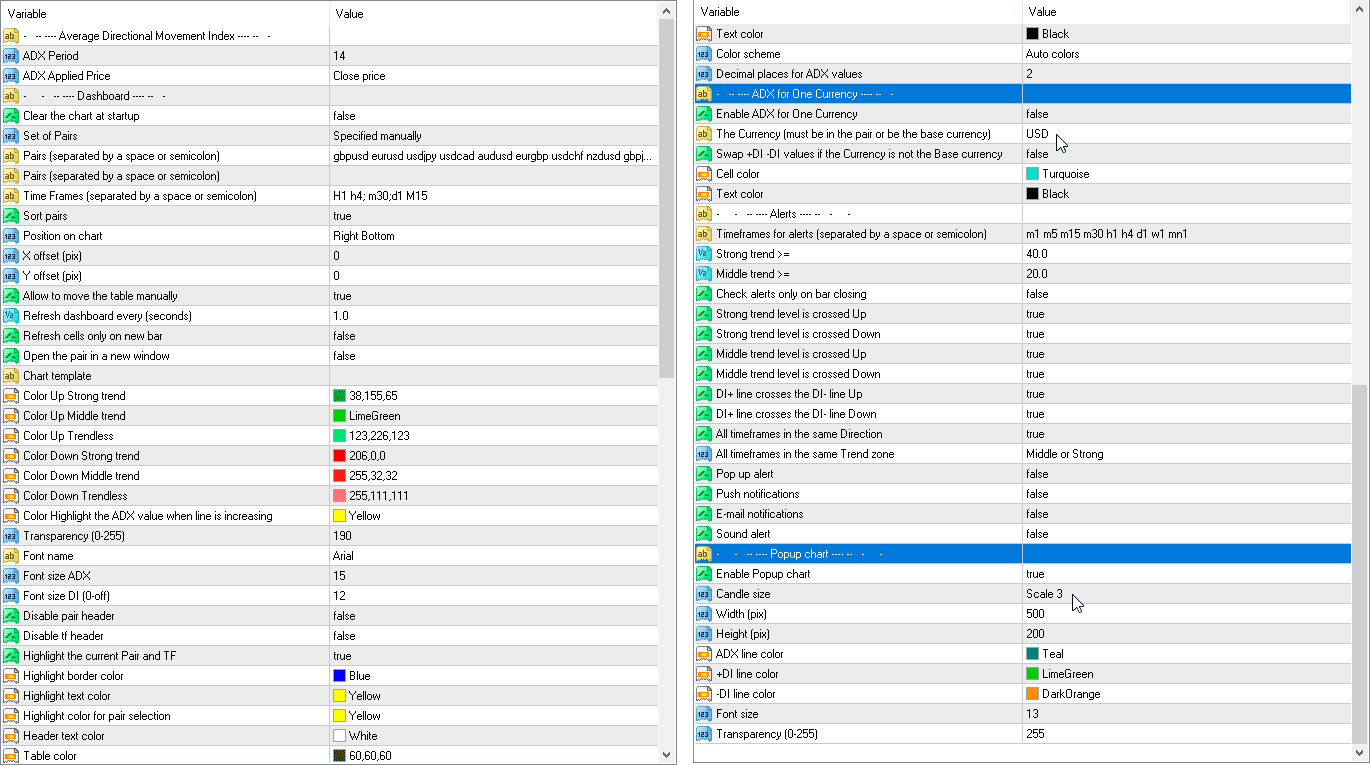

Parameters

1. ADX Period — averaging period.
2. ADX Applied Price — price type.
3. Clear the chart at startup — clear the chart at startup.
4. Set of Pairs — set of symbols
   1. Market Watch — pairs from the "Market Watch".
   2. Specified manually — pairs specified manually, in the parameters "Pairs".
   3. Current pair.

5. Pairs (separated by a space or semicolon) — list of symbols separated by spaces or semicolons. The currency names should be written exactly like the broker's, keeping the case and prefix/suffix.
6. Time Frames (separated by a space or semicolon) — list of timeframes separated by spaces or semicolons.
7. Sort pairs — sorting the list of pairs.
8. Position on chart — corner to display the panel on the chart.
9. X offset (pix) — shift the panel along the X axis.
10. Y offset (pix) — shift the panel along the Y axis.
11. Allow to move the table manually — allow moving the table with the mouse.
12. Refresh dashboard every (seconds) — update period for all pairs and timeframes.
13. Refresh cells only on new bar — cell updates (and alerts) will only occur when a new bar appears.
14. Open the pair in a new window — open a symbol in a new chart window by clicking.
15. Chart template — the name of the template for the chart, if the chart opens in a new window.
16. Color Up Strong trend — cell color if there is a strong trend.
17. Color Up Middle trend — cell color, if the middle trend.
18. Color Up Trendless — cell color if there is no trend.
19. Color Down Strong trend — cell color if there is a strong trend.
20. Color Down Middle trend — cell color, if the average trend.
21. Color Down Trendless — cell color if there is no trend.
22. Transparency (0-255) — transparency of the panel.
23. Font name.
24. Font size ADX.
25. Font size DI (0-off).

Alerts

1. Timeframes for alerts (separated by a space or semicolon) — list of periods for which the alert will be sent (separated by a space or semicolon).
2. Strong trend >= — the level of a strong trend
3. Middle trend >= — the level of the middle trend.
4. Check alerts only on bar closing — check level crossing only after bar closing.
5. Strong trend level is crossed Up — alert when ADX crosses the level of a strong trend up.
6. Strong trend level is crossed Down — alert when ADX crosses the level of a strong trend down.
7. Middle trend level is crossed Up — alert when the level of the middle trend is crossed upwards.
8. Middle trend level is crossed Down — alert when the level of the middle trend is crossed downwards.
9. DI+ line crosses the DI- line Up — alert when DI+ crosses DI- up.
10. DI+ line crosses the DI- line Down — alert when DI+ crosses DI- down.
11. All timeframes in the same direction — alert when all cells show the same direction.
12. Pop up alert.
13. Push notifications.
14. E-mail notifications.
15. Sound alert.

Export Data from MT4 (MT5) to CSV file

1. Allow data export
2. File name
3. Separator between columns
4. Export ADX
5. Export DI+
6. Export DI-

Popup chart

1. Enable Popup chart
2. Candle size
3. Width (pix)
4. Height (pix)
5. Font size
6. Transparency (0-255)

Version 1.10
1) Added parameter: "Color Highlight the ADX value when line is increasing".

Version 1.30
1) Added an alert when all timeframes are in the same trend zone - "All timeframes in the same Trend zone".

Version 1.40
1) Added a parameter to highlight the current Pair and TF. (Highlight the current Pair and TF).
2) Added tooltip with current values.
Version 1.50
1) Added tooltips showing current trend strength and current ADX direction.

This Dashboard is amazing!
Easy to use and helps find strength and pull backs.

Thank you.

Version 1.60
1) Added "Refresh cells only on new bar" parameter.
Version 1.70
1) Disabled stopping the indicator in case of an error starting the ADX. Now there will be a repeated attempt to launch the ADX.
Version 1.80
1) Added parameter "Decimal places for ADX values".

Version 1.90
1) Added the ability to enable/disable alerts for each Symbol when clicking on the name of the Pair. If no Pair is selected then alerts are enabled for all Symbols.
Version 2.0

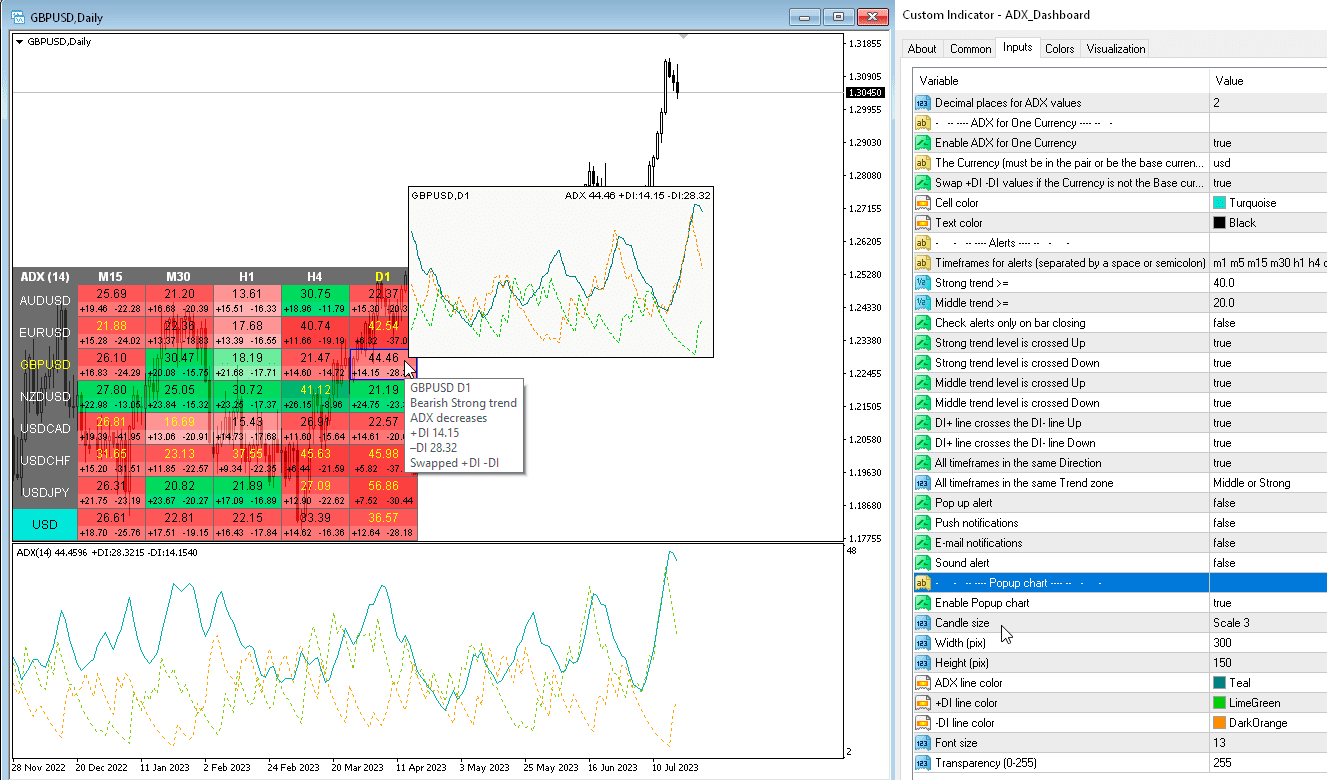

1) Added parameters "ADX for One Currency" and "Swap +DI -DI values". The dashboard will automatically select pairs containing the specified Currency or those pairs that have this Currency as the base. The indicator will also calculate the ADX for this Currency on a separate line.
2) Alert bug for "All timeframes in the same Trend zone" has been fixed.

Version 2.10
1) Added "Color scheme" parameter.
2) Changed the color scheme.
Version 2.20

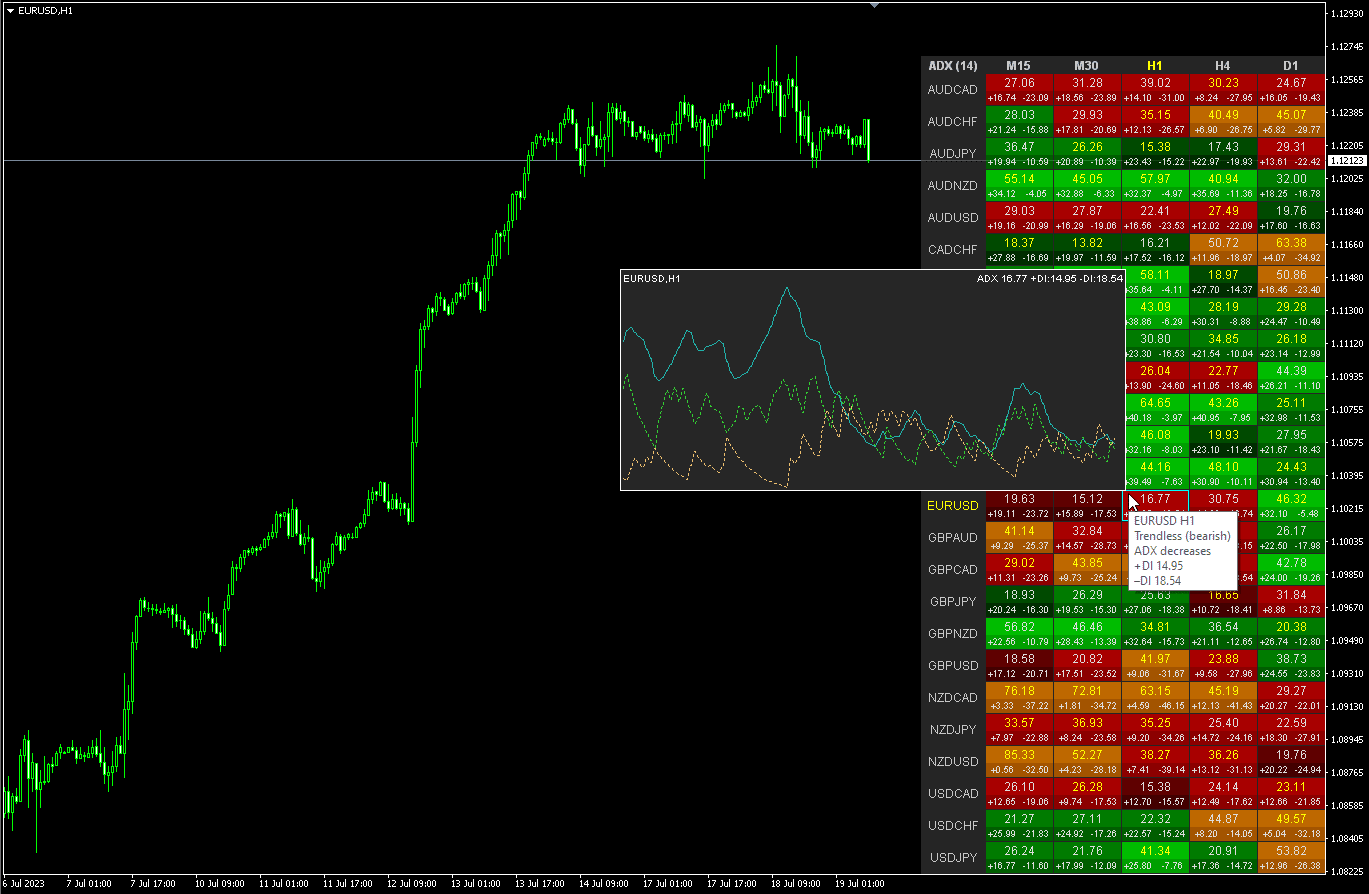

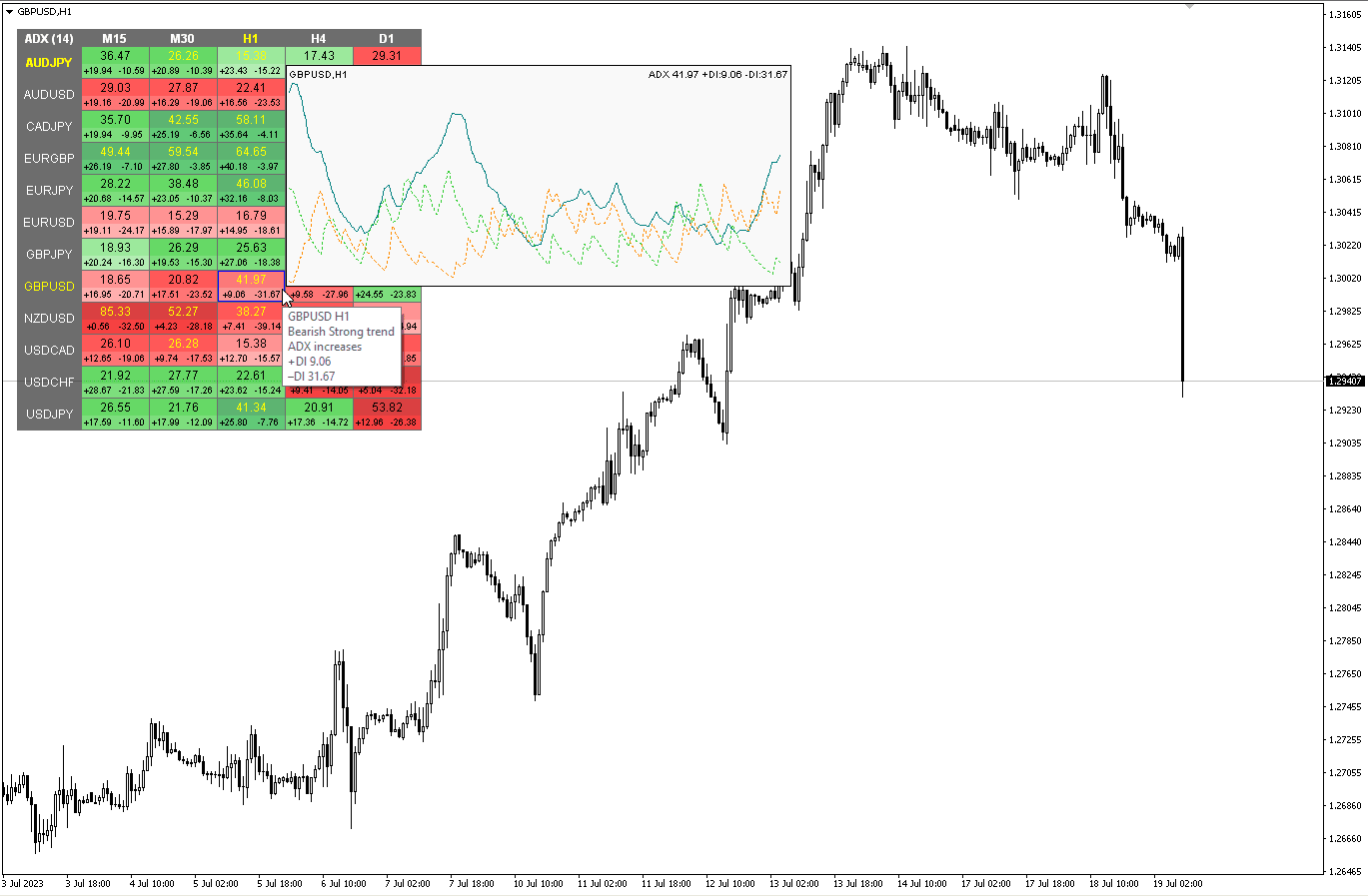

1) Added "Popup chart" parameters. Now, when you hover the mouse over the cells, you can see a pop-up chart from this timeframe.
2) Fixed some minor bugs.

Version 2.30
1) The condition of the list of pairs for the second parameter has been changed. Pairs in the second parameter must be typed only with a semicolon and must be in exact case. "Pairs (separated ONLY by a semicolon and have exact letter case)"
2) Added parameter "Enable text tooltip in the table".
Version 2.40
1) Added a hotkey to hide the dashboard, by default "D".
2) The condition of the list of pairs for the second parameter has been changed. Pairs in the second parameter must be typed only with a semicolon and must be in exact case. "Pairs (separated ONLY by a semicolon and have exact letter case)"
Version 2.50
1) Optimization of pop-up windows for MT5.
Version 2.60
1) Returned the deletion of the dashboard from the chart at startup.
Version 2.70
1) Added a Dashboard recovery check when running multiple copies on the same chart.
Version 2.80
1) Added "Hotkey to enable/disable the Popup chart" parameter for "Popup chart".
2) Added "Y-offset (pix)" parameter for "Popup chart".
Version 2.90
1) The "Y-offset (pix, +/-)" parameter can now be negative.
2) Changed the behavior of the pop-up chart when the window is small.
Version 3.00
1) Added automatic shifting of the dashboard to the foreground.
Version 3.10
1) Changed the behavior of setting the timer at startup. Now the indicator tries to start the timer again when a new tick arrives. If there is no tick for a long time (or it’s a weekend), you can click on the button on the chart and restart the timer yourself.
Version 3.20
1) Added parameters: "DI+ changes direction", "DI- changes direction", DI+ crosses level X (0-off)", "DI- crosses level X (0-off)".

Version 3.30
1) Added parameter: "ADX changes direction".
Version 3.40
1) Added color parameters for highlighting the text of +DI and -DI values - “Highlight the +DI value when line is increasing” and “Highlight the -DI value when line is increasing”.

Version 3.50
1) Changed the calculation of cell width in the dashboard.
Version 3.60

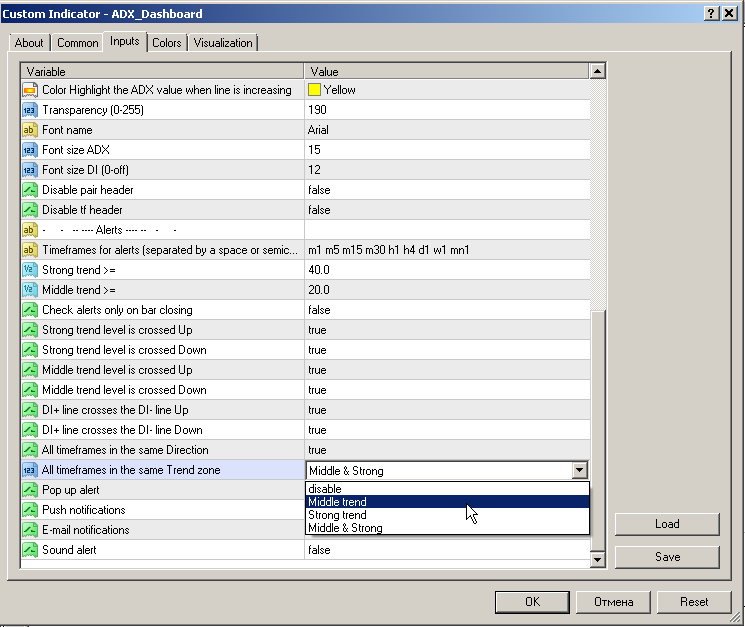

1) The option “Middle and/or Strong” has been added to the “All timeframes in the same Trend zone” alert. That is, for the alert, all cells must be in the Middle and/or Strong trend zone.

Version 3.70
1) The alert parameters “+DI crosses level X” and “-DI crosses level X” were split into up and down directions.
Version 3.80
1) Fixed a bug in calculating cell height.

Version 3.90
1) Added parameters for Exporting dashboard data to CSV file: "Export Data to CSV file". Data is recorded by timer - "Refresh dashboard every (seconds)".
To update the saved file when opened in Excel, you need to open it via "Data tab" - "Get External Data From Text". Then the file will be updated by the dashboard and in Excel.

Version 4.00
1) Changed the order of displaying the pop-up chat together with other dashboards.
Version 4.10
1) For "+DI line crosses the -DI line" parameters, options for choosing the strength of the trend have been added.
