Custom Indicator - Draw Arrow and Close Price Line

Quoting FerruFx

Disliked

{quote} Not sure to understand but you have an "ObjectMove()" function to move objects on chart.

Ignored

Quoting futurespec

Disliked

When you get the MA cross .... { ObjectMove("mL", 0, Time[bar of MA cross], Low[of MA cross] - 5 * Point()); if(MA > MAprev) ObjectSet("mL", OBJPROP_COLOR , clrBlue); else ObjectSet("mL", OBJPROP_COLOR , clrRed); } M.

Ignored

Quoting futurespec

Disliked

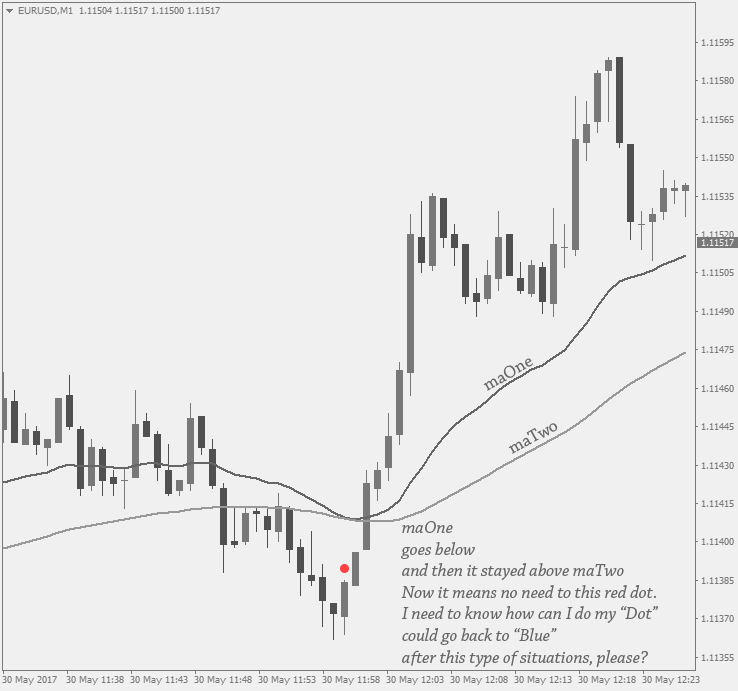

Think language is a problem here!? If you have the code to identify the cross then what I have suggested should place the dot/arrow at that bar. No need to "go back" ?? You said you want just one dot. The existing dot would be moved forward to the next identified cross and coloured accordingly. M.

Ignored

Quoting futurespec

Disliked

Here you go, this should do it (I think). M. {file}

Ignored

#property strict
#property indicator_chart_window
#property indicator_buffers 2
string arrowIcon="delete arrow icon";
int i;
double arrowLow,arrowHigh,priceOne,priceTwo,priceOne_pre,priceTwo_pre,bufferOne[],bufferTwo[];
color clrup=clrBlue,clrdown=clrRed;
datetime arrowTime;
//---------------------------------------------------------
// OnDeinit
void OnDeinit(const int reason)
  {
   ObjectsDeleteAll(0,"delete");
   return;
  }
// OnInit
int OnInit()
  {
   IndicatorDigits(Digits);
// line
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,1,clrdown);
   SetIndexBuffer(0,bufferOne);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,1,clrup);
   SetIndexBuffer(1,bufferTwo);
//---
   return(0);
  }
// OnCalculate
int OnCalculate(const int rates_total,const int prev_calculated,
                const datetime  &time[],const double  &open[],const double  &high[],
                const double  &low[],const double  &close[],const long  &tick_volume[],
                const long  &volume[],const int  &spread[])
  {
//---
   int lookback=30; // I do not know what could I write here.
   for(i=Bars-1-MathMax(lookback,prev_calculated); i>=0; --i)
     {
      bufferOne[i]=iMA(Symbol(),0,lookback/2,0,MODE_EMA,PRICE_CLOSE,i);
      bufferTwo[i]=iMA(Symbol(),0,lookback,0,MODE_EMA,PRICE_CLOSE,i);
      priceOne = bufferOne[i];
      priceTwo = bufferTwo[i];
      priceOne_pre = bufferOne[i+5];
      priceTwo_pre = bufferTwo[i+5];
      // buy
      if(priceOne>priceTwo && priceOne_pre<=priceTwo_pre)
        {
         arrowTime=Time[i];
         //arrowLow  = iLow( Symbol(), 0, i );
         arrowLow=Low[i];
         objArrow();
         if(ObjectFind(0,arrowIcon)>=0)
           {
            ObjectMove(0,arrowIcon,0,arrowTime,arrowLow-5*Point);
            ObjectSetInteger(0,arrowIcon,OBJPROP_COLOR,clrup);
            ObjectSetInteger(0,arrowIcon,OBJPROP_ANCHOR,ANCHOR_TOP);
           }
        }
      // sell
      if(bufferOne[i]<bufferTwo[i] && priceOne_pre>=priceTwo_pre)
        {
         arrowTime = Time[i];
         arrowHigh = High[i];
         objArrow();
         if(ObjectFind(0,arrowIcon)>=0)
           {
            ObjectMove(0,arrowIcon,0,arrowTime,arrowHigh+5*Point);
            ObjectSetInteger(0,arrowIcon,OBJPROP_COLOR,clrdown);
            ObjectSetInteger(0,arrowIcon,OBJPROP_ANCHOR,ANCHOR_BOTTOM);
           }
        }
     }
   Print("Time: ",arrowTime,"  Low: ",arrowLow);
//    Print( "priceOne ", DoubleToString( priceOne, Digits ), "  priceTwo ", DoubleToString( priceTwo, Digits ) );
//---
//return(0); // works correct but cause lags
   return(rates_total - 1); // no lags but does not go to previous ma cross after fake ma cross
  }
// objects
void objArrow()
  {
   if(ObjectFind(0,arrowIcon)<0)
     {
      ObjectCreate(0,arrowIcon,OBJ_ARROW,0,arrowTime,arrowLow);
      ObjectSetInteger(0,arrowIcon,OBJPROP_ARROWCODE,159);
      ObjectSetInteger(0,arrowIcon,OBJPROP_WIDTH,2);
     }
//---
   return;
  }
//+------------------------------------------------------------------+

Quoting MaxEnrik

Disliked

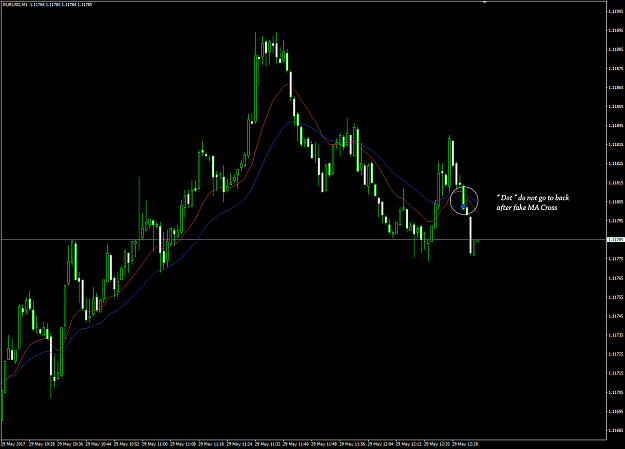

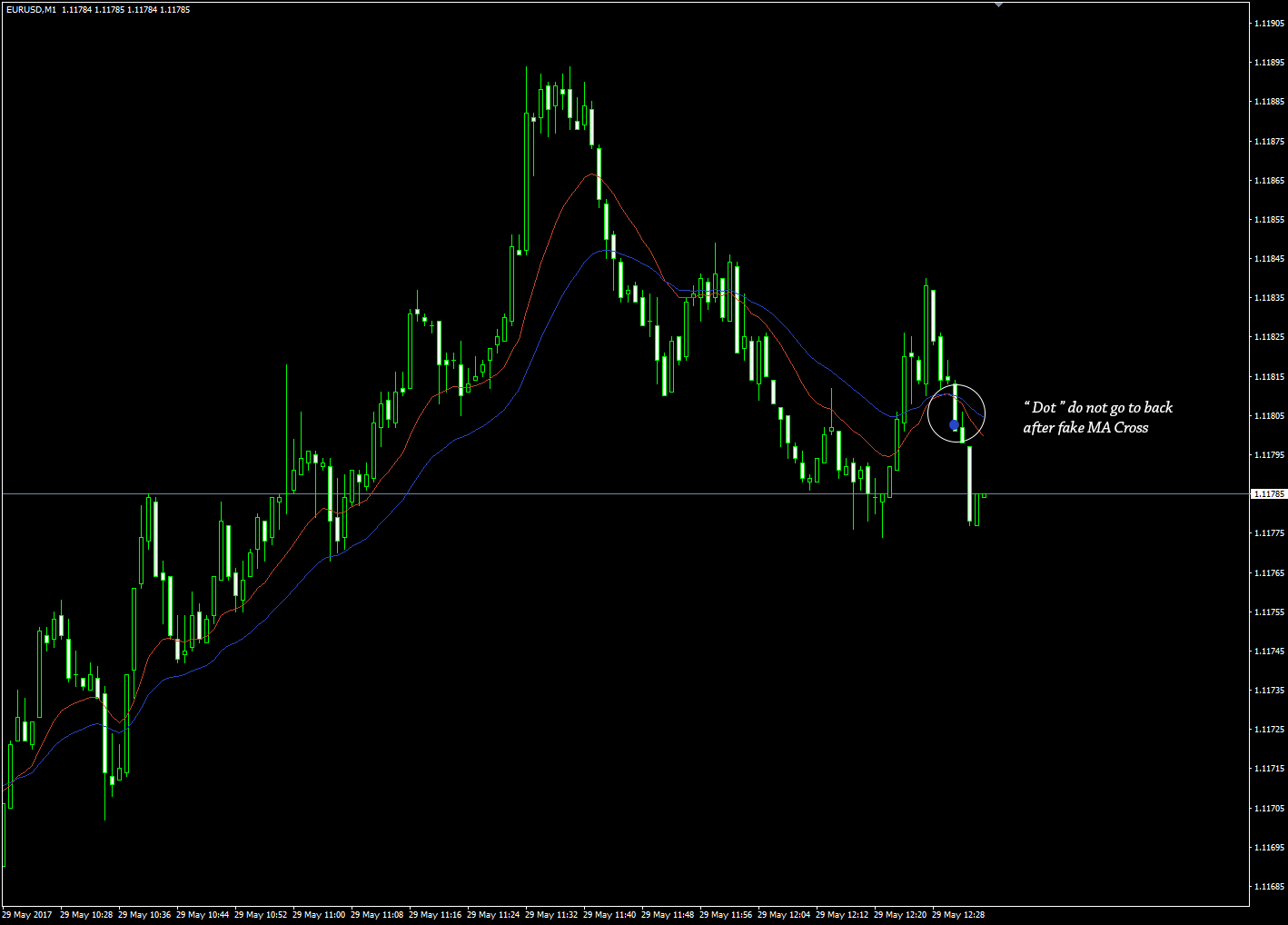

My custom indicator lagging (/ too slow) when I use " return(0); " but it's works correctly, when I replace it with " return(rates_total - 1); " now no lagging, but does not works correctly, which is indicator does not go back to previous MA cross after fake MA cross. If someone understand my concern correctly, please help me. Thanks in advance.

Ignored
