DislikedThanks FXEZ for putting up this thread and thanks guys for your valuable contributions. Very interesting stuff here that really helps seperate the wheat from the chaff. :-)Ignored
- #27
- Edited 12:05pm Dec 28, 2016 9:24am | Edited 12:05pm
- Joined Aug 2010 | Status: Stare Into the Lights My Pretties! | 795 Posts
Look at this chart very carefully!
These are 100 equity curves with 1000 trades each.
What do you see? Do you notice these exponentially rising trends, which are rising to 100%, 200%, 300%, 400%......
These curves are 5 - 8% of all curves.
They look pretty good!?
What do you think?
-----------------------------------------------------------------
What you don't realize(at first), is the fact that ALL of these curves are generated by system with NEGATIVE(small, but negative) mathematical expectancy per trade!
This means that eventually over time ALL of these curves will go to zero!
However, if you look at all these positive curves ( the "winners") and study each one of them on individual basis, you will find that they all have positive expectancy per trade (based on their history). Despite the fact that they are generated by system with negative expectancy!
What this means is that, LUCK can persist for a very long time! These are 1000 trades each! I can simulate 10 000 trades and you will still find a few "consistent" "winners".....producing positive expectancy per trade.
It's perfectly normal from statistical standpoint.
Now imagine what the situation will be, if you never knew how these curves are generated!
What if I just pick only the best 10 curves out of 1000 simulations (with all their individual statistics), and tell you that these are made by successful professional traders.
Think about this for a moment!
You can also go to the "leader" board section of this site.......just to notice that the list with "leaders" is limited to ONLY 100 traders! (despite the fact that right now there are 11,628 traders with trade explorers linked to FF.
Just some food for thought........
------------------------------------------------------------
The reality is that you can be wildly successful trader for quite some time, without realizing that this spectacular success is generated by system with negative mathematical expectancy. Then eventually when the law of large numbers starts to kick in, and the equity starts to collapse with spectacular speed (reverting to the mean). - you just say - well, the market "changed" and "my system stopped working". Sounds Familiar?
What you don't realize is that your system never worked in the first place, and you are just one lucky poor soul for not knowing the difference!
Now think about the possibilities (statistically).
What percentage of all successful (and famous) traders are just lucky winners? (normal statistical outliers)
I mean, especially for the lower frequency strategies, it may take many years for them to accumulate a few thousand trades.
In the mean time these people are managing OPM. Some of them have hundreds of millions under management! And their investors and everyone in the industry thinks that these traders are superstars!
While many of them truly are superstars, it's possible (based on probability theory) that most are just very very lucky.
What do you think?
I think that the red pill tastes like shit, but at least it gives you some truth!
And only truth will set you free.....Or so they say.
These are 100 equity curves with 1000 trades each.
What do you see? Do you notice these exponentially rising trends, which are rising to 100%, 200%, 300%, 400%......
These curves are 5 - 8% of all curves.
They look pretty good!?
What do you think?
-----------------------------------------------------------------
What you don't realize(at first), is the fact that ALL of these curves are generated by system with NEGATIVE(small, but negative) mathematical expectancy per trade!
This means that eventually over time ALL of these curves will go to zero!
However, if you look at all these positive curves ( the "winners") and study each one of them on individual basis, you will find that they all have positive expectancy per trade (based on their history). Despite the fact that they are generated by system with negative expectancy!
What this means is that, LUCK can persist for a very long time! These are 1000 trades each! I can simulate 10 000 trades and you will still find a few "consistent" "winners".....producing positive expectancy per trade.
It's perfectly normal from statistical standpoint.
Now imagine what the situation will be, if you never knew how these curves are generated!
What if I just pick only the best 10 curves out of 1000 simulations (with all their individual statistics), and tell you that these are made by successful professional traders.
Think about this for a moment!
You can also go to the "leader" board section of this site.......just to notice that the list with "leaders" is limited to ONLY 100 traders! (despite the fact that right now there are 11,628 traders with trade explorers linked to FF.
Just some food for thought........
------------------------------------------------------------
The reality is that you can be wildly successful trader for quite some time, without realizing that this spectacular success is generated by system with negative mathematical expectancy. Then eventually when the law of large numbers starts to kick in, and the equity starts to collapse with spectacular speed (reverting to the mean). - you just say - well, the market "changed" and "my system stopped working". Sounds Familiar?
What you don't realize is that your system never worked in the first place, and you are just one lucky poor soul for not knowing the difference!
Now think about the possibilities (statistically).
What percentage of all successful (and famous) traders are just lucky winners? (normal statistical outliers)
I mean, especially for the lower frequency strategies, it may take many years for them to accumulate a few thousand trades.
In the mean time these people are managing OPM. Some of them have hundreds of millions under management! And their investors and everyone in the industry thinks that these traders are superstars!
While many of them truly are superstars, it's possible (based on probability theory) that most are just very very lucky.
What do you think?
I think that the red pill tastes like shit, but at least it gives you some truth!
And only truth will set you free.....Or so they say.
- #29
- Dec 28, 2016 9:20pm Dec 28, 2016 9:20pm

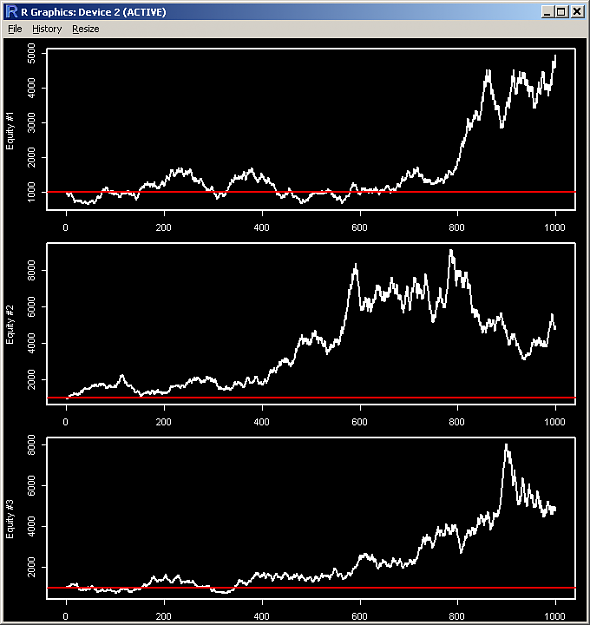

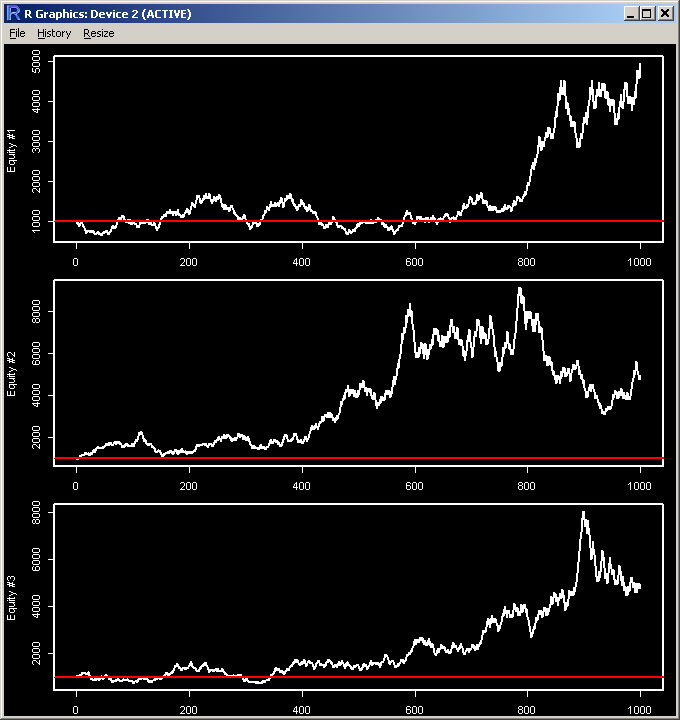

The following three charts represent three different systems. All are profitable. In your opinion, which one is the best of the three? All three systems started with the same amount of money: $1000, and used the exact same money management strategy: percent of equity, and the same leverage: 20x.
I computed the Sharpe ratio for the 3 systems and they were as follows:
System #1: 1.61
System #2: 0.72
System #3: 1.11
Now it's becoming quite clear that system #2 is the worst of the three, and system #1 is probably the best. But if you look at another metric: the % of time spent above break-even, system #2 takes the prize, followed by system #3 and then a distant third system #1. What about other metrics?
All three systems ended up with the same ending account balance. Does that change your view of which system was best? What about if I told you that all three systems had exactly a 53% win rate and the exact same reward:risk ratio? What's going on here?
The only difference between the three equity curves is in the sequence of the wins and losses, not in the count of the wins and losses. All systems had 1000 trades with 53% wins and leveraged their current equity by 20 times at each step. But there are 3 different unique win/loss paths followed by the three systems, and all three paths lead to the exact same end point.
So what can I surmise from this? The previous post by alphaomega refers to luck, similar to the tone struck in "Fooled by Randomness" by Taleb. But what about skill? It seems that a great deal of the particular path taken constitutes luck with all its variation, but the fixed end point and expectancy constitutes skill. All three systems have the exact same expectancy, so by this measure all three are equally skilled. But the curves look quite different to the eye and to the Sharpe ratio, even though all three curves arrive at the same terminal balance.
I write this as one who has spent a lot of time analyzing the path of equity curves in search of an advantage. Maybe it has been a hopeless endeavor? These tests were done with simulated data, which, though useful is not the same as real market data. But is that distinction important? I'm starting to wonder...
I also can say that given a fixed number of trades and a fixed win percent and reward:risk ratio, the outcome of a system using percent of equity money management is not path dependent. Or in other words the equity will arrive at the exact same spot even if you randomly change the path of wins/losses. That's an interesting property.
I computed the Sharpe ratio for the 3 systems and they were as follows:
System #1: 1.61
System #2: 0.72
System #3: 1.11
Now it's becoming quite clear that system #2 is the worst of the three, and system #1 is probably the best. But if you look at another metric: the % of time spent above break-even, system #2 takes the prize, followed by system #3 and then a distant third system #1. What about other metrics?
All three systems ended up with the same ending account balance. Does that change your view of which system was best? What about if I told you that all three systems had exactly a 53% win rate and the exact same reward:risk ratio? What's going on here?
The only difference between the three equity curves is in the sequence of the wins and losses, not in the count of the wins and losses. All systems had 1000 trades with 53% wins and leveraged their current equity by 20 times at each step. But there are 3 different unique win/loss paths followed by the three systems, and all three paths lead to the exact same end point.
So what can I surmise from this? The previous post by alphaomega refers to luck, similar to the tone struck in "Fooled by Randomness" by Taleb. But what about skill? It seems that a great deal of the particular path taken constitutes luck with all its variation, but the fixed end point and expectancy constitutes skill. All three systems have the exact same expectancy, so by this measure all three are equally skilled. But the curves look quite different to the eye and to the Sharpe ratio, even though all three curves arrive at the same terminal balance.
I write this as one who has spent a lot of time analyzing the path of equity curves in search of an advantage. Maybe it has been a hopeless endeavor? These tests were done with simulated data, which, though useful is not the same as real market data. But is that distinction important? I'm starting to wonder...
I also can say that given a fixed number of trades and a fixed win percent and reward:risk ratio, the outcome of a system using percent of equity money management is not path dependent. Or in other words the equity will arrive at the exact same spot even if you randomly change the path of wins/losses. That's an interesting property.
- #30
- Edited 5:03am Dec 29, 2016 1:34am | Edited 5:03am
- | Commercial User | Joined Apr 2013 | 4,366 Posts
Great stuff Guys. The conclusions drawn in posts 27 and 29 are something to ponder. Most interesting were the conclusions drawn by the importance of key variables by FXEZ on a hypothetical simulation where there was a fixed number of trades, fixed win % and fixed reward to risk ratio, the bolded items being the fundamental constituents of expectancy.
What is clear from FXEZ's analysis however is that markets do not exhibit this constant feature. As a result both the path of the equity curve and the final outcome becomes a variable feast and highly affected by where and when non-random price action is located within the data series.
I have drawn similar conclusions regarding the degree of luck that is present in any equity curve. Alpha appears to be a very small bias in an otherwise random outcome that over the Law of Large Numbers results in positive expectancy, but it is impossible to predict when the non-random features of price action unfold. You need to be very careful in your assessment of the performance metrics of your system in discerning between actual performance results and results attributed to simple chance.
As FXEZ has clearly demonstrated, there is considerable variation in the profile of the equity curve that can simply be attributed to the particular sequence of trades in the return series.
Given this feature, it is useful when assessing the performance metrics of any single trading system to plot where the historic equity curve of a return series fits in a Monte Carlo sequence (where the trade sequence is re-ordered).
Simply relying on performance metrics associated with any historic equity curve is a dangerous exercise unless you consider the result of your backtest in the context of the entire population of possible trade sequences.
Example 1
For example refer to the chart above (Example 1). The graph displays the historic equity curve (in orange) of a system offering a slight positive expectancy. Simply making conclusions on the historic equity curve alone in assessing your performance metrics can lead you into a serious trap. The orange equity curve has all the characteristics of a system with a high positive expectancy, a low drawdown, high annual sharpe and a good return result......however.....now for the fine print....... how much of this equity curve performance metrics can be attributed to simply the trade sequence?
If we plot the historic return series in the context of the possible different configurations of trade sequence (refer again to the chart above) we find that the historic result is not representative of the average of the series (which would be positioned in the middle of the entire population). The orange equity curve plots at the upper end of the population series indicative of the fact that a large portion of the result can simply be attributed to the favourable nature of this particular trade sequence.
The upper placement of the historic plot in the entire population of series suggests that the equity curve is dominated by simple random good luck with a favourable trade sequence outcome as opposed to a result that typifies the performance metrics of the system. It is likely that a trader using the historic equity curve alone as a guide to future results is going to be disappointed when going live, as they may find, when the trade sample size increases, that the result reverts to the mean of the entire distribution series.
If however I compared the return distribution of Example 1 above to Example 2 below we can more confidently make the following conclusions in regards to overall performance metrics.
Example 2
1. The entire distribution of the MonteCarlo sequence of Example 2 demonstrates that this system possesses a far higher positive expectancy than Example 1. All possible trade sequence outcomes generate a stronger more linear (less volatile) performance result, whereas a large proportion of the population of trade sequences in the prior example were overall losers and correspondingly, the overall volatility profile of individual return series was far more variable. This suggests that for Example 1, the sequence of trades is a far greater dictator of overall performance results than the underlying performance metrics.
2. The standard deviation amongst the total population of possible return series in example 2 is far tighter than the standard deviation of the population of the total possible return series of the prior example, demonstrating that example 2 possesses a far more robust edge that the prior example for the given set of market conditions in this sample. Furthermore the equity curve outcome is dominated by the performance metrics ofthe system as opposed to the simply sequencing of trades.
3. The plot of the historic equity curve fits snugly around the average of the entire population of return series suggesting that the historic result is far more representative of the system performance metrics over the time series concerned, and can therefore be used as a far better guide of future expected returns, provided of course that future conditions are representative of the time series in the sample.
So the moral of the story is that you should never assume that the historic equity curve of your trading system is a suitable proxy for the future unless you closely consider the impact that the sequence of trade results may have in biasing historic performance results.
What is clear from FXEZ's analysis however is that markets do not exhibit this constant feature. As a result both the path of the equity curve and the final outcome becomes a variable feast and highly affected by where and when non-random price action is located within the data series.
I have drawn similar conclusions regarding the degree of luck that is present in any equity curve. Alpha appears to be a very small bias in an otherwise random outcome that over the Law of Large Numbers results in positive expectancy, but it is impossible to predict when the non-random features of price action unfold. You need to be very careful in your assessment of the performance metrics of your system in discerning between actual performance results and results attributed to simple chance.
As FXEZ has clearly demonstrated, there is considerable variation in the profile of the equity curve that can simply be attributed to the particular sequence of trades in the return series.
Given this feature, it is useful when assessing the performance metrics of any single trading system to plot where the historic equity curve of a return series fits in a Monte Carlo sequence (where the trade sequence is re-ordered).
Simply relying on performance metrics associated with any historic equity curve is a dangerous exercise unless you consider the result of your backtest in the context of the entire population of possible trade sequences.
Example 1
For example refer to the chart above (Example 1). The graph displays the historic equity curve (in orange) of a system offering a slight positive expectancy. Simply making conclusions on the historic equity curve alone in assessing your performance metrics can lead you into a serious trap. The orange equity curve has all the characteristics of a system with a high positive expectancy, a low drawdown, high annual sharpe and a good return result......however.....now for the fine print....... how much of this equity curve performance metrics can be attributed to simply the trade sequence?
If we plot the historic return series in the context of the possible different configurations of trade sequence (refer again to the chart above) we find that the historic result is not representative of the average of the series (which would be positioned in the middle of the entire population). The orange equity curve plots at the upper end of the population series indicative of the fact that a large portion of the result can simply be attributed to the favourable nature of this particular trade sequence.
The upper placement of the historic plot in the entire population of series suggests that the equity curve is dominated by simple random good luck with a favourable trade sequence outcome as opposed to a result that typifies the performance metrics of the system. It is likely that a trader using the historic equity curve alone as a guide to future results is going to be disappointed when going live, as they may find, when the trade sample size increases, that the result reverts to the mean of the entire distribution series.
If however I compared the return distribution of Example 1 above to Example 2 below we can more confidently make the following conclusions in regards to overall performance metrics.
Example 2
1. The entire distribution of the MonteCarlo sequence of Example 2 demonstrates that this system possesses a far higher positive expectancy than Example 1. All possible trade sequence outcomes generate a stronger more linear (less volatile) performance result, whereas a large proportion of the population of trade sequences in the prior example were overall losers and correspondingly, the overall volatility profile of individual return series was far more variable. This suggests that for Example 1, the sequence of trades is a far greater dictator of overall performance results than the underlying performance metrics.
2. The standard deviation amongst the total population of possible return series in example 2 is far tighter than the standard deviation of the population of the total possible return series of the prior example, demonstrating that example 2 possesses a far more robust edge that the prior example for the given set of market conditions in this sample. Furthermore the equity curve outcome is dominated by the performance metrics ofthe system as opposed to the simply sequencing of trades.
3. The plot of the historic equity curve fits snugly around the average of the entire population of return series suggesting that the historic result is far more representative of the system performance metrics over the time series concerned, and can therefore be used as a far better guide of future expected returns, provided of course that future conditions are representative of the time series in the sample.
So the moral of the story is that you should never assume that the historic equity curve of your trading system is a suitable proxy for the future unless you closely consider the impact that the sequence of trade results may have in biasing historic performance results.
- #31
- Dec 29, 2016 8:56am Dec 29, 2016 8:56am
- Joined Aug 2011 | Status: Trader | 1,327 Posts
No greed. No fear. Just maths.
- #32
- Dec 29, 2016 9:17am Dec 29, 2016 9:17am
- Joined Aug 2011 | Status: Trader | 1,327 Posts
Bernoulli trials are certainly not perfect representatives of market trading activity but they are analytically tractable. We can plot the envelope of all the possible random "equities" within 3 standards deviations simply knowing the winrate and the RR.
The standard deviation of this envelope grows as the square root of the numbers of "trades". The expected "equity" grows linearly.
Good news at some point the mean overcomes the variance: there is a point of maximal DD risk (blue) after which the worst case scenario is stricly increasing.
This implies that at some point (green) the worst case scenario (within 3σ) is above the starting equity and growing.
Bad news: with the values I chose (54%, RR=1) you need 178 trades to pass the max DD point and 699 trades to be safe. That's quite a lot.
In order to reach this point you need a high frequency of trading. Read alphaomega's post again: high frequency trading = huge cost.
You have to be really sure of your edge. I mean statistically not by fooling yourself.
The standard deviation of this envelope grows as the square root of the numbers of "trades". The expected "equity" grows linearly.
Good news at some point the mean overcomes the variance: there is a point of maximal DD risk (blue) after which the worst case scenario is stricly increasing.
This implies that at some point (green) the worst case scenario (within 3σ) is above the starting equity and growing.
Bad news: with the values I chose (54%, RR=1) you need 178 trades to pass the max DD point and 699 trades to be safe. That's quite a lot.
In order to reach this point you need a high frequency of trading. Read alphaomega's post again: high frequency trading = huge cost.
You have to be really sure of your edge. I mean statistically not by fooling yourself.
Inserted Code
# Setup the graphics if (dev.cur() == 1) x11() par(mar=c(3,2,2,1)) b <- 100 # starting balance p <- 0.54 # probability of winning R <- 1 # RRR E <- p*(R+1)-1 # Expectancy v <- p*(1-p)*(R^2+1) # Variance low <- ((3*v) / (2*E))^2 / v # lowest point (3 standard deviations confidence) pos <- (9*v)/E^2 # (3 standard deviations confidence) curve((b+E*x), from=0, to=1000, col='black', ylim=c(-20, 300)) curve((b+E*x+3*sqrt(v*x)), from=0, to=1000, col='black', add=T) curve((b+E*x-3*sqrt(v*x)), from=0, to=1000, col='black', add=T) abline(h=b, col='darkgreen') abline(h=0, col='red') abline(v=low, col='blue') abline(v=pos, col='darkgreen')
No greed. No fear. Just maths.
- #33
- Dec 29, 2016 11:04am Dec 29, 2016 11:04am
- Joined Aug 2010 | Status: Stare Into the Lights My Pretties! | 795 Posts
Regarding the % risk per trade, based on my research, the optimal solution (especially for discretionary trading) is this:
1. First given that you know what can be expected from your strategy(roughly), you have to estimate the average expected drawdown based on fixed** risk per trade. Lets call this measure "D" (you can think of "D" as one standard deviation of your expected risk)
** By fixed risk I mean for example you can chose to risk 10 currency units per 1000 account units.
2. Second, you keep trading with the same fixed risk, and you only increase the risk (the trade size) when the account balance (or the equity) is above the starting balance for each period + D * x
the parameter "x" can be any number ( 0,5 1, 2, 3) and this will determine how conservative you want to play. (bigger "x" = more conservative).
The idea is to eliminate the variability, on a trade by trade basis and to only increase( or to decrease) trade size by steps, based on large samples of trades.
To put it simple, If you are profitable after N trades(you can also add time component) - then you increase trade size. The main benefit from this is that it helps your recovery rate during drawdown. (if you lose 10%, you no longer have to make 11.1% to get back to BE) Well, technically you do have to make 11,1% to BE, but the average time needed to recover is faster then if you use %risk per trade.
For the downside, if the balance is down by D*x then you reduce the unit risk to the previous level.

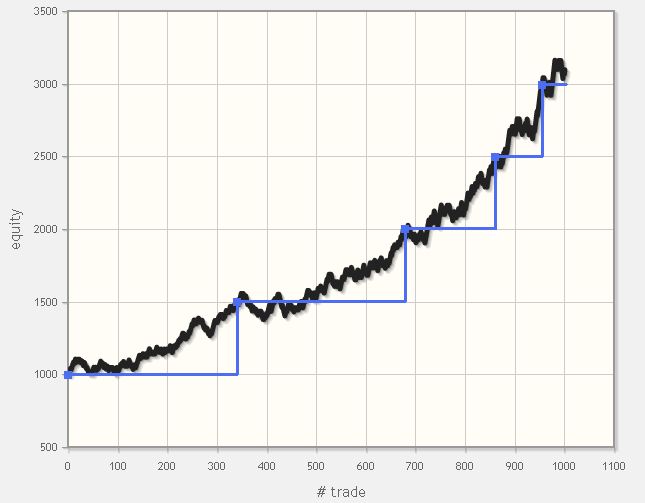

The chart for the trade size will look like staircase.
Here is one example where the main conditions is that we increase the trade size for every 500 units of profit. The black line is the equity, the blue is trade size.
The main downside with this approach is that if your system is prone to deep drawdowns, you will have to use larger "x" or smaller unit risk per trade in order to avoid total account loss. And this may reduce the long term gains. (it reduces the speed of compounding)
---------------------------------------------
While mathematically this approach is not the optimal solution, and theoretically using % risk per trade may seem like a better deal, in the real world it's not.
1. First given that you know what can be expected from your strategy(roughly), you have to estimate the average expected drawdown based on fixed** risk per trade. Lets call this measure "D" (you can think of "D" as one standard deviation of your expected risk)
** By fixed risk I mean for example you can chose to risk 10 currency units per 1000 account units.
2. Second, you keep trading with the same fixed risk, and you only increase the risk (the trade size) when the account balance (or the equity) is above the starting balance for each period + D * x
the parameter "x" can be any number ( 0,5 1, 2, 3) and this will determine how conservative you want to play. (bigger "x" = more conservative).
The idea is to eliminate the variability, on a trade by trade basis and to only increase( or to decrease) trade size by steps, based on large samples of trades.
To put it simple, If you are profitable after N trades(you can also add time component) - then you increase trade size. The main benefit from this is that it helps your recovery rate during drawdown. (if you lose 10%, you no longer have to make 11.1% to get back to BE) Well, technically you do have to make 11,1% to BE, but the average time needed to recover is faster then if you use %risk per trade.
For the downside, if the balance is down by D*x then you reduce the unit risk to the previous level.
The chart for the trade size will look like staircase.
Here is one example where the main conditions is that we increase the trade size for every 500 units of profit. The black line is the equity, the blue is trade size.
The main downside with this approach is that if your system is prone to deep drawdowns, you will have to use larger "x" or smaller unit risk per trade in order to avoid total account loss. And this may reduce the long term gains. (it reduces the speed of compounding)
---------------------------------------------
While mathematically this approach is not the optimal solution, and theoretically using % risk per trade may seem like a better deal, in the real world it's not.
- #35
- Edited 3:31pm Dec 29, 2016 2:29pm | Edited 3:31pm
{quote} You search x such that this is greater than or equal to one (boost or at least no drag). (1+x)(1-x) >= 1
A question about your starting formula: It looks like the (1+x) is simply a representation of percent gain and (1-x) would be a percent loss from a starting account of 100%? By multiplying them together (1+x)(1-x) it appears to be the compound interest formula taught in many finance courses. So on the right side of the formula, the >= 1: the 1 represents 100% of starting account?
1-x^2 >= 1 -x^2 >= 0 Obviously no boost is going to happen since x^2 is non negative.
The optimal x is no trading (0%) to get no negative drag!

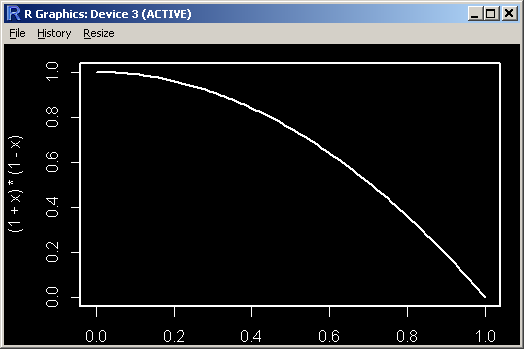

Inserted Code
curve((1+x)*(1-x))
{quote} Therefore the bet size shall change from one trade to the other. But since your (non-)edge doesn't change is it sensible?
Here I distinguish the win-loss and the loss-win cases because after the first trade we can decide to change the risk.
y <= 1 - 1/(1+x) You can plot the functions x and 1 - 1/(1+x) to convince yourself that y is always less than x. After a winner you need to preserve the gain.
Inserted Code
curve( 1 - 1/(1+x) )
For the second case: (1-x)(1+z) >= 1 1+z >= 1/(1-x) z >= 1/(1-x) - 1 Again you can plot 1/(1-x) - 1 to convince yourself it is above x. You have to increase after a loser to recoup the loss. So the answer is YES... if you dare entering the land of Lord Martin Gale....
Inserted Code
curve(1/(1-x) - 1)
The last 3 numbers in the sequence are: (eek!)
Inserted Code
[99] 49.00000000 99.00000000 Inf
Inserted Code
[50] 0.96078431 1.00000000 1.04081633
Also, regarding the Bernoulli trials post, you effectively demonstrated something that I had noticed in my simulations with equity curves. Your conclusions are a bit depressing but really sum up as drawdown is a fact of life and may last a long time even with a good positive edge. Very nice and a lot to think about!
- #36
- Edited Dec 30, 2016 7:50am Dec 29, 2016 7:08pm | Edited Dec 30, 2016 7:50am
- | Commercial User | Joined Apr 2013 | 4,366 Posts
Just pushed some of the expectancy code I wrote a while back (with some updates) to the Git repository.
The key take away is that systems the lower than 50% expectancy can still be profitable provider the reward or pay-off is sufficient.
The Read me file is as follows:
Expectancy Dynamics
First released in @PipMeUp's expectancy management thread this scripts explore the dynamics of various and levels of expectancy.
Model Constraints and assumptions
Outputs are stored in a sub folder called "output". The BASH runner script will archive existing non-empty output folders.
Windows or R GUI
On Windows you can execute the script either from with in the R GUI or R Studio by sourcing the file, for example:
You will have to managed the outputs yourself.
Outputs
There are 5 outputs from each simulation run:

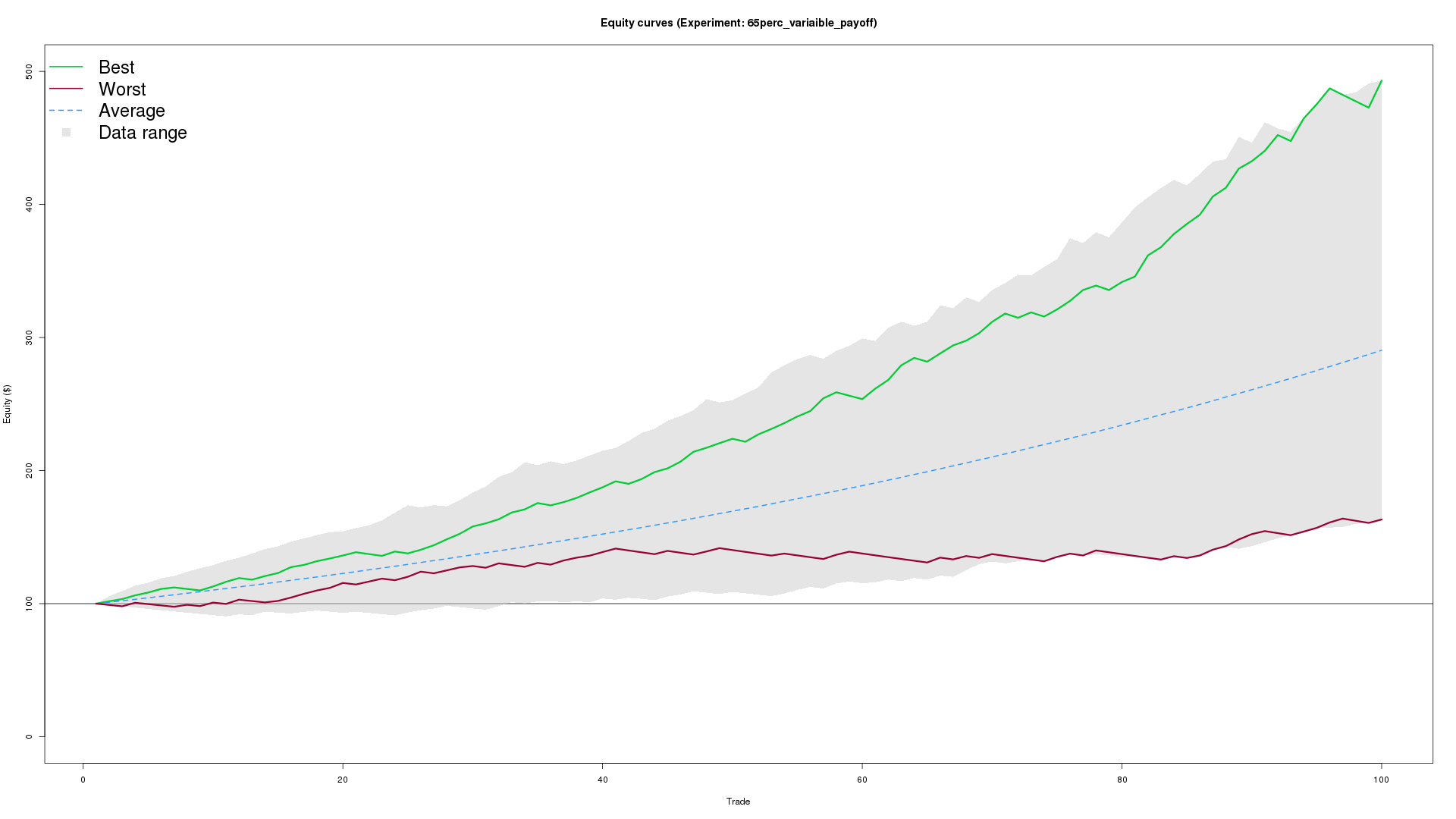

The plume plot shows the range of all the equity curves generated by the simulation (the grey plume in the plots background. The green and dark red lines represent the best and worst curves generated by the simulation. The dashed blue line represents average equity curve for all simulation runs. Positive growth the average line is a good thing.

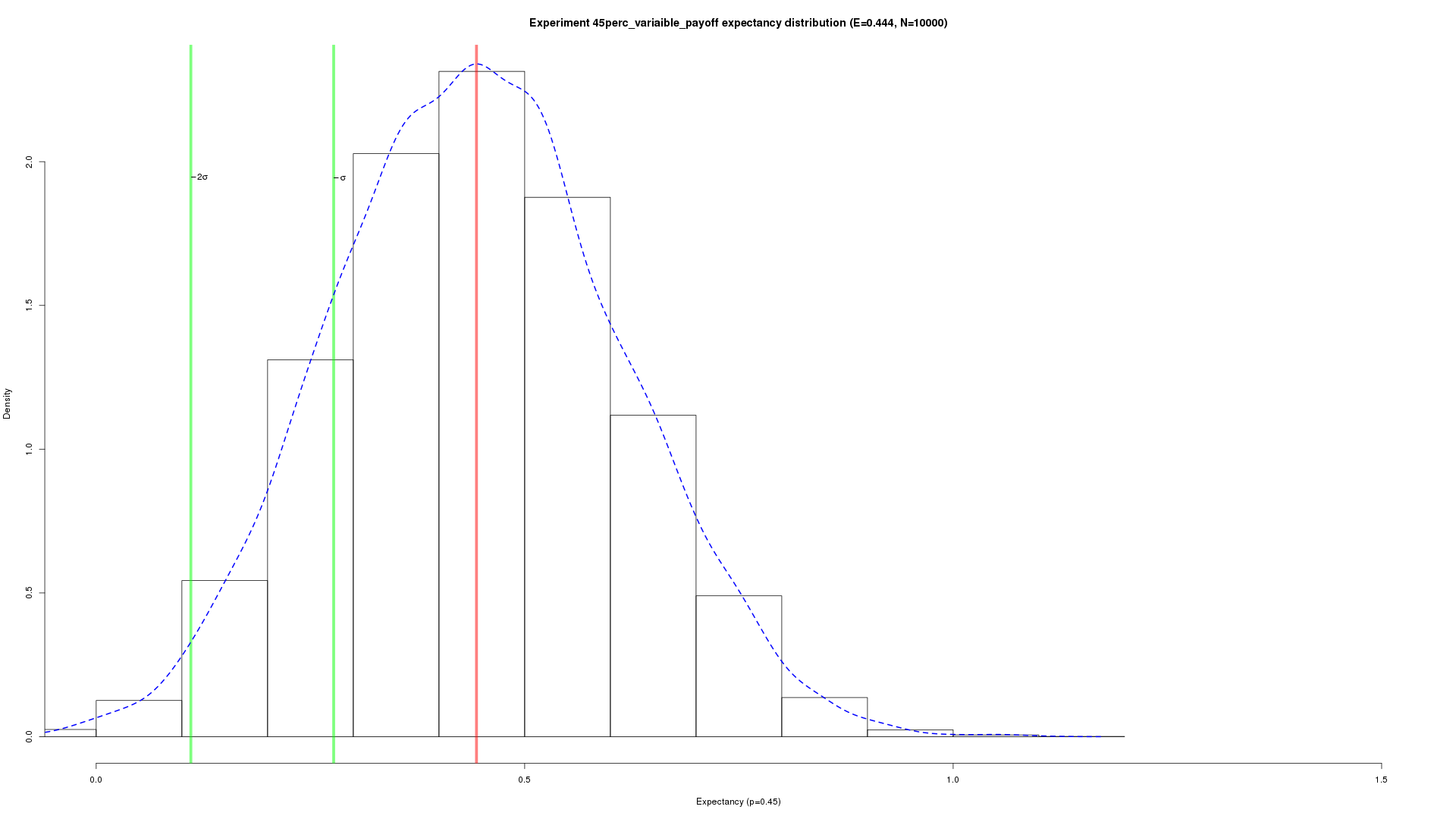

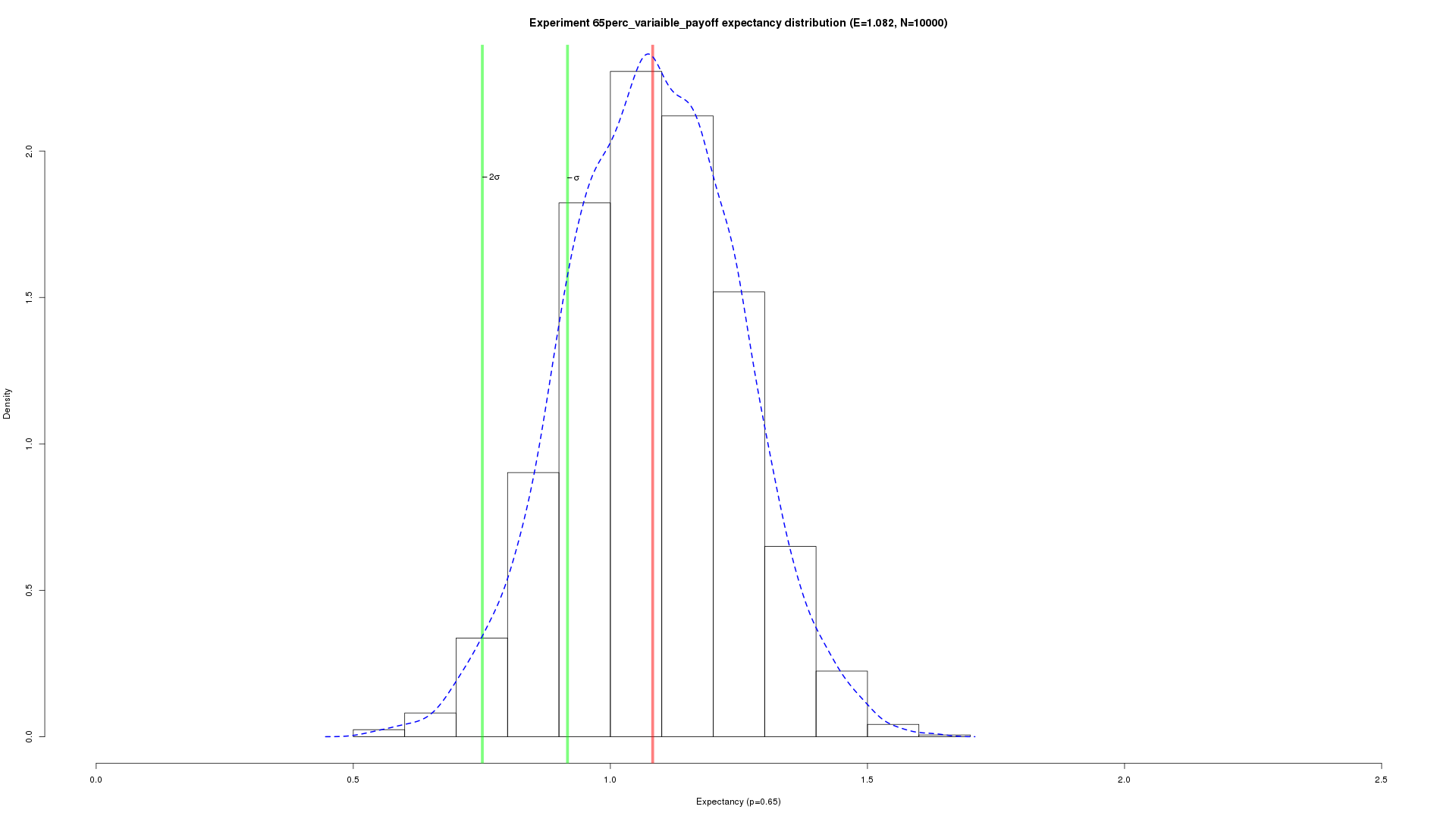

Expectancy histogram
Derived from the simulations the histogram shows the variance in the expectancy across all the simulations. The vertical green lines denote 1 and 2 standard deviations less than the mean. The help illustrate that with sufficient pay-off systems with expectancy rates bellow 51% have the potential to be profitable (specifically if 2 standard deviations below the mean is still positive).
The data in this plot can found in the "experiment_name"_expectancies.csv file.

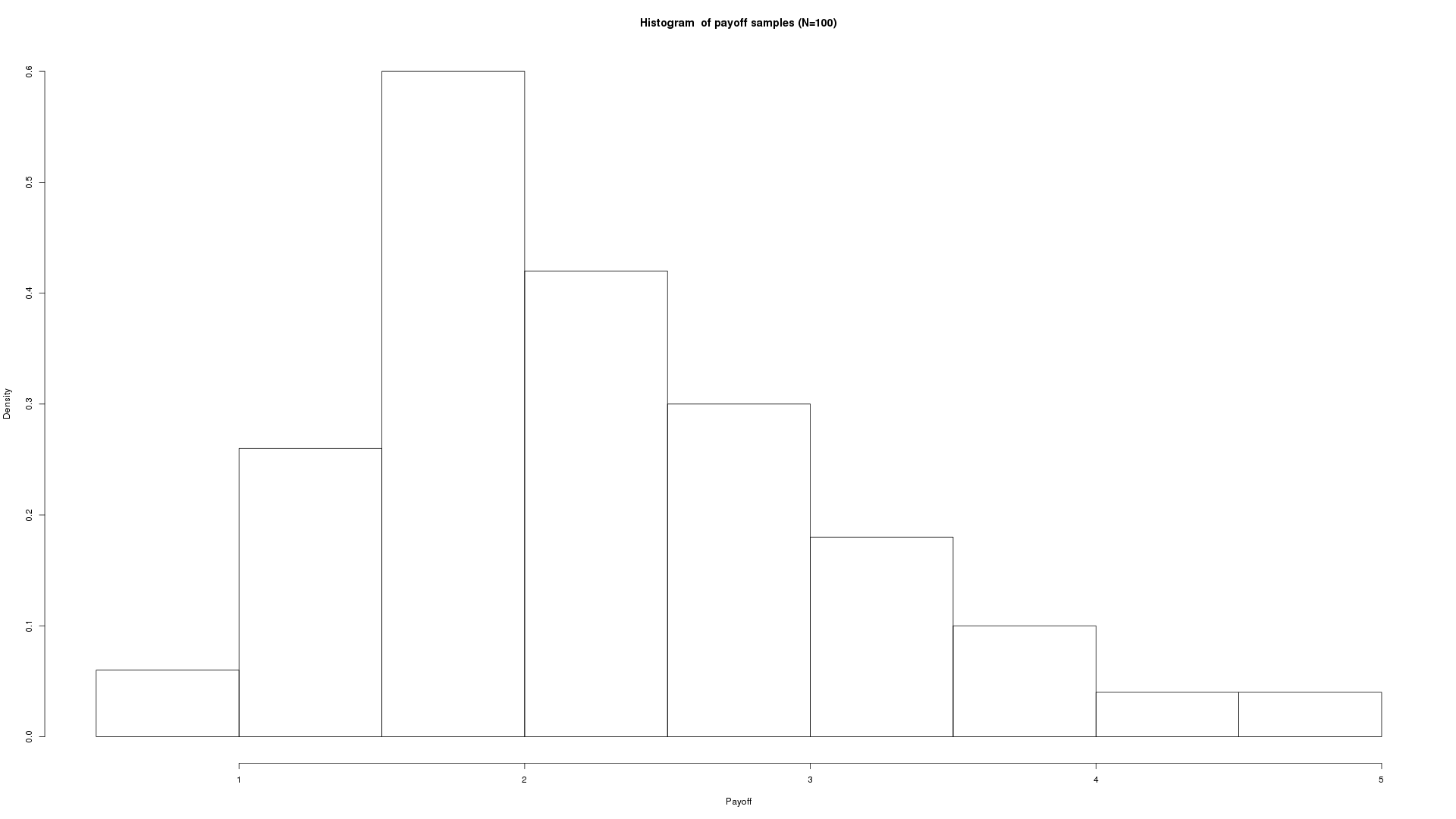

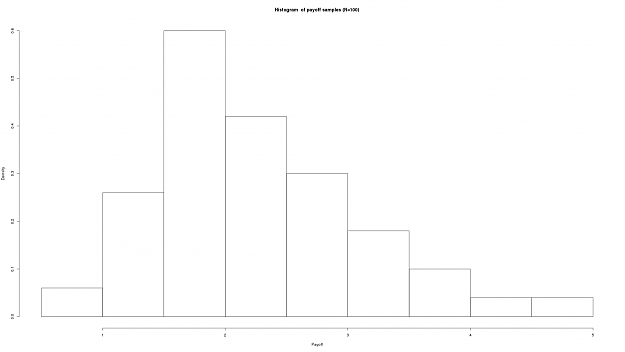

Sample pay-off histogram
The generated sample of the potential payoffs used for each of trade in the simulation run. Presented as a diagnostic tool to verify we had the desired distribution in pay-offs.
The R Script:
The key take away is that systems the lower than 50% expectancy can still be profitable provider the reward or pay-off is sufficient.
The Read me file is as follows:
Expectancy Dynamics
First released in @PipMeUp's expectancy management thread this scripts explore the dynamics of various and levels of expectancy.
Model Constraints and assumptions
- Risk is fixed.
- Reward is variable.
- Each trade is independent of the trade before it.
The risk is set at 1% by default but the actual size of the risk used in proactive will only affect the gradient of the equity curves and not the overall dynamics.
The variable reward, or payoff, is simulated by sampling from the a distribution generated from minimum, maximum and mean values supplied to the simulation function. Its assumed that the pay off is normally distributed with a skew to towards smaller than larger payoffs e.g. you won't pull large winners consistently but they do happen. It also can be considered an low-fi way to model trailing stops, targets that are set by arbitrary goals e.g. 2 times risk, and trades that get cut because they are wrong (or have demonstrated good reasons to stop).
The final assumption that the trades are independent of each does disregard trader psychology but simplifies the modelling and keeps us focused on the task at hand - exploring the impact of expectancy and risk/reward payoff on the equity curve.
Short-coming
The model doesn't stop trading if equity goes negative - this keeps the code simpler and helps to illustrate the equity curve dynamics better in the plume plot.
The modelling does NOT take into account transaction fees.
Running the script
Linux or BASH console
On Linux simply execute the run script:
Inserted Code
$ ./run.sh
Windows or R GUI
On Windows you can execute the script either from with in the R GUI or R Studio by sourcing the file, for example:
Inserted Code
> source('C:\\Scripts\\QuantitativeResearch\\Expectancy\\expectancy.R') Outputs
There are 5 outputs from each simulation run:
- equity curve plume plot
- histogram of expectancy values across the simulated trades.
- histogram of the pay off distribution
- a CSV file of the data behind the plume plot
- a CSV file of the expectancy values for each simulation step.
Equity curve plume plot
The plume plot shows the range of all the equity curves generated by the simulation (the grey plume in the plots background. The green and dark red lines represent the best and worst curves generated by the simulation. The dashed blue line represents average equity curve for all simulation runs. Positive growth the average line is a good thing.
Expectancy histogram
Derived from the simulations the histogram shows the variance in the expectancy across all the simulations. The vertical green lines denote 1 and 2 standard deviations less than the mean. The help illustrate that with sufficient pay-off systems with expectancy rates bellow 51% have the potential to be profitable (specifically if 2 standard deviations below the mean is still positive).
The data in this plot can found in the "experiment_name"_expectancies.csv file.
Sample pay-off histogram
The generated sample of the potential payoffs used for each of trade in the simulation run. Presented as a diagnostic tool to verify we had the desired distribution in pay-offs.
The R Script:
Inserted Code
expectancy <- function(p, reward=1, risk=1, numTrades=100) {
outcomes <- runif(numTrades, min=0, max=1)
winners <- outcomes <= p
losers <- outcomes > p
structure(
(sum(winners*reward) - sum(losers*risk))/numTrades,
data=data.frame(
pr.win= p,
outcomes.pr=outcomes,
outcome=outcomes <= p,
pay.off = reward,
risk = risk
),
class='expectancyAnalysis'
)
}
expectancyMC <- function(
p, payoff.range=c(0.1, 10), payoff.mean=2, payoff.probs=NA, risk=1,
numTrades=100, numSimulations=10000
) {
payoffs <- seq(payoff.range[1], payoff.range[2], 0.1)
if (is.na(payoff.probs)) {
payoff.probs <- c(
dnorm(payoffs[payoffs < payoff.mean],payoff.mean,payoff.mean/4.0),
dnorm(payoffs[payoffs >= payoff.mean],payoff.mean,payoff.mean/2.0)
)
}
result <- sapply(
1:numSimulations,
function(x) expectancy(
p, sample(payoffs, numTrades, T, payoff.probs), risk, numTrades),
simplify=FALSE
)
attr(result, "payoffs") <- payoffs
attr(result, "payoff.probs") <- payoff.probs
result
}
expectationAnalysis <- function(
experimentName, prWin, numTrades,
payoff.range, payoff.mean,
risk=1, openingBalance=100, simulations=100000, outputPath="~/tmp",
saveEquityCurves=F, doEquityCurveAnalysis=T
) {
result <- expectancyMC(p=prWin, payoff.range=payoff.range, payoff.mean=payoff.mean, risk=risk, numTrades=numTrades, numSimulations=simulations)
# Mean expectation from the simulations
theExps <- as.numeric(result)
meanExp <- mean(theExps)
cat("Mean expectancy is: ", meanExp, "\n")
if (doEquityCurveAnalysis) {
# Calculate equity curves
# Assumption that risk express a percentage of capital e.g. risk = 1 implies each trade risk 1% etc.
equityCurves <- sapply(
result,
function(x) {
data <- attr(x, 'data')
balances <- c(openingBalance)
for (idx in 2:nrow(data)) {
if ( balances[idx-1] <= 0 ) {
newBalance <- 0
} else {
newBalance <- ifelse(data$outcome[idx-1],
balances[idx-1]*(1 + data$pay.off[idx-1]/100),
balances[idx-1]*(1 - data$risk[idx-1]/100))
}
balances <- c(balances, newBalance)
}
balances
}
)
# Plot equity curves
col.best <- rgb(0, 204/255, 51/255)
col.average <- rgb(51/255, 153/255, 1)
col.worst <-rgb(154/255, 0, 51/255)
col.plume <- rgb(0.8, 0.8, 0.8, .5)
png(
paste(outputPath, paste(experimentName, "_equitycurves.png", sep=''), sep='/'),
width=1920, height=1080
)
best <- which(equityCurves[100,] == max(equityCurves[100,]))[1]
worst <- which(equityCurves[100,] == min(equityCurves[100,]))[1]
plot(
x=c(1, numTrades), y=range(c(0, pretty(equityCurves))), type='n',
main=paste("Equity curves (Experiment: ", experimentName, ")", sep=""),
xlab='Trade', ylab='Equity ($)'
)
abline(h=openingBalance, lwd=1, col='black')
lower <- apply(equityCurves, 1, min)
upper <- apply(equityCurves, 1, max)
polygon(c(1:numTrades, numTrades:1), c(lower, rev(upper)), col=col.plume, border=NA)
lines(x=1:numTrades, y=equityCurves[, best], lwd=3, col=col.best)
lines(x=1:numTrades, y=apply(equityCurves, 1, mean), lwd=2, lty=2, col=col.average)
lines(x=1:numTrades, y=equityCurves[, worst], lwd=3, col=col.worst)
leg1 <- legend(
"topleft",
c("Best", "Worst", "Average", "Data range"),
col=c(col.best, col.worst, col.average, col.plume), bty='n', lty=c(1,1,2,1), lwd=c(2,2,2,0),
pch=c(NA,NA,NA, 15), cex=2, pt.cex=2
)
dev.off()
# Save equity curves?
if (saveEquityCurves) {
write.csv(equityCurves, paste(outputPath, paste(experimentName, "_equitycurves.csv", sep=''), sep='/'))
}
}
# Plot expectation results
sdExp <- sd(theExps)
png(
paste(outputPath, paste(experimentName, "_expectancy_hist.png", sep=''), sep='/'),
width=1920, height=1080
)
expDensity <- density(theExps)
xmax <- max(expDensity$x)
hist(theExps, prob=T, xlab=sprintf("Expectancy (p=%3.2f)",prWin),
main=sprintf("Experiment %s expectancy distribution (E=%3.3f, N=%d)", experimentName, meanExp, simulations),
pty='m', xlim = c(0, round(xmax) + sign(xmax) * 0.5)
)
abline(v=meanExp, lty=1, lwd=5, lend=1, col=rgb(1,0,0,0.5))
abline(v=meanExp-c(1:2)*sdExp, lwd=5, lend=1, col=rgb(0,1,0,0.5))
lines(expDensity, lty=2, lwd=2, col='blue')
text(
meanExp-c(1:2)*sdExp, par()$usr[4] *.8,
c(expression(-sigma), expression(-2*sigma)), adj=c(0,-.6)
)
dev.off()
# Save the expectancies
write.csv(theExps, paste(outputPath, paste(experimentName, "_expectancies.csv", sep=''), sep='/'))
# Plot a histogram of pay off probabilties
png(
paste(outputPath, paste(experimentName, "_payoff_hist.png", sep=''), sep='/'),
width=1920, height=1080
)
hist(
sample(attr(result, "payoffs"), numTrades, T, attr(result, "payoff.probs")),
prob=T, xlab = "Payoff",
main=paste("Histogram of payoff samples (N=", numTrades, ")", sep="")
)
dev.off()
}
# Close any open graphical devices (useful for script runtime errors etc).
while (! is.null(dev.list()) ) dev.off()
outputPath <- "./output"
for (prWin in seq(0.25, 0.90, 0.05)) {
cat("Pr(win) =", prWin, "\n")
result <- expectationAnalysis(
experimentName=sprintf("%dperc_variaible_payoff", as.integer(prWin*100)),
prWin=prWin, numTrades=100,
payoff.range=c(0.1,10), payoff.mean=2,
risk=1, openingBalance=100, simulations=10000, outputPath=outputPath,
saveEquityCurves=T, doEquityCurveAnalysis=T
)
}
The following charts demonstrate the for a 45% expectancy a system attain sufficient average reward/pay-off is still profitable (neglecting transnational costs).
The equity curves from the simulation:
The histogram of the expectancy form 10000 simulations runs of 100 trades each (e.g 1 million simulated trade in total):
As you can see 2 (estimated) standard deviations from the (estimated) mean the expectancy is still positive (although not by very much ... especially if transaction costs are thrown into the mix!).
9047.
The equity curves from the simulation:
The histogram of the expectancy form 10000 simulations runs of 100 trades each (e.g 1 million simulated trade in total):
As you can see 2 (estimated) standard deviations from the (estimated) mean the expectancy is still positive (although not by very much ... especially if transaction costs are thrown into the mix!).
9047.
