Daily Boxes/Lines indicator

  • #221
  • Oct 9, 2015 8:16am Oct 9, 2015 8:16am
Quoting PaktamFX
Hi, Hanover. Can you help me if I want to add 2 new line 10 pips top from high and 10 pips below low like picture... new add line was in pink color. And if you can add also alert when price touch that new line.
You could try setting ClearancePips to 10. I am sorry, but the indicator is not able to generate alerts, and I'm no longer doing MT4 coding. Your best bet might be to have somebody write a new indicator. Try posting in one of the 'I code your indicators for free' threads, or if you're willing to pay, try mql or elance.
  • #222
  • Oct 9, 2015 10:15am Oct 9, 2015 10:15am
Quoting hanover
{quote} You could try setting ClearancePips to 10. I am sorry, but the indicator is not able to generate alerts, and I'm no longer doing MT4 coding. Your best bet might be to have somebody write a new indicator. Try posting in one of the 'I code your indicators for free' threads, or if you're willing to pay, try mql or elance.
ok. thanks Hanover.
  • #223
  • Oct 18, 2015 5:01am Oct 18, 2015 5:01am
Attached Image (click to enlarge)
Click to Enlarge Name: -5db9fccc23355bd8.png Size: 35 KB
Attached Image (click to enlarge)
Click to Enlarge Name: -7f85400f727946c0.png Size: 17 KB

Hi,i am a new comer,can you tell me what is this and how to use？thank you very much.
  • #224
  • Oct 18, 2015 6:50pm Oct 18, 2015 6:50pm
Quoting jimmyleung
{image}{image} Hi,i am a new comer,can you tell me what is this and how to use？thank you very much.
Sorry, I have never seen this before.
  • #225
  • Oct 18, 2015 9:19pm Oct 18, 2015 9:19pm
Quoting jimmyleung
{image}{image} Hi,i am a new comer,can you tell me what is this and how to use？thank you very much.
How should we know? It's your chart; what is the name of the indicator on there, or did you draw those pretty color lines with arrow plus the boxes with some other program, because no real sure exactly what you are asking about...... in other words, please supply more relevant information pertinent to the question.

It takes a lot for me to IGNORE you, but you can try.
  • #226
  • Oct 19, 2015 2:00pm Oct 19, 2015 2:00pm
This is not my chart,I saw it from QQ(like what'sapp),said he do the trade according to those two lines and the box in the corner,I just queries and want to learn more,if I had more detail, will send up again, thankyou.
  • #227
  • Edited 12:54pm Oct 28, 2015 12:39pm | Edited 12:54pm
Hi, fellows.
Hi, Hanover

Below you can find a picture attached.
Green dotted line is the line day begins
I have pictured these blue lines and a box by means of using 2 daily lineboxes indicators (template attached as a example).
However I have not had what I wanted.
I would like to get such a channel that begins from some hours before the current day begins - the upper red line should point at the upper edge of the channel.

Is it possible to plot such a channel, using the indicator?

Is it possible to plot a median between adges of the channel?

Best
D.P.
Attached Image (click to enlarge)
Click to Enlarge Name: 2015-10-28 20_31_48-14031_ WhoTrades-Real2 - [EURUSD.c,M5].png Size: 12 KB
Attached File(s)
File Type: tpl template_example.tpl   4 KB | 515 downloads
Hunting High and Low
  • #228
  • Oct 28, 2015 2:45pm Oct 28, 2015 2:45pm
Quoting Dr.Phoenix
I would like to get such a channel that begins from some hours before the current day begins - the upper red line should point at the upper edge of the channel. Is it possible to plot such a channel, using the indicator? Is it possible to plot a median between adges of the channel?
DP,

There seem to be many versions of this indicator floating around. I have attached the version that I use, and that generated the attached screenshot. Numbered points refer to the numbers in the screenshot.

The white separators represent midnight 00:00 MT4 time. You can set any of StartHours, EndHours or ExtendHours to a negative value, to set them earlier than midnight of the current day (whose value is 0 -- all values are in hours, and are relative to midnight on the current day). Setting StartHours to -5 (see point 3) and EndHours to 0 generates the pattern (1) shown in the screenshot. Including ZZ in Properties (4) extends two horiz lines from the StartHours thru to ExtendHours, while the T truncates the colored box at EndHours. F means a filled box, and 2 sets the width of the lines. All of this is explained in more detail in post #1. Note that you should leave both TextProperties and SymbolProperties blank (5), to avoid text or symbols being plotted. Note that using negative values for StartHours doesn't work perfectly for Monday, since candles are missing over the weekend (2). Please read post #1 and feel welcome to experiment.

It's not possible to plot a median line. Including A in Properties plots a median between the High/Low of the Start Candle only. The indicator is already complex and I don't wish to make it more so.

David
Attached Image (click to enlarge)
Click to Enlarge Name: PPI 063.png Size: 103 KB
Attached File(s)
File Type: ex4 Daily LinesBoxes(1).ex4   72 KB | 718 downloads
  • #229
  • Oct 28, 2015 2:49pm Oct 28, 2015 2:49pm
Quoting hanover
The indicator is already complex and I don't wish to make it more so.
Sorry, but I am no longer coding or troubleshooting indicators, unless it's a really quick job, or the indicator or EA is useful to me personally. You could try posting in one of the "I code your indicators for free" threads, and perhaps somebody else can help you. Or if you're willing to pay for the work, you could try MQL or elance.

I recommend installing the .ex4 file only (see previous post). If you attempt to compile the .mq4 on build 600 or later, you'll likely get errors (more info in this thread). However, I've attached the .mq4 source file in case another programmer wants to update it, and then make your requested enhancements, in which case the code libraries that the indicator uses can be found in this thread (many thanks to pips4life for upgrading them).

Alternatively, the programmer could compile the indicator 'as is' using the build 509 compiler, and the code libraries here.

David
Attached File(s)
File Type: mq4 Daily LinesBoxes(1).mq4   32 KB | 791 downloads
  • #230
  • Oct 29, 2015 10:35am Oct 29, 2015 10:35am
Quoting hanover
{quote} DP, There seem to be many versions of this indicator floating around. I have attached the version that I use, and that generated the attached screenshot. Numbered points refer to the numbers in the screenshot. The white separators represent midnight 00:00 MT4 time. You can set any of StartHours, EndHours or ExtendHours to a negative value, to set them earlier than midnight of the current day (whose value is 0 -- all values are in hours, and are relative to midnight on the current day). Setting StartHours to -5 (see point 3) and EndHours...
Thank you, Hanover, for you kind reply.

Of course I know how to use your indicator as I am using it for a long time.

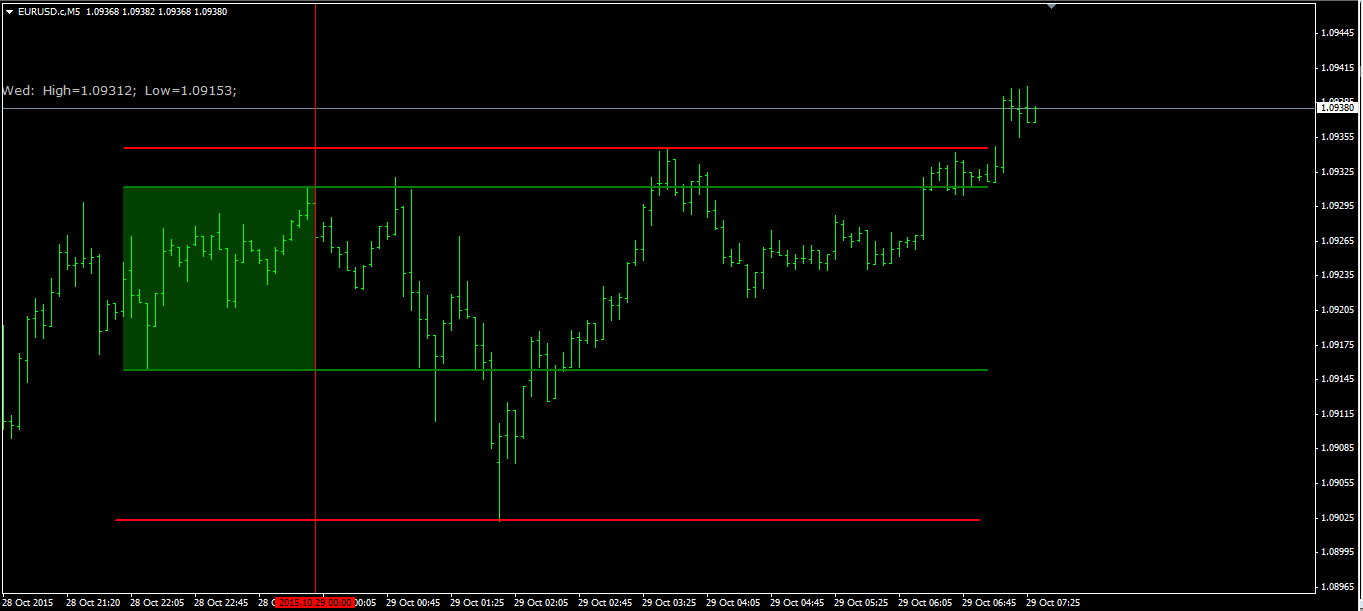

However what you are suggesting is not exactly what I mean. Let me show a today's picture taken in the morning.
Red lines show the channel we should see, green ones are the lines of your indicator's.

Best
D.P.
Attached Image (click to enlarge)
Click to Enlarge Name: EU-291015.PNG Size: 28 KB
Hunting High and Low
  • #231
  • Edited 1:58pm Oct 29, 2015 1:14pm | Edited 1:58pm
Quoting Dr.Phoenix
{quote} Thank you, Hanover, for you kind reply. Of course I know how to use your indicator as I am using it for a long time. However what you are suggesting is not exactly what I mean. Let me show a today's picture taken in the morning. Red lines show the channel we should see, green ones are the lines of your indicator's. Best D.P. {image}
If Properties = Z then horizontal lines are plotted at the highest and lowest prices between StartHours and EndHours (and then the lines are extended to ExtendHours). Therefore:

 The green lines in your screenshot are plotted if Start/End/Extend Hours are set to the time values (hours relative to MT4 midnight) shown in green.

 The red lines will be plotted if Start/End/Extend Hours are set to the time values (hours relative to MT4 midnight) shown in red. (if you don't want the lines extended, simply make ExtendHours the same value as EndHours).

If you don't want the green box to show, set Properties to Z2 instead of FTZ2

That is as much as the indicator is capable of doing. (Also, it can not plot a median line between the red lines). If you want more, you will need to have a programmer do some work for you.

I am simply repeating what is already written in post #1. So perhaps I don't understand the question that you're asking?
Attached Image (click to enlarge)
Click to Enlarge Name: PPI 064.png Size: 23 KB
  • #232
  • Edited Oct 30, 2015 2:27am Oct 29, 2015 2:20pm | Edited Oct 30, 2015 2:27am
Quoting hanover
If you want more, you will need to have a programmer do some work for you. I am simply repeating what is already written in post #1. So perhaps I don't understand the question that you're asking? {image}
No, Hanover, you understand me well enough. So do I.
Thank you for your replies.

The matter is that your indicator does not make what I want.
The only thing I can make with your indicator is to plot channel without the TRUNCATED green box included (see the pictures below).

The conficuration of the first picture is FZ2;
The conficuration of the second picture is Z2;
Both of the variants are acceptable.

Best
D.P.
Attached Images
Hunting High and Low
  • #233
  • Dec 3, 2015 9:53am Dec 3, 2015 9:53am
Mr. Hanover, thanks to the very useful indicator !

Tks

Sorte
  • #234
  • Dec 21, 2015 5:22pm Dec 21, 2015 5:22pm
Hi Mr Hanover,

Thank you very much for this indicator it works perfectly. I just wanted to know is there a way to label the Open price of the starthour near the line or in the Text properties?

Thanks again
  • #235
  • Dec 21, 2015 8:00pm Dec 21, 2015 8:00pm
Quoting nevadra
is there a way to label the Open price of the starthour near the line or in the Text properties?
This is not currently possible. Sorry, but I have no plans to upgrade the indicator (it is arguably too complex already, let alone without adding even more options), but if another programmer wishes to undertake the work, the source code and relevant info is attached to post #229.
  • #236
  • Dec 22, 2015 7:57am Dec 22, 2015 7:57am
Mr. Hanover,

Thank you for the response.
  • #237
  • Edited Dec 24, 2015 10:27am Dec 23, 2015 6:48pm | Edited Dec 24, 2015 10:27am
Quoting nevadra
Thank you for the response.........
Changed my mind, since this is a simple enough addition to the TextProperties.
See post #1 for instructions and download (new material is highlighted in red typeface).
Attached Image (click to enlarge)
Click to Enlarge Name: PPI 003.png Size: 96 KB
  • #238
  • Dec 29, 2015 9:54am Dec 29, 2015 9:54am
Thank you Mr Hanover,

I appreciate you for taking the time to make the adjustment for me.

Thanks again
  • #239
  • Dec 29, 2015 10:02am Dec 29, 2015 10:02am
Mr Hanover, one question.

Start, End, EXtend (SEX), how does that correlate to Open, High, Low?
  • #240
  • Dec 29, 2015 10:08am Dec 29, 2015 10:08am
Mr Hanover,

Disregard the above question I answered for myself.

Thanks again
