THV system, final edition

should i repeat my question or was it overlooked by purpose ?
Sorry for sarcasm..

I noticed today, if you trade €/$ and have a look at €/Y from time to time
you can better estimate the €/$ development, in junction with Pivots. They are different but when you dont know what the €/$ PA will do now,
i had a look at the €/Y and saw, ok now Y touches the pivot and it falls back, so stay long in the € against $, and at the same time €/$ was somewhere in the middle of two pivs.. and € climbed.

Is that possible or i deceive me

Does someone trades like that..
Worked today..

yea but not all the time

I've just signed up for a free email account. Really appreciate your post.

Not a problem, its a good free email service which works well with MT4 email options, I love how it sends sms alerts to my phone also.

hi all from italy
i have an little problem

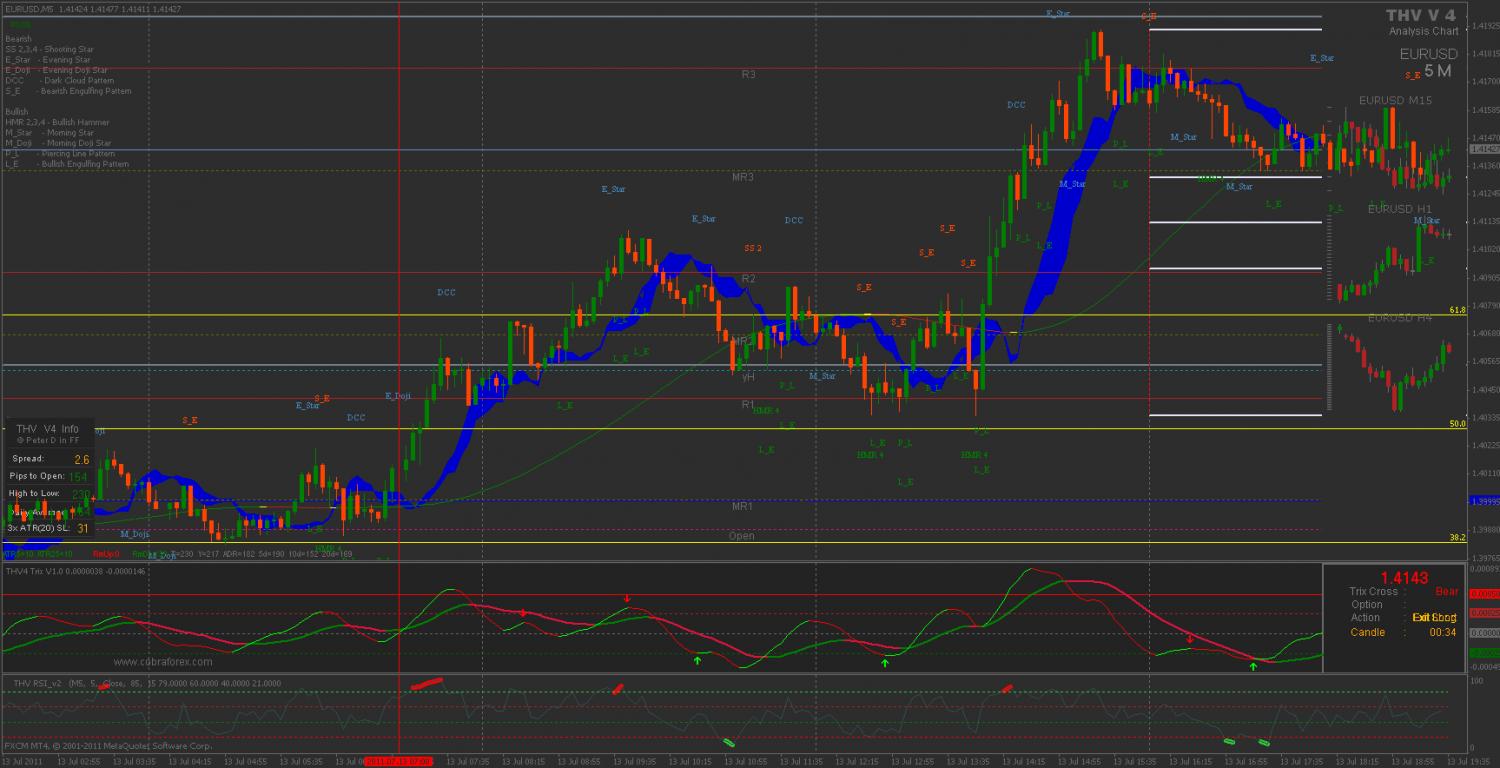

i dont undestand the use THV4 RSI indicator.
does it show divergence?
red bearish/green bullish...tf i preffer 1h or 4htf.

thank for replay

can some one tell me how to setup the THV V3 news indicator?
when i add it to my screen

it just says:

3847 days 3 hrs 47 minutes since: EUR: Bank stress test result

and thats all i see..
is there something wrong here or am i missing something?

thanks.

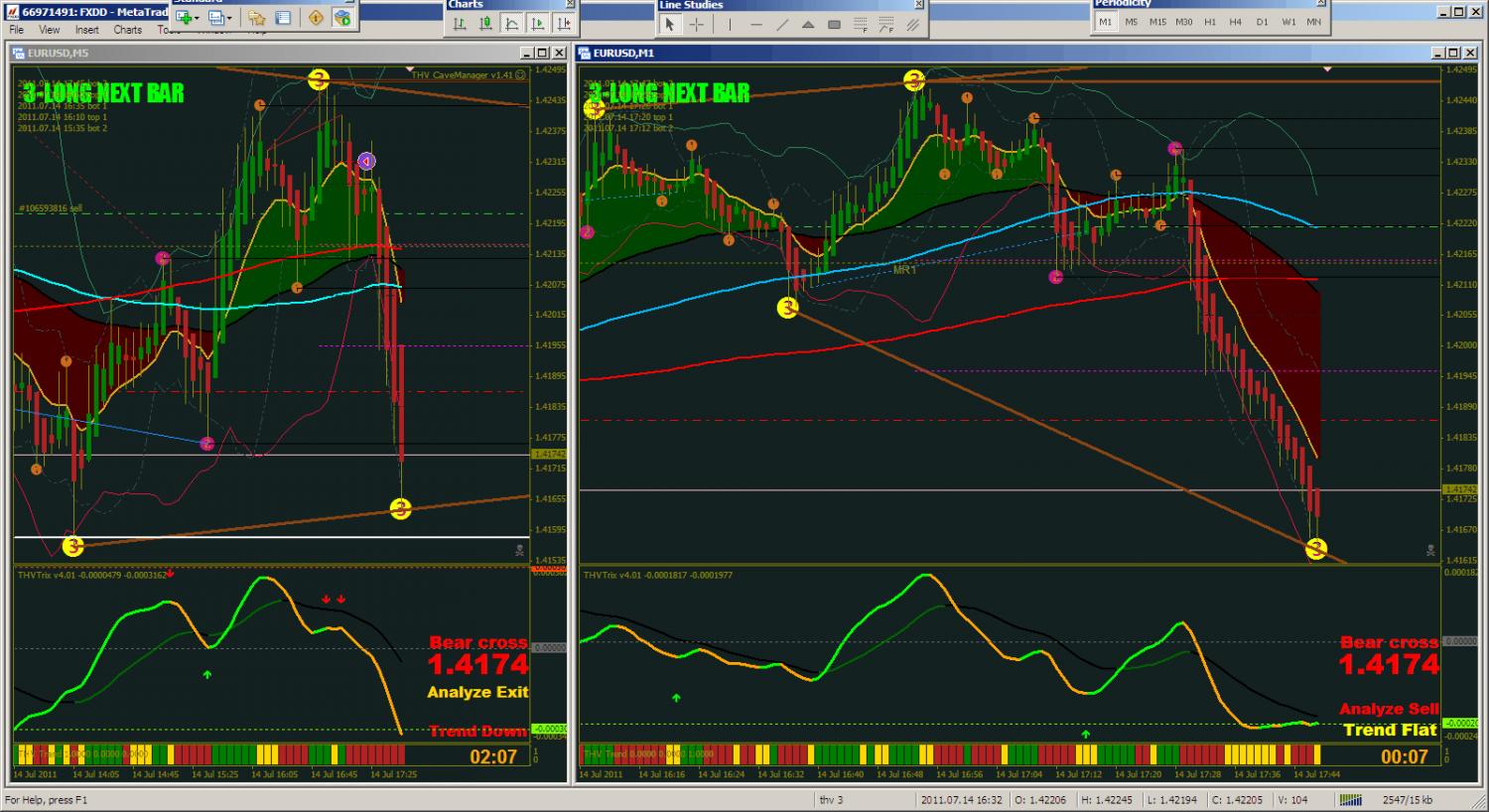

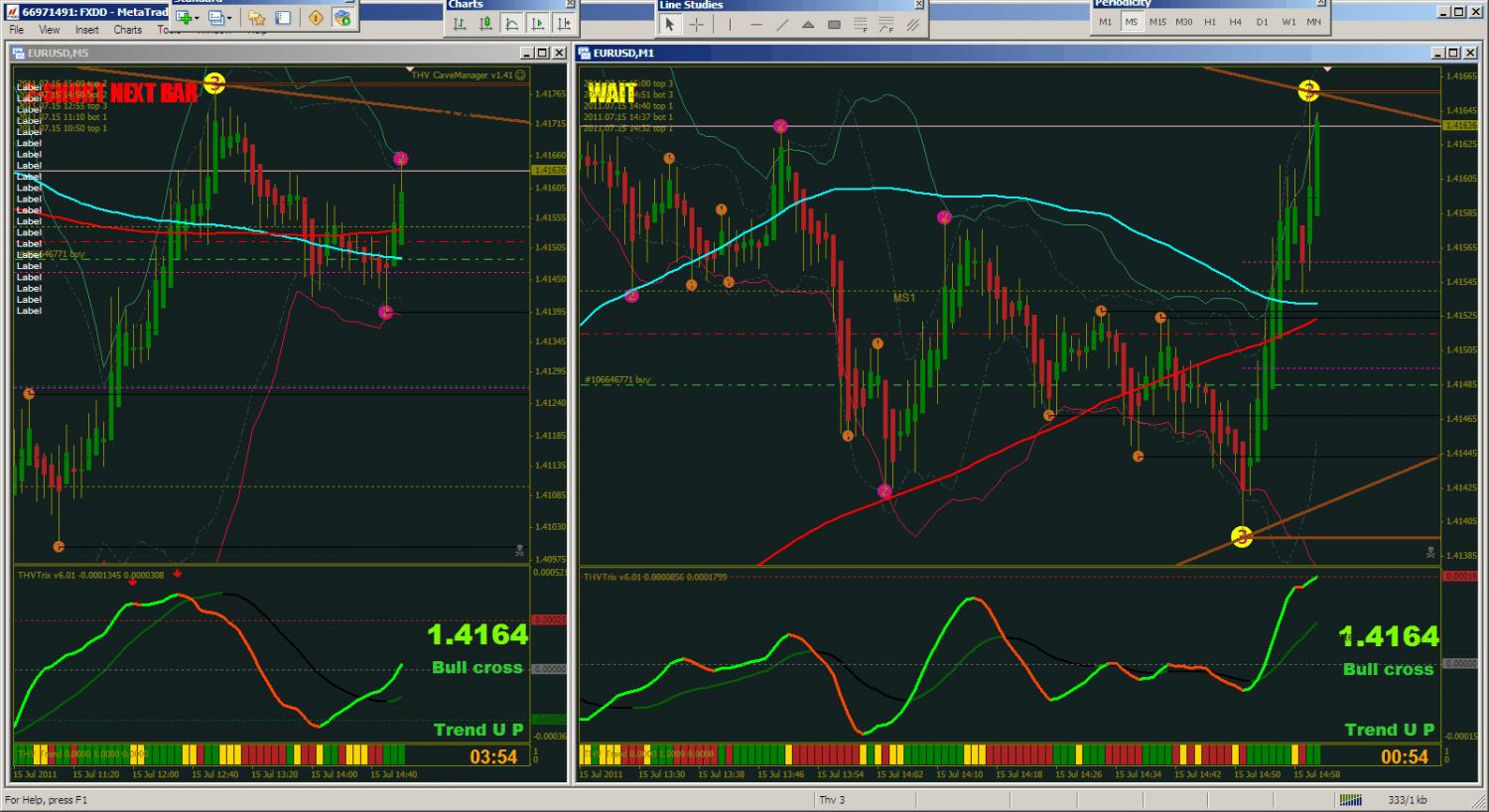

50+ pips! I trade in the direction of the 5 min trix, making entires on 1 min trix.

Ran up nicely, 10 pips in bag

Great stuff bgb.
I used to trade a similar strategy but now looking at the 5 min owing to too many false entries on the 1 min.
Hope to post a few charts soon.

can somebody upload their whole set of indicators and template?
the one i downloaded from post 1 and post 2 is confusing,

and doesnt work on my MT4 (build 402)
it also does not look anything similar to the manual for THV V3...

MissPips,
Could you kindly clarify how to go about setting up the SAH with the Mode settings.
Say, I'm on the 5 Min chart and I decided to use one of the Mode settings and I'd also like to incorporate the Chop Histo, how would I go about doing this?

As the Mode settings ignore the eperiod please demonstrate what would be affected in the SAH
Thanx.

If you want to use the chop histo you have to use mode 1. That is the only mode that allows you to see other indicators besides the trix and mix other indicators together with the trix. The other modes just autoconfigure various combinations of the trix as described below automatically for the two higher tfs relative to the chart you are on. These modes are preset - you cant add the chop histo to them.

Mode 2
======
Mode 2 ignores eperiod type and sets all tfs to demi classic mode (fast trix above/below slow and above/below zero, but may have changed color against the trade.
Mode 3
======
Mode 3 ignores all ePeriod types and sets all selected tfs to classic (fast trix/above below slow and still in direction of the trade and above/below zero)
Mode 4
======
Mode 4 ignores all ePeriod types and sets all selected tfs to semiclassic (fast trix/above below slow and still in direction of the trade but not necessarily above/below zero)

However, in the latest versions I did add a feature that will autoconfigure the timeframe for you for the other indicators in mode 1.

For example, if you enter the tf as -1 when you are on a 1m chart you will see the 5 m chop histo and when you switch to a 5m chart you will see the 15 m chop histo.

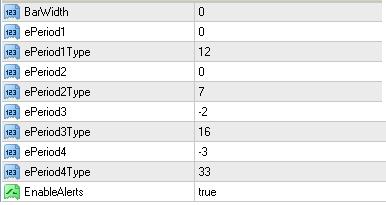

So you can use the following and select the combination of trix/chop that you want.
0 : current tf
- 1 : up one tf
-2 : up two tfs
-3 : up three tfs.


If you use this feature make sure you have the history for the relevant tfs already downloaded or your mt4 may hang while it tries to download it.

Its a really comprehensive indicator and one doesn't initially appreciate all it can do.
Thanx again for a really awesome indicator and for taking the time to explain it- again!

Because Miss Pips has shared the newest version of her SAH, I will share the settings I am using which I believe will give you a 90% success rate if you use it on the M15 timeframe, EUR/USD only, and don't place trades in the OB or OS areas which you can use the THV trix to determine that. 20 pips TP / 30 pips SL, use the cavemanager to start a trailing SL at 10 pips in profit.

If you have any questions about this post don't ask me, just refer to all Miss Pips posts over the past few weeks and the information is there on how to use the SAH. All you have to do is some reading.

Yes I am using it for the higher TF, I am not sure if it was designed for that but it seems to me to be perfect for it in relation to the EUR/USD only.

Wow, thanks for sharing that. One of the reasons I continue
to publish the SAH is in the hope that it will enable traders
to develop and test better setups, which they will then come forward and
share. However, you are one of the few, if not the only one
who has done so, even though the SaH has been downloaded
hundreds of time and even though I have added many etypes
on request. I was beginning to think that it was not
very useful in helping traders.

Hi All,
Here is a new version of the SAH.

Changes: New etypes 41-44. Also cleaned up the interface a tiny bit and tried to improve the documentation.

If you have a bug to report or questions about something that is not properly explained in the documentation, I will be happy to answer them and I will try to improve the code/documentation for next time. However please do not PM or post me with questions just because the documentation looks too long and complicated to read or because you haven't completed the prerequisites. The reason the documentation is long and there are many prerequisites is because I have added many indicators/options that people have requested, and if I spend my time answering questions that have already been answered then I have less time to do that.

Prerequisites: Please make sure that you have downloaded all the helper indies and history for the timeframes you intend to use or your mt4 version may hang.

In addition, before you ask me any questions about the email not working, please make sure that you can demonstrate that your mt4 is properly configured to send email by showing that a test email is working.


Modes:


Mode 1:
=====
Mode 1 looks at ePeriod Type, which can be the following
types:
Type 0 - slow trix

Type 1 - fast trix

Type 2 - stochs
For type 2 (stochastics) you can set each row to use a different stochastic. Use Stochsignal for row1 , secondstochsignal for
row2, thirdstochsignal for row 3,fourthstochsignal for row 4etc.)

Type 3 - Thv classic mode
(fast trix above slow trix and fast trix above 0 and fast trix green or the opposite for short)

Type 4 - semiclasic (fast trix above/below slow trix i.e trix cross but not necessarily above zero, and fast trix still in
direction of trade)

Type 5 - cloud

Type 6 - HeikenAishi;

Type 7 - TDI (traders dynamic index) + Market sentiment (TDI yellow line) increasing or decreasing for red or green

Type 8 - AboveBelow0 (fast trix above 0 and fast trix green - or the opposite for short)

Type 9 - AboveBelow Tenkan (Price above/below Tenkan) (Uses second cloud settings)

Type 10 -Above/Below Kijjun (Price above/below Kijjun ) (Uses second cloud settings)

Type 11 - Above/Below Tenkan && Kijun"; (Price above/below Tenkan & Kijjun ) (Uses second cloud settings)

Type 12 - Trix Hist (shows whether the distance between the fast and slow trix is increasing or decreasing in the direction
of
the trade)

Type 13 -Coral

Type 14- Divergence - Catches the divergence arrows show by the Trix on the higher timeframes. Note that divergence arrows do
not appear in realtime - it takes a least two bars for the trix to catch it, and it is also not always right. So it's better
to catch it manually yourself, but if you missed it this will give you a heads up.

Type 15 - Both fast and slow trix. Red means both fast and slow trix are red, green means both fast and slow trix are green,
empty means one is grean and the other is red.

Type 16 - The angle of the stochastic signal line. Red means the line is sloping down green means it is sloping up
(regardless of whether there has been a cross or not)
.
Type 17 - Same as type 16 but the signal line is greater than 20 and less than 80.

Type 18 - Chop signal based on the TDI. Red when price is below the TDI 5 period high and low smoothed channel, green when
price is above it, empty when price is inside the channel.

Type 19 - All ThV. Green when price is above coral and cloud and both trix lines are green, red when price is below coral and
cloud and both trix lines are red. However trix does not have to be crossed in the direction of the slope.

Type 20 -All ThV Plus Trix Cross Same as type 19 but in addition trix must be crossed in the direction of the slope.

Type 21 - Green when price is above Coral and Cloud, and Slow Trix is green, Red when price is below Coral and Cloud, and
Slow Trix is red, empty when none of the above

Type 22 - Green when price is above Coral and Cloud, and Fast trix is green, Red when price is below Coral and Cloud, and
Fast trix is red, empty when none of the above.

Type 23 - All Guppy MMAs are sloping the same direction. Green sloping up, red sloping down

Type 24 - All Guppy MMAs are sloping the same direction, and also in order ( i.e, 3 above 5, 5 above 8 etc, or vice versa)

Type 25 - Three specified MAs have crossed and specified stochastics poining in same direction. (Uses MACrossMA1 etc)

Type 26 - Three specified MAs have crossed and are above the Coral.(Uses MACrossMA1 etc)

Type 27 - Fast trix, slow trix and trix histogram all the same color

Type 28 - Treads ADX setup: Green when PlusDI above MinusDI, Plus DI increasing, PlusDI above specified value, ADX above
specified value, ADX increasing or red when vice versa Note that ADX , PlusDI and Minus DI price mode values are as follows:
PRICE_CLOSE 0 Close price.
PRICE_OPEN 1 Open price.
PRICE_HIGH 2 High price.
PRICE_LOW 3 Low price.
PRICE_MEDIAN 4 Median price, (high+low)/2.
PRICE_TYPICAL 5 Typical price, (high+low+close)/3.
PRICE_WEIGHTED 6 Weighted close price, (high+low+close+close)/4
This is different from the MTFADX indie Tread released, which uses the high price for all three by default (an error in my
opinion because it seems to scew things to the positve side, but you can choose what you like). If you dont care whether the
ADX is above a certain value, just that it be increasing set ADXMinVal to 0. Likewise if you don't care if the DI value is
above a particular level, just that it be increasing set DIMinVal to 0.

Type 29 - Ignores whether the ADX is increasing. Just checks whether ADX is above the specified value, whether DI is above
the specified value and whether DI is increasing.

Type 30 - Using the params firstlowertype 30 and firsthigher type30, seccondlowertype20 and secondhighertype30 you can check
whether the PlusDI on a lower tf is higher than PlusDI on a higher tf and MinusDI on a lower tf is lower than MinusDI on a
higher TF and ADX is rising ( and vice versa of course).
Green when PlusDI> PlusDIHTF && MinusDI<MinusDIHTF && PlusDI> PlusDIPrev && ADX >ADXPrev
Red when MinusDI>MinusDIHTF && PlusDI< PlusDIHTF && MinusDI>MinusDIPrev && ADX >ADXPrev

Type 31 4 Mas in order and expanding shows you when the four selected mas are in order and when the distance between the
first and second is expanding (Uses MACrossMA1 etc)

Type 32 -4 Mas in order and narrow- Red when 4 MAs in order, MA1 below MA2, MA2 below MA3,MA3 below MA4 and the distance
between MA1 and MA4 for the
current bar is less than the specified channel. Vice versa for green (Uses MACrossMA1 etc nd ChannelWidth)

Type 33 - 3 MAs in order (instead of four)
Same as type 26 except uses 3 MAs without checking if they are above or below the coral
Red when all MAs in order - MA1 below MA2, MA2 below MA3. Vice versa for green.

Type 34 - 3MAs narrow&expanding
Same as type 33 except also checks if the distance between MA 1 and 3 is less than the value specified in Channel and is
expanding.
Red when all MAs in order, MA1 below MA2, MA2 below MA3,and the distance between MA1 and MA3 for the current bar is less than
the specified channel and the distance between MA1 and MA3 for the current bar is greater than for the previous bar. Vice
versa for green.

Type 35 - DI& min vals
Red when minus DI is above plus DI and greater than DI min val and ADX is greater than ADX min val. Vice versa for green.

Type 36 -3MAs narrow
Same as type 34 but doesnt check if the mas are expanding.
Red when all MAs in order, MA1 below MA2, MA2 below MA3 and the distance between MA1 and MA3 for the current bar is less than
the specified channel. Vice versa for green.

Type 37 - Ha Candles above/below Coral and cloud. Red when HA candles are below both Coral and
cloud, green when HA candles are above both coral and cloud, blank when both conditions are not met.

Type 38 - TDI band breakout. Green when the TDI green line breaks out of the blue bands to the upside, red when it breaks out
of the bands to the downside

Type 39 - Like type 7 but ignores whether market sentiment (TDI yellow line) is rising or falling. This is the original
Synergy signal - 7 was a modification of it

Type 40 - TDI band squeeze. Green when distance between blue bands is less than BBSqueezelimit param and TradeSignalLine2 is
above market sentiment, red when it is below it.


Type 41 - Slow trix above/below 0. Red when slow trix is below 0, green when it is above it, with out regard to the slope of
the trix

New Types:
Type 42 - Slow trix above/below 0 and sloping up/down. Red when slow trix is below 0 and sloping down, green when it is above
it and sloping down, blank when both conditions are not met.

Type 43 - TDI green band is above Market baseline. Green when the TDI green line is above the market baseline (yellow line)
red when it is below it, without regard for whether it is also above/below the red line.

Type 44. All THV plus OB/OS. Like type 19 except signal is not given if the fast trix is in overbought or oversold. (Uses TrixxxOB and TrixxxOS params where xx is a timeframe like M1 M15 etc)


Note: The useHACandles param affects type 5, 9,10,11,13 19, 20,21,22, 25 and 44.

When true, the ePeriod types that compare where price is in relation to something such as the Ichimoku cloud or the Coral
compares the close of the HA candle instead of the regular close.


Mode 2
======
Mode 2 ignores eperiod type and sets all tfs to demi classic mode (fast trix above/below slow and above/below zero, but may
have changed color against the trade.
Mode 3
======
Mode 3 ignores all ePeriod types and sets all selected tfs to classic (fast trix/above below slow and still in direction of
the trade and above/below zero)
Mode 4
======
Mode 4 ignores all ePeriod types and sets all selected tfs to semiclassic (fast trix/above below slow and still in direction
of the trade but not necessarily above/below zero)

Note: Modes 2-4 only work for the trix. They autoconfigure various combinations of the trix setting
for the two higher timeframes, relative to the chart you are looking at.


Autotimeframes
===========

When the autotimeframe param is set to true, the indicator works like the old trix histo, selecting the first higher timeframe for the first and second rows and the second higher timeframe for the third and fourth rows.
(i.e on a one minute chart, 5m , 5m 15m, 15m).

If autotimeframe and usesecondautotf are both true, then it selects the third and fourth higher tfs for the fast and slow trix.
(i.e on a one minute chart 30m 30m 60m 60m)

If you want to autoconfigure timeframes in a more granular manner using mode one, you can set both autotimeframeand usesecondautotf to false and use the following settings
in eperiod:

0 : current tf
- 1 : up one tf
-2 : up two tfs
-3 : up three tfs.
-4 : up four tfs


Alarm
===========
The way it works is that for each row in the histo you can choose whether to count the row in the max score by setting
countE1-4 to true. Then you set a Max score. When EnableAlerts is true, you will get an alarm when the total score is greater
than or equal to the Max
score.
For example:
Suppose I have the following settings.
row 1 is the 1m f trix
row2 is the 1 m coral
row 3 is the 1m cloud
row 4 is the 5m fast trix.
If I want to get an alarm when all four rows are the same colour I set countE1-4 to true and max score to 4.
If I want to get an alarm when 3 of the four are true I set countE1-4 to true and max score to 3. In this case when any three
of the rows are the same color you will get an alarm. (You will also get an alarm once when the fourth row turns color as
well)
If I want to get an alarm when only the first, second and third rows are true I set countE1, countE2 and countE3 to true,
countE2 and countE4 to false and max score to 3.
In addition the score for each row is reset if the histo row changes color.
So if you have an alarm on the first,second and third rows, and max score set to 3, when all three change to the same color
(green for example) you will get an alarm. If the second row changes color (to red for example) but the first and third rows
stay green, when the second row changes back to green you will get another alarm.
You will get the alarm at the start of the next bar following the bar in which the total score was greater than or equal to
maxscore.

EmailAlert: Set to true if you want to get email alerts. EnableAlerts should also be set to true and it would be best to
leave AlertMode type as 0 (alert on newbar when last bar has closed with a signal) rather than 1 (interbar)

Thanks Miss Pips for Type 44 will check it out when I have time.

NP. It was a good idea.

For the first of all MissPips thank you for all your work, your sah is very helpful. I have one question, i can't fix it, i am using type 12 and some times it is changing values on sah up to 20 candles back, for example it is green for 20 candles, and when new candle is opening it is changing to red all that 20 candles. Is there any way to avoid it ? Thank you

MissPips, i tried all of your sah, the best values for trading gives for me only 4.55. sah 4.55 on 15M chart with bishopdotuns set up H1 type 0,1 and H4 type 0,1 gives really good results. Also i am using on 15M chart set up with 15M type 5,13 and H1 type 12 and H4 type 12, good results too.
