How do I remove Indicator Comments in a subwindow?

  • #1
  • First Post: Aug 27, 2009 1:37am Aug 27, 2009 1:37am

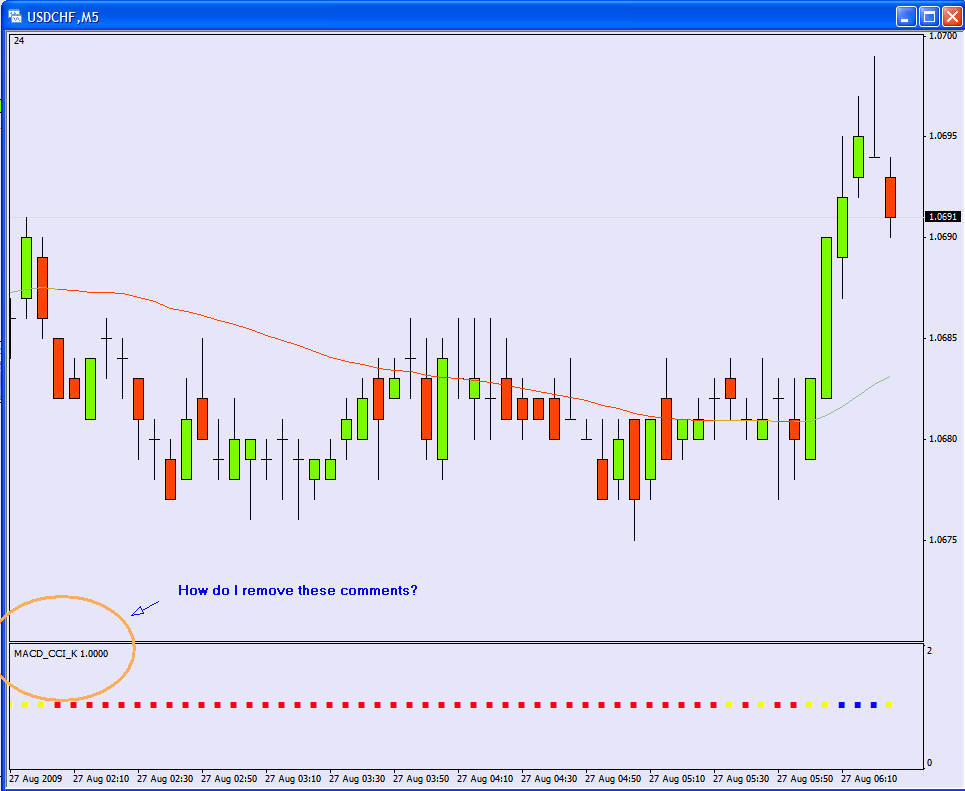

How do I remove the Indicator Comments, both Indicator ShortName and Indicator Digits that are automatically present in the top left corner of a subwindow ?
Attached Image (click to enlarge)
Click to Enlarge Name: 0908270727 indicator subwindow.jpg Size: 99 KB
  • #2
  • Aug 27, 2009 1:47am Aug 27, 2009 1:47am
How do I add text into the subwindow? I want to put a text character at the end of the line that indicates the particular time period, say M5. As this is a bit more involved, I guess what I am looking for is an example in another indicator that I can work through to figure out the general method. I have added this indicator at the bottom.
Attached File(s)
File Type: mq4 MACD_CCI_K.mq4   2 KB | 374 downloads
  • #3
  • Aug 27, 2009 2:02am Aug 27, 2009 2:02am
Quoting Royston
How do I remove the Indicator Comments, both Indicator ShortName and Indicator Digits that are automatically present in the top left corner of a subwindow ?
set the indicatorshortname to "" must be done in the indicator code itself.
  • #4
  • Aug 27, 2009 2:05am Aug 27, 2009 2:05am
Quoting Royston
How do I add text into the subwindow? I want to put a text character at the end of the line that indicates the particular time period, say M5. As this is a bit more involved, I guess what I am looking for is an example in another indicator that I can work through to figure out the general method. I have added this indicator at the bottom.
Inserted Code
ObjectCreate("TSR", OBJ_LABEL, WindowFind("TSR"), 0, 0);
        ObjectSetText("TSR",StringSubstr(Symbol(),0),12, "Arial Bold", Blue);
        ObjectSet("TSR", OBJPROP_CORNER, 0);
        ObjectSet("TSR", OBJPROP_XDISTANCE, 25);
        ObjectSet("TSR", OBJPROP_YDISTANCE, 2);


This will create and object and place it in the window, you just need to edit the xdistance and ydistance to place it wherever you need.
  • #5
  • Aug 27, 2009 2:34am Aug 27, 2009 2:34am
Quoting magnumfreak
set the indicatorshortname to "" must be done in the indicator code itself.
thanks for the replies, magnum. I have tried that, and it works, but does not remove the digits. Although I haven't tried it yet, I think it may also cause problems with the WindowFind function. I can also alter the number of places after the decimal point, but cannot get rid of the digits themselves. I have seen charts without those numbers on them, so it must be possible somehow
  • #6
  • Edited 9:08am Aug 28, 2009 9:08am | Edited 9:08am
anybody else have an idea how to go about this?
  • #7
  • Aug 28, 2009 9:40am Aug 28, 2009 9:40am
try putting these inside the init() function

Inserted Code
SetIndexLabel(0,NULL);
SetIndexLabel(1,NULL);
SetIndexLabel(2,NULL);
IndicatorShortName("");

regards,
Zen
Programming for a better future.
  • #8
  • Last Post: Aug 28, 2009 10:32am Aug 28, 2009 10:32am
so simple,
so Zen,
Zen

thank you
