hello,
"hIndicator_dialog_class_only.mq4" is an indicator which creates a dialog class ...and works fine
Here is "hIndicator_class_and_indicator.mq4" on which i try to open the same dialog class ...and also a subwindow.

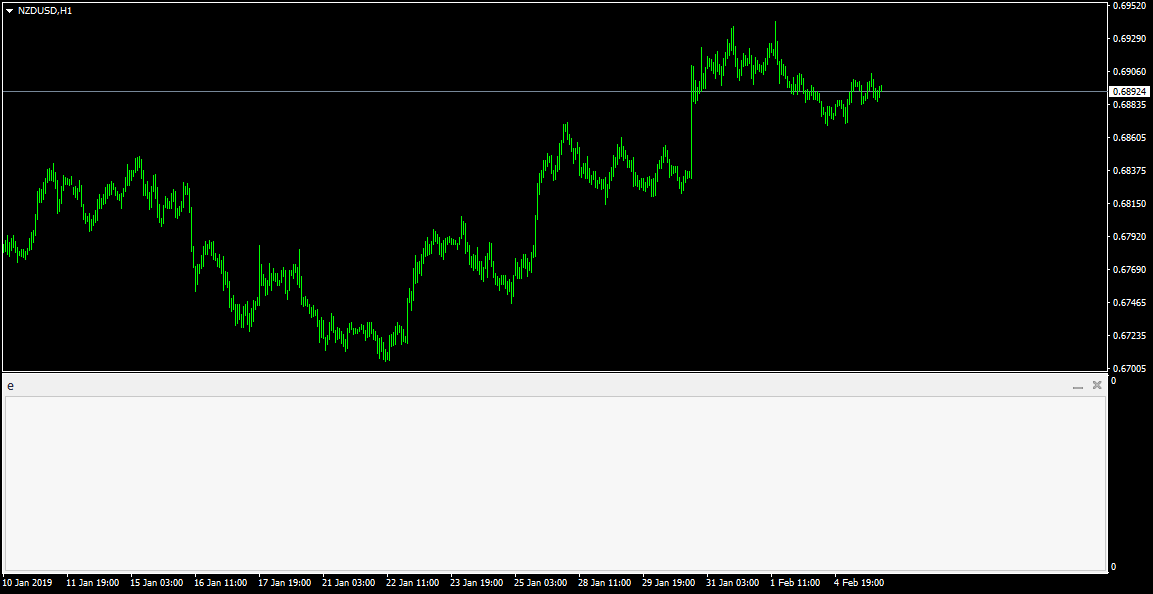

But it doesnt give what as expected :
So what to modify to obtain dialog class on upper left corner and an indicator subwindow under the main chart ?
thanks
"hIndicator_dialog_class_only.mq4" is an indicator which creates a dialog class ...and works fine
Inserted Code
#property indicator_chart_window
//+------------------------------------------------------------------+
#include <Controls\Dialog.mqh>
class hClass: public CAppDialog{
public:
hClass();
~hClass();
};
hClass:: hClass(){}
hClass::~hClass(){}
//+------------------------------------------------------------------+
hClass eClass;
//+------------------------------------------------------------------+
int OnInit(){
eClass.Create(0,"e",0,1,1,100,200);
eClass.Run();
return(INIT_SUCCEEDED);
}
//------------------------------------------------------------------+
void OnDeinit(const int reason){
eClass.Destroy(reason);
}
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,const int prev_calculated,const datetime &time[],const double &open[],const double &high[],const double &low[],const double &close[],const long &tick_volume[],const long &volume[],const int &spread[]){
return(rates_total);
}
//+------------------------------------------------------------------+
void OnChartEvent(const int id,const long &lparam,const double &dparam,const string &sparam){
eClass.OnEvent(id,lparam,dparam,sparam);
}
//+------------------------------------------------------------------+ Here is "hIndicator_class_and_indicator.mq4" on which i try to open the same dialog class ...and also a subwindow.
Inserted Code
#property indicator_separate_window
#property indicator_buffers 1
#property indicator_plots 1
//+------------------------------------------------------------------+
#include <Controls\Dialog.mqh>
class hClass: public CAppDialog{
public:
hClass();
~hClass();
};
hClass:: hClass(){}
hClass::~hClass(){}
//+------------------------------------------------------------------+
hClass eClass;
//+------------------------------------------------------------------+
double Label1Buffer[];
//------------------------------------------------------------------+
int OnInit(){
SetIndexBuffer(0,Label1Buffer); SetIndexLabel(0,"Label1"); SetIndexStyle(0, DRAW_LINE, STYLE_SOLID, 1, clrRed);
eClass.Create(0,"e",0,1,1,100,200);
eClass.Run();
return(INIT_SUCCEEDED);
}
//------------------------------------------------------------------+
void OnDeinit(const int reason){
eClass.Destroy(reason);
}
//------------------------------------------------------------------+
int OnCalculate(const int rates_total,const int prev_calculated,const datetime &time[],const double &open[],const double &high[],const double &low[],const double &close[],const long &tick_volume[],const long &volume[],const int &spread[]){
return(rates_total);
}
//------------------------------------------------------------------+
void OnChartEvent(const int id,const long &lparam,const double &dparam,const string &sparam){
eClass.OnEvent(id,lparam,dparam,sparam);
}
//------------------------------------------------------------------+ So what to modify to obtain dialog class on upper left corner and an indicator subwindow under the main chart ?
thanks
