Attachments: MT5 Basics

MT5 Basics

#41
Oct 27, 2025 6:55pm Oct 27, 2025 6:55pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 9 KB

MAKE THE FOLLOWING CHANGES TO OUR PREV CODES:

Inserted Code

void BUTTONS_PADDING()
{
avgPrice();
   int x=x00;
   int y=y00;
   int xd=x99-x00;
   int yd=y60-y00;
   Create_Button("PAD_1","\n",  x,   y,   xd,   yd,   FONT,   clrBX, clrBX, clrBR, "PAD_1");

   x=x01;    y=y01;    xd=x98-x01;    yd=y59-y01;
   Create_Button("PAD_2","\n",  x,   y,   xd,   yd,   FONT,   clrBX, clrBX, clrBR, "PAD_2");
   x=x03;    y=y03;    xd=x17-x03;    yd=y09-y03;
   Create_Button("price_1","AVG",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x17;    xd=x31-x17;
   Create_Button("price_2","LOTS",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x31;   xd=x45-x31;
   Create_Button("price_3","P/L",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x45;    xd=x59-x45;
   Create_Button("price_4","ASK/BID",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x59;    xd=x73-x59;
   Create_Button("price_5","AVG B/S",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x73;   xd=x87-x73;
   Create_Button("price_6","BID",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x87;   xd=x97-x87;
   Create_Button("price_7","BID",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
y=y+yd;
   x=x03;   xd=x17-x03;
   Create_Button("price_11",DoubleToString(avgB,1),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x17;    xd=x31-x17;
   Create_Button("price_12",DoubleToString(lotsB,2),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x31;   xd=x45-x31;
   Create_Button("price_13",DoubleToString(profitB,2),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x45;    xd=x59-x45;
   Create_Button("price_14",DoubleToString(sASK,_Digits),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x59;    xd=x73-x59;
   Create_Button("price_15",DoubleToString(bpAvg,_Digits+1),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x73;   xd=x87-x73;
   Create_Button("price_16","BID",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x87;   xd=x97-x87;
   Create_Button("price_17","BID",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
y=y+yd;
   x=x03;    xd=x17-x03;
   Create_Button("price_21",DoubleToString(avgS,1),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x17;    xd=x31-x17;
   Create_Button("price_22",DoubleToString(lotsS,2),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x31;   xd=x45-x31;
   Create_Button("price_23",DoubleToString(profitS,2),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x45;    xd=x59-x45;
   Create_Button("price_24",DoubleToString(bBID,_Digits),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x59;    xd=x73-x59;
   Create_Button("price_25",DoubleToString(spAvg,_Digits+1),  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x73;   xd=x87-x73;
   Create_Button("price_26","BID",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");
   x=x87;   xd=x97-x87;
   Create_Button("price_27","BID",  x,   y,   xd,   yd,   FONT,   clrBX, clrT, clrBR, "PAD_2");

}
   double bpAvg;
   double spAvg;

   double bBID;
   double sASK;
         double avgB;
         double avgS;
   double profitB = 0;
   double profitS = 0;
   double lotsB = 0;
   double lotsS = 0;
string symm=ChartSymbol(0);
void avgPrice()
{
    profitB = 0;
    profitS = 0;
    lotsB = 0;
    lotsS = 0;
          avgB=0;
          avgS=0;

         for(int i=PositionsTotal()-1; i>=0; i--)
         {
         string sym=PositionGetSymbol(i);


            if(sym==symm)
            {
            ENUM_POSITION_TYPE type=ENUM_POSITION_TYPE(PositionGetInteger(POSITION_TYPE));

            if(type==POSITION_TYPE_BUY)
            {

            lotsB = lotsB + PositionGetDouble(POSITION_VOLUME);
            profitB = profitB + PositionGetDouble(POSITION_PROFIT)+PositionGetDouble(POSITION_SWAP);
         }
         else if(type==POSITION_TYPE_SELL)
         {

            lotsS = lotsS + PositionGetDouble(POSITION_VOLUME);
            profitS = profitS + PositionGetDouble(POSITION_PROFIT)+PositionGetDouble(POSITION_SWAP);
         }


         }
         }
         //Print(lotsS,"//S//",profitS);
         //Print(lotsB,"//B//",profitB);
   double PV=SymbolInfoDouble(symm,SYMBOL_TRADE_TICK_VALUE);

         //Print(symm+"//PV//"+string(PV));
         if((lotsB*PV)>0.0001)  avgB=profitB/(lotsB*PV);
         if((lotsS*PV)>0.0001)  avgS=profitS/(lotsS*PV);
         Print("////avgB=",DoubleToString(avgB,_Digits+1),"////avgS=",DoubleToString(avgS,_Digits+1));


    bpAvg=SymbolInfoDouble(Symbol(),SYMBOL_ASK);
    spAvg=SymbolInfoDouble(Symbol(),SYMBOL_BID);



    bBID=SymbolInfoDouble(Symbol(),SYMBOL_BID);
    sASK=SymbolInfoDouble(Symbol(),SYMBOL_ASK);
    bpAvg=sASK-avgB*_Point;
    spAvg=bBID+avgS*_Point;
}

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#42
Oct 27, 2025 7:50pm Oct 27, 2025 7:50pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

corrected ... commons sense rule
-

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 7 KB

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#43
Oct 27, 2025 7:53pm Oct 27, 2025 7:53pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

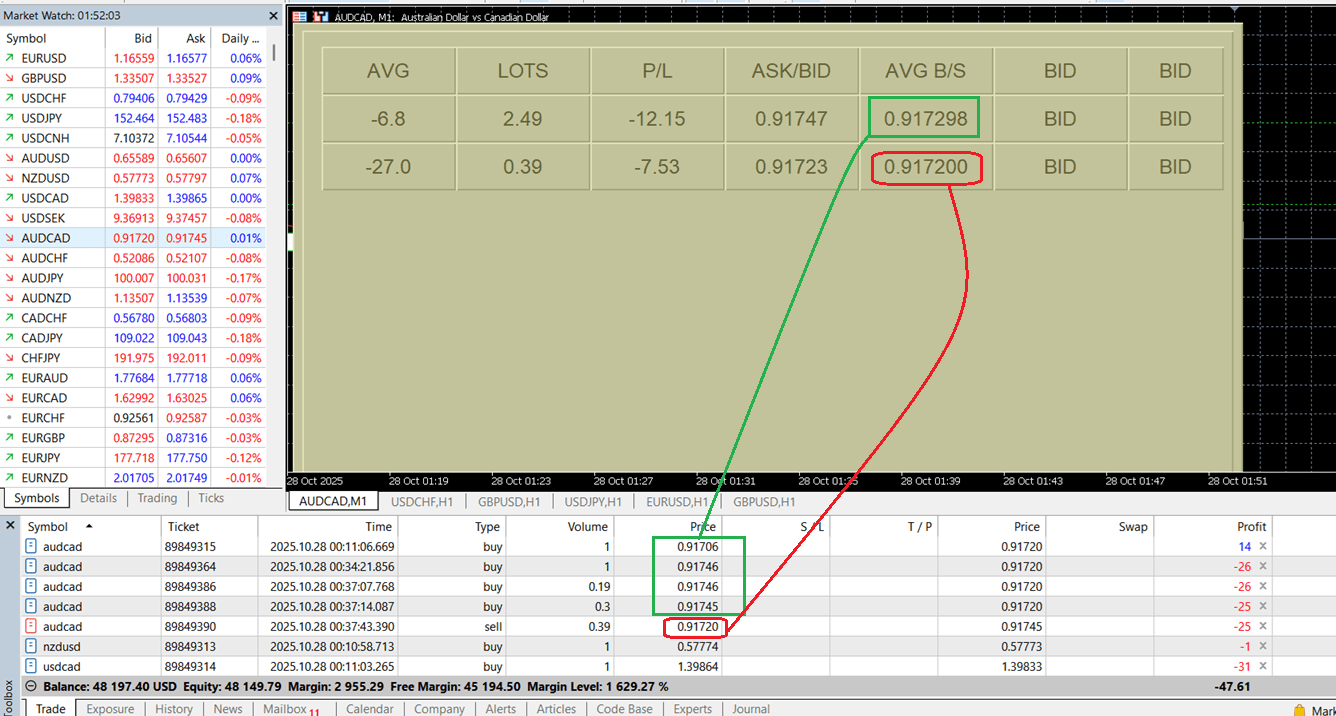

match hand calcualtions . .

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 101 KB

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#44
Oct 27, 2025 7:57pm Oct 27, 2025 7:57pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

you had better make symm internal variable . .

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 3 KB

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#45
Oct 27, 2025 8:06pm Oct 27, 2025 8:06pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

Now: could you build two scripts, (two buttons) one for buy market entry of n orders and L lots, and another foe sell market orders with n orders and L lots?
?
make n as an external variable,
make L as an external variable?
?
use AL-OTAIBI method of Dummy variable ?
do not use traditioanl way .

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#46
Oct 28, 2025 6:43pm Oct 28, 2025 6:43pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

First: let us add BUY Burron and SELL button . .

add the following code to the end of our BUTTONS_PADDING() function . .

Attached Image (click to enlarge)

-
the out put will be something like this ... it is just a dead button ... we have to add live to it (action-listener)

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 5 KB

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#47
Oct 28, 2025 6:49pm Oct 28, 2025 6:49pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

also we will add LOTS input button . . and number of orders button / / /

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 35 KB

--
Now to make Lots and postions number external variable,
we had better design our semi-calcualtor . . .

so we need to add calculator buttons . . . .

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 17 KB

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#48
Oct 28, 2025 6:55pm Oct 28, 2025 6:55pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

we will use wingsddings from #128 to #137 as shown on picture . . .
calcualtor objective: to set out external variables values, espeically numrical values . .

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 75 KB

also we need an additional button to display ourput, and we have do add another button for dot "." , like this dot in 1.24

and we need a third button to set values then free calc memory . . .
and a fourth button for padding (calc special background)
something like that:

Attached Image (click to enlarge)

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#49
Oct 28, 2025 7:18pm Oct 28, 2025 7:18pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

something like that .. just to make it neat more . . and re-postion it . .

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 10 KB

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#50
Oct 28, 2025 7:20pm Oct 28, 2025 7:20pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

we add a new variable st --- to display the chosen calc value

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 43 KB

-

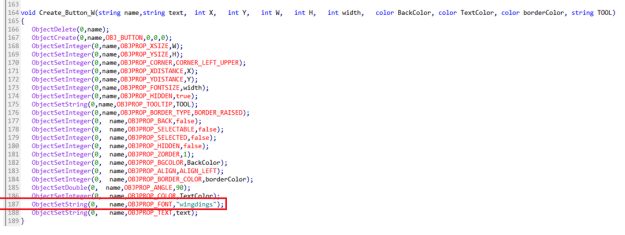

and we add a new fucntion for wingsdings paintings . .

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 182 KB

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#51
Oct 28, 2025 7:22pm Oct 28, 2025 7:22pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

this is our code for our semi-calcualtor (external variables setting)

Inserted Code

string st;
void calculator_buttons()
{
   int x=x32;
   int  y=y40;;
   int  xd=x36-x32;
   int yd=y40-y37;
   Create_Button_W("N_1",CharToString(140),x,y,xd,yd,FONT,C'166,88,133',C'255,255,255',clrNONE,"X");
   x=x+x04;;
   Create_Button_W("N_2",CharToString(141),x,y,xd,yd,FONT,C'166,88,33',C'255,255,255',clrNONE,"X");
   x=x+x04;;
   Create_Button_W("N_3",CharToString(142),x,y,xd,yd,FONT,C'166,88,133',C'255,255,255',clrNONE,"X");
   x=x32;

   y=y+yd+9;
   Create_Button_W("N_4",CharToString(143),x,y,xd,yd,FONT,C'166,88,33',C'255,255,255',clrNONE,"X");
   x=x+x04;;
   Create_Button_W("N_5",CharToString(144),x,y,xd,yd,FONT,C'166,88,133',C'255,255,255',clrNONE,"X");
   x=x+x04;;
   Create_Button_W("N_6",CharToString(145),x,y,xd,yd,FONT,C'166,88,33',C'255,255,255',clrNONE,"X");


   x=x32;

   y=y+yd+9;
   Create_Button_W("N_7",CharToString(146),x,y,xd,yd,FONT,C'166,88,133',C'255,255,255',clrNONE,"X");
   x=x+x04;;
   Create_Button_W("N_8",CharToString(147),x,y,xd,yd,FONT,C'166,88,33',C'255,255,255',clrNONE,"X");
   x=x+x04;;
   Create_Button_W("N_9",CharToString(148),x,y,xd,yd,FONT,C'166,88,133',C'255,255,255',clrNONE,"X");
   x=x32;
   y=y+yd+9;
   Create_Button("N_DOT",".",x,y,xd,yd,FONT,C'166,88,253',C'255,255,255',clrNONE,"X");
   x=x+x04;;
   Create_Button_W("N_0",CharToString(139),x,y,xd,yd,FONT,C'99,188,93',C'255,255,255',clrNONE,"X");
   x=x+x04;;
   Create_Button("N_SET","S",x,y,xd,yd,FONT,C'255,0,0',C'255,255,255',clrNONE,"X");
   y=y+yd+9;
   x=x32;
   Create_Button("N_st",st,x,y,xd,yd,FONT,C'166,88,33',C'255,255,255',clrNONE,"X");
}
void Create_Button_W(string name,string text,  int X,   int Y,   int W,   int H,   int width,   color BackColor, color TextColor, color borderColor, string TOOL)
{
   ObjectDelete(0,name);
   ObjectCreate(0,name,OBJ_BUTTON,0,0,0);
   ObjectSetInteger(0,name,OBJPROP_XSIZE,W);
   ObjectSetInteger(0,name,OBJPROP_YSIZE,H);
   ObjectSetInteger(0,name,OBJPROP_CORNER,CORNER_LEFT_UPPER);
   ObjectSetInteger(0,name,OBJPROP_XDISTANCE,X);
   ObjectSetInteger(0,name,OBJPROP_YDISTANCE,Y);
   ObjectSetInteger(0,name,OBJPROP_FONTSIZE,width);
   ObjectSetInteger(0,name,OBJPROP_HIDDEN,true);
   ObjectSetString(0,name,OBJPROP_TOOLTIP,TOOL);
   ObjectSetInteger(0,name,OBJPROP_BORDER_TYPE,BORDER_RAISED);
   ObjectSetInteger(0,  name,OBJPROP_BACK,false);
   ObjectSetInteger(0,  name,OBJPROP_SELECTABLE,false);
   ObjectSetInteger(0,  name,OBJPROP_SELECTED,false);
   ObjectSetInteger(0,  name,OBJPROP_HIDDEN,false);
   ObjectSetInteger(0,  name,OBJPROP_ZORDER,1);
   ObjectSetInteger(0,  name,OBJPROP_BGCOLOR,BackColor);
   ObjectSetInteger(0,  name,OBJPROP_ALIGN,ALIGN_LEFT);
   ObjectSetInteger(0,  name,OBJPROP_BORDER_COLOR,borderColor);
   ObjectSetDouble(0,  name,OBJPROP_ANGLE,90);
   ObjectSetInteger(0,  name,OBJPROP_COLOR,TextColor);
   ObjectSetString(0,   name,OBJPROP_FONT,"wingdings");
   ObjectSetString(0,   name,OBJPROP_TEXT,text);
}

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#52
Oct 28, 2025 11:16pm Oct 28, 2025 11:16pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

now our live fucntion:
OnChartEvent()
buttons mouse clicks
CHARTEVENT_OBJECT_CLICK

Attached Image (click to enlarge)

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#53
Oct 28, 2025 11:45pm Oct 28, 2025 11:45pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 15 KB

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#54
Oct 28, 2025 11:47pm Oct 28, 2025 11:47pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

our dummy_number could be integer, could be double, could be date, could be strin, could be boolean true/false . .

Attached Image (click to enlarge)

Click to Enlarge

Name: screenshot.png
Size: 22 KB

Attached Image (click to enlarge)

each day 10%,,,, https://www.forexfactory.com/thread/1371538

#55
Oct 28, 2025 11:49pm Oct 28, 2025 11:49pm

Macd-rsi
Joined Oct 2019 | Status: Forexian Fighter = FF | 16,341 Posts

action-listener fucntion . . .setting variables usin mouse only . . .

Inserted Code

string dummy_number="100.00007";
void OnChartEvent(const int32_t id, const long &lparam,  const double &dparam,   const string &sparam)
{

   if(id==CHARTEVENT_OBJECT_CLICK)
   {
   if(sparam=="LOTS")
   {
      lots = double(dummy_number);
      if(lots<SymbolInfoDouble(ChartSymbol(),SYMBOL_VOLUME_MIN))        lots=SymbolInfoDouble(ChartSymbol(),SYMBOL_VOLUME_MIN);
      else if(lots>SymbolInfoDouble(ChartSymbol(),SYMBOL_VOLUME_MAX))   lots=SymbolInfoDouble(ChartSymbol(),SYMBOL_VOLUME_MAX);
   }

   if(sparam=="ORDERS")
   {
      ORDERS = int(dummy_number);
      if(ORDERS<1)  ORDERS=1;
      if(ORDERS>9999)   ORDERS=9999;
   }
            if(StringSubstr(sparam,0,2)=="N_")
            {
                if(sparam=="N_0")
                {
                   st=st+"0";
                }
                if(sparam=="N_1")
                {
                   st=st+"1";
                }
                if(sparam=="N_2")
                {
                   st=st+"2";
                }
                if(sparam=="N_3")
                {
                   st=st+"3";
                }
                if(sparam=="N_4")
                {
                   st=st+"4";
                }
                if(sparam=="N_5")
                {
                   st=st+"5";
                }
                if(sparam=="N_6")
                {
                   st=st+"6";
                }
                if(sparam=="N_7")
                {
                   st=st+"7";
                }
                if(sparam=="N_8")
                {
                   st=st+"8";
                }
                if(sparam=="N_9")
                {
                   st=st+"9";
                }
                if(sparam=="N_DOT")
                {

                   st=st+".";
                }
                if(sparam=="N_SET")
                {

                   dummy_number=(st);
                   st="\n";
                }

                }
   }
}

each day 10%,,,, https://www.forexfactory.com/thread/1371538
