Hello guys,
I have tried to put this indicator together, but it does not work correctly

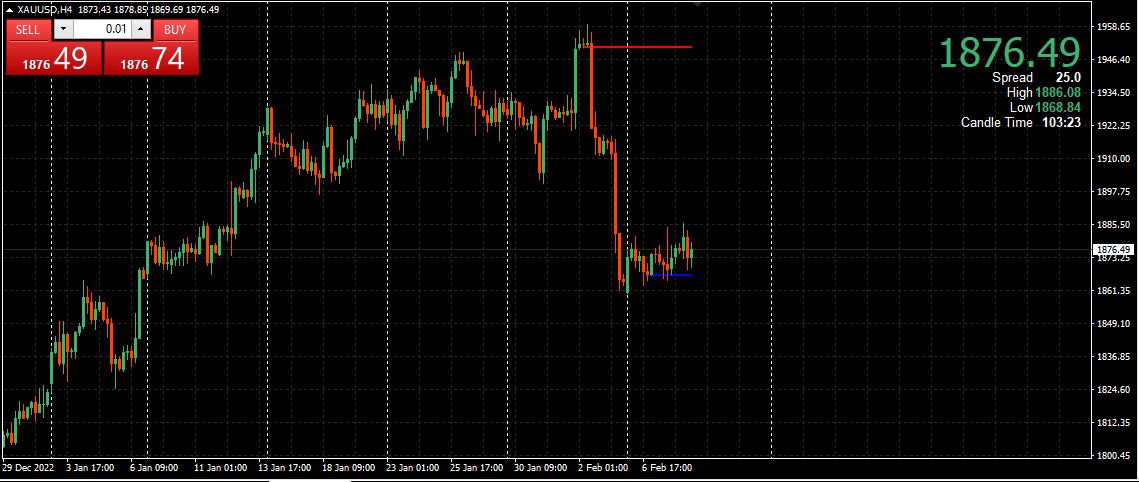

It should draw a line for each candle that e.g. have a low inside the gap on the big candle, but it only show one line like in the chart pic below
I get an error code 4200 in the terminal window which normally means there's already another object with the same name, so there's something in the code that keeps stopping the indicator from draw more lines, i just can't see the bug after 8 hours lol
This is what i have so far
Can anyone see what wrong in the code?
I have tried to put this indicator together, but it does not work correctly
It should draw a line for each candle that e.g. have a low inside the gap on the big candle, but it only show one line like in the chart pic below
I get an error code 4200 in the terminal window which normally means there's already another object with the same name, so there's something in the code that keeps stopping the indicator from draw more lines, i just can't see the bug after 8 hours lol
This is what i have so far
Inserted Code
#property indicator_chart_window
extern int BarsBack = 1000;
input string InpNameUp="GapUp"; // Line name
input string InpNameDown="GapDown"; // Line name
input color InpColor=clrRed; // Line color
input color InpColor1=clrBlue; // Line color
input ENUM_LINE_STYLE InpStyle=STYLE_SOLID; // Line style
input int InpWidth=1; // Line width
input bool InpBack=false; // Background line
input bool InpSelection=false; // Highlight to move
input bool InpRayRight=false; // Line's continuation to the right
input bool InpHidden=false; // Hidden in the object list
input long InpZOrder=0; // Priority for mouse click
double Poin;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
Poin = Point;
//Checking for unconvetional Point digits number
if ((Point == 0.00001) || (Point == 0.001)) Poin *= 10;
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
for (int i = 0; i < Bars; i++)
{
ObjectDelete("TrendlineUp" + i);
ObjectDelete("TrendlineDown" + i);
}
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars = IndicatorCounted();
if (counted_bars > 0) counted_bars--;
int limit = Bars - counted_bars;
if (limit > BarsBack) limit = BarsBack;
//Comment(BarsBack);
for (int i = 0; i <= limit; i++)
{
//GapDown
if(High[i+1] < Low[i+3])
{
int j=4;
while(Low[i+4] < Low[i+3] && Low[i+4] > High[i+1])
{
if(!GapDownCreate(i+j, 0,InpNameUp,0,Time[i+j],Low[i+j],Time[0],Low[i+j],InpColor,InpStyle,InpWidth,InpBack,InpSelection,InpRayRight,InpHidden,InpZOrder))
{
return(0);
}
j = j++;
}
}
//TimeCurrent() + 10 * 365 * 24 * 60 * 60, HighCandle_1, i, clrRed);
//GapUp
if(Low[i+1] > High[i+3])
{
int k=4;
while(High[i+4] > High[i+3] && High[i+4] < Low[i+1])
{
if(!GapUpCreate(i+k, 0,InpNameDown,0,Time[i+k],Low[i+k],Time[0],Low[i+k],InpColor1,InpStyle,InpWidth,InpBack,InpSelection,InpRayRight,InpHidden,InpZOrder))
{
return(0);
}
k = k++;
}
}
//TimeCurrent() + 10 * 365 * 24 * 60 * 60, HighCandle_1, i, clrRed);
}
return (0);
}
//+------------------------------------------------------------------+
//| Create a line by the given coordinates |
//+------------------------------------------------------------------+
bool GapUpCreate(const int j,
const long chart_ID=0, // chart's ID
const string name="GapUp", // line name
const int sub_window=0, // subwindow index
datetime time1=0, // first point time
double price1=0, // first point price
datetime time2=0, // second point time
double price2=0, // second point price
const color clr=clrBlue, // line color
const ENUM_LINE_STYLE style=STYLE_SOLID, // line style
const int width=1, // line width
const bool back=false, // in the background
const bool selection=false, // highlight to move
const bool ray_right=false, // line's continuation to the right
const bool hidden=false, // hidden in the object list
const long z_order=0) // priority for mouse click
{
ResetLastError();
if(!ObjectCreate(chart_ID,name+j,OBJ_TREND,sub_window,time1,price1,time2,price2))
{
Print(__FUNCTION__,
": failed to create a trend line! Error code = ",GetLastError());
return(false);
}
ObjectSetInteger(chart_ID,name+j,OBJPROP_COLOR,clr);
ObjectSetInteger(chart_ID,name+j,OBJPROP_STYLE,style);
ObjectSetInteger(chart_ID,name+j,OBJPROP_WIDTH,width);
ObjectSetInteger(chart_ID,name+j,OBJPROP_BACK,back);
ObjectSetInteger(chart_ID,name+j,OBJPROP_SELECTABLE,selection);
ObjectSetInteger(chart_ID,name+j,OBJPROP_SELECTED,selection);
ObjectSetInteger(chart_ID,name+j,OBJPROP_RAY_RIGHT,ray_right);
ObjectSetInteger(chart_ID,name+j,OBJPROP_HIDDEN,hidden);
ObjectSetInteger(chart_ID,name+j,OBJPROP_ZORDER,z_order);
return(true);
}
//+------------------------------------------------------------------+
//| Create another line by the given coordinates |
//+------------------------------------------------------------------+
bool GapDownCreate(const int k,
const long chart_ID=0, // chart's ID
const string name="GapDown", // line name
const int sub_window=0, // subwindow index
datetime time1=0, // first point time
double price1=0, // first point price
datetime time2=0, // second point time
double price2=0, // second point price
const color clr=clrRed, // line color
const ENUM_LINE_STYLE style=STYLE_SOLID, // line style
const int width=1, // line width
const bool back=false, // in the background
const bool selection=false, // highlight to move
const bool ray_right=false, // line's continuation to the right
const bool hidden=false, // hidden in the object list
const long z_order=0) // priority for mouse click
{
ResetLastError();
if(!ObjectCreate(chart_ID,name+k,OBJ_TREND,sub_window,time1,price1,time2,price2))
{
Print(__FUNCTION__,
": failed to create a trend line! Error code = ",GetLastError());
return(false);
}
ObjectSetInteger(chart_ID,name+k,OBJPROP_COLOR,clr);
ObjectSetInteger(chart_ID,name+k,OBJPROP_STYLE,style);
ObjectSetInteger(chart_ID,name+k,OBJPROP_WIDTH,width);
ObjectSetInteger(chart_ID,name+k,OBJPROP_BACK,back);
ObjectSetInteger(chart_ID,name+k,OBJPROP_SELECTABLE,selection);
ObjectSetInteger(chart_ID,name+k,OBJPROP_SELECTED,selection);
ObjectSetInteger(chart_ID,name+k,OBJPROP_RAY_RIGHT,ray_right);
ObjectSetInteger(chart_ID,name+k,OBJPROP_HIDDEN,hidden);
ObjectSetInteger(chart_ID,name+k,OBJPROP_ZORDER,z_order);
return(true);
} Can anyone see what wrong in the code?
