Hello.
I want to show you my development, the Stochastic Dashboard Multicurrency indicator for MT4 & MT5.

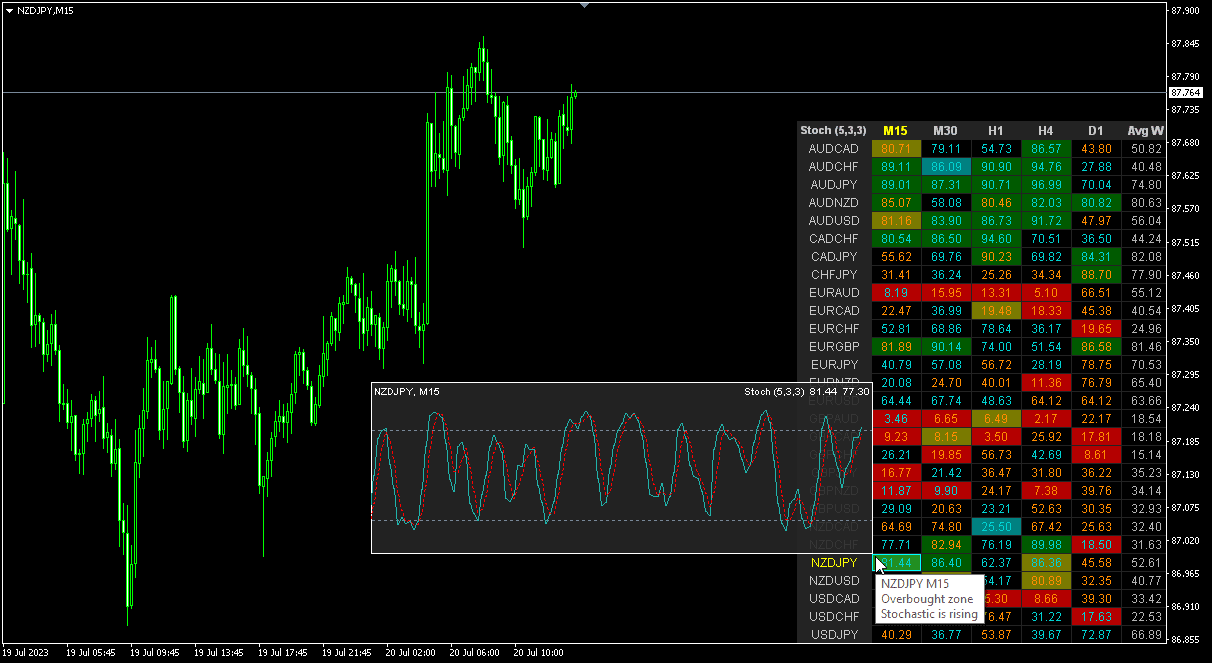

Multicurrency and multitimeframe modification of the Stochastic Oscillator. You can specify any desired currencies and timeframes in the parameters. The indicator displays the current values and intersections of the lines — Signal and Main. Also, the indicator can send notifications when crossing overbought and oversold levels. By clicking on a cell with a period, this symbol and period will be opened. This is MTF Scanner.
Similar to the Currency Strength Meter (CSM), the Dashboard can automatically select pairs that contain a specified currency, or those pairs that have that currency as their base currency. The indicator searches for Currency in all pairs that are specified in the “Set of Pairs”; other pairs are ignored. And based on these pairs, the total Stochastic for this currency is calculated. And you can see how strong or weak that currency is.
Demo version you can download directly from MT4 (MT5), from the Market tab. And you can try it in the strategy tester, in the visual mode.
Video with indicator capabilities:
Parameters
I want to show you my development, the Stochastic Dashboard Multicurrency indicator for MT4 & MT5.
Multicurrency and multitimeframe modification of the Stochastic Oscillator. You can specify any desired currencies and timeframes in the parameters. The indicator displays the current values and intersections of the lines — Signal and Main. Also, the indicator can send notifications when crossing overbought and oversold levels. By clicking on a cell with a period, this symbol and period will be opened. This is MTF Scanner.
Similar to the Currency Strength Meter (CSM), the Dashboard can automatically select pairs that contain a specified currency, or those pairs that have that currency as their base currency. The indicator searches for Currency in all pairs that are specified in the “Set of Pairs”; other pairs are ignored. And based on these pairs, the total Stochastic for this currency is calculated. And you can see how strong or weak that currency is.
Demo version you can download directly from MT4 (MT5), from the Market tab. And you can try it in the strategy tester, in the visual mode.
Video with indicator capabilities:
Inserted Video
Parameters
- %K Period — the period of the K line.
- %D Period — the period of the D line.
- Slowing — slowing;
- Method — method of averaging;
- Price field — price type.
- Line of indicator — line index.
- Clear the chart at startup — clear the chart at startup.
- Set of Pairs — set of symbols:
- Market Watch — pairs from the "Market Watch".
- Specified manually — pairs specified manually, in the parameters "Pairs".
- Pairs (separated by a space or semicolon) — list of symbols separated by spaces or semicolons. The currency names should be written exactly like the broker's, keeping the case and prefix/suffix.
- Time Frames (separated by a space or semicolon) — list of timeframes separated by spaces or semicolons.
- Sort pairs — sorting the list of pairs.
- Position on chart — corner to display the panel on the chart.
- X offset (pix) — shift the panel along the X axis;
- Y offset (pix) — shift the panel along the Y axis;
- Refresh dashboard every (seconds) — update period for all pairs and timeframes.
- Open the pair in a new window — open a symbol in a new chart window by clicking.
- Chart template — the name of the template for the chart, if the chart opens in a new window.
- Coloring the cells according to the — color of the table cells according to the overbought / oversold levels or according to the direction of the previous candle.
- Check Lines crossing only in OB/OS zones — determine the intersection of Lines only in Overbought/Oversold zones.
- Color Up — cell color if the indicator increases or crossed overbought level.
- Color Down — cell color if the indicator decreases or crossed oversold level.
- Color Stop — cell color if the indicator does not change.

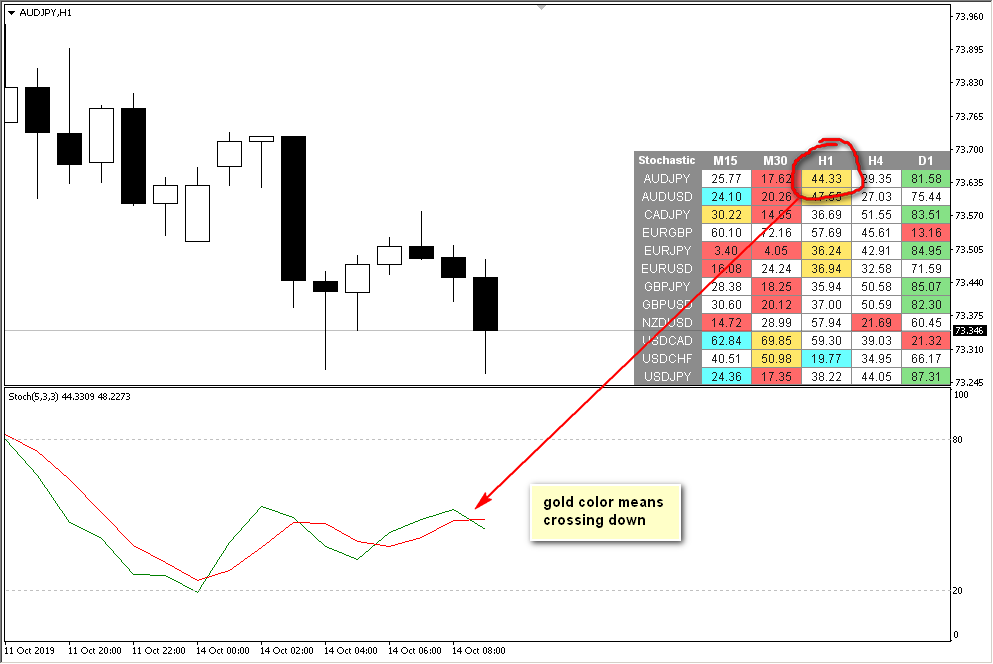

- Color when crossing Lines Up — cell color when the Main line crosses the Signal line up.
- Color when crossing Lines Down — cell color when the Main line crosses the Signal line down.
- Transparency (0-255) — transparency of the panel.
- Font name — font name.
- Font size — font size.
- Overbought level — overbought level for alerts.
- Oversold level — oversold level for alerts.
- Middle Level (0 - turn off this alert) — third level crossing check (alert only). If zero is specified, checking for this level is disabled.
- Check alerts only on bar closing — check alerts only when the bar is closed.
- Overbought/Oversold (entry into the zone) — send alert when entering the overbought or oversold zone.
- Overbought/Oversold (exit from the zone) — send alert when leaving the overbought or oversold zone.
- Main line crosses the Signal line Up — alert when the Main line crosses the Signal line up.
- Main line crosses the Signal line Down — alert when the Main line crosses the Signal line down.
- All timeframes are Overbought/Oversold — alert when all periods enter the overbought or oversold zone.
- Timeframes for alerts (separated by a space or semicolon) — list of periods for which the alert will be sent (separated by a space or semicolon).
- Pop up alert — pop-up alert.
- Push notifications — push notification.
- E-mail notifications — e-mail notification.
- Sound alert — sound alert.
- Sound when crossing Stochastic Lines — the name of the sound file when crossing the Stochastic Lines. The file must be located in terminal_directory\Sounds or its sub-directory. Only WAV files are played.
- Sound when Overbought/Oversold Levels — the name of the sound file when crossing Overbought/Oversold levels.
- Sound when crossing Middle Level — the name of the sound file when crossing the Middle line.
