Simple ZigZag modification

#1
First Post: Mar 2, 2017 3:31pm Mar 2, 2017 3:31pm

Expo33
Joined Aug 2013 | Status: Trader | 4,895 Posts

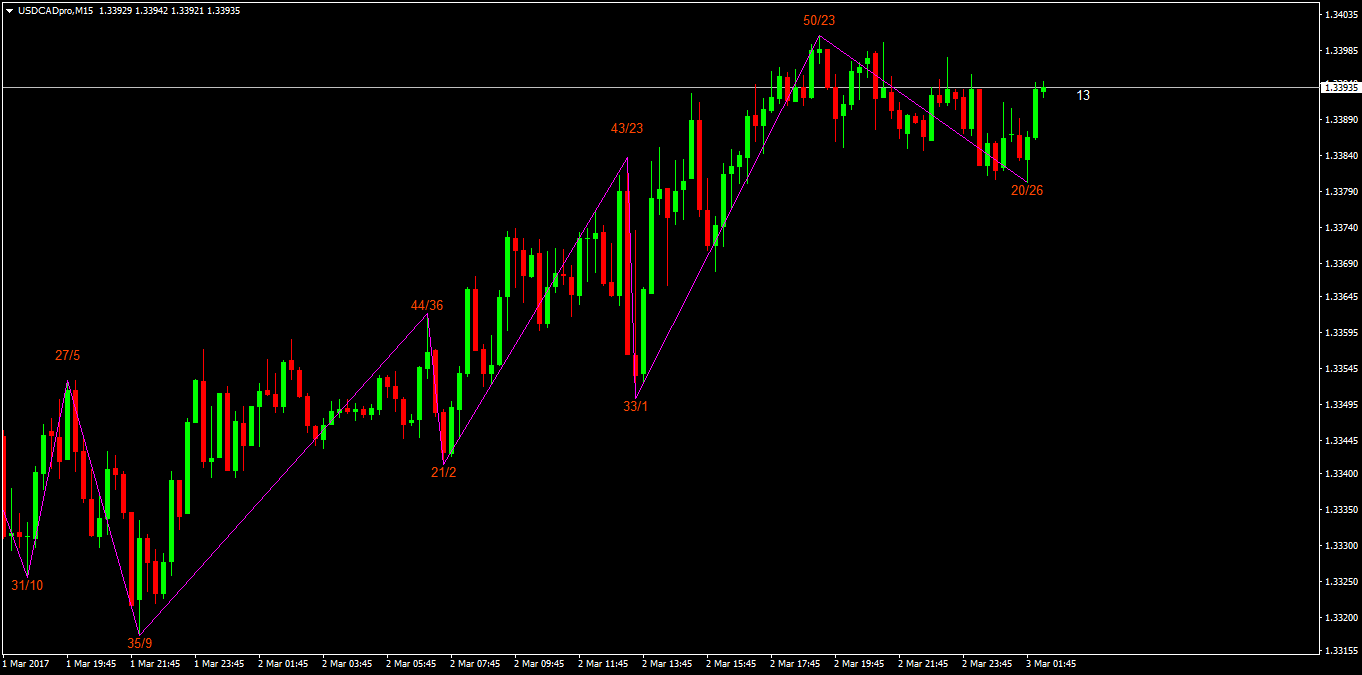

Hello friends,

I have tried to do this on my own but just can't figure it out. Can someone modify this indicator to get rid of the pip decimal place and also make the slash mark white so it looks like below. The left number shows the total pips moved and the right number is the total candles.

Thank you in advance for any help

Attached Image

Attached File(s)

ZIGZAG-VALUE.mq4 17 KB | 787 downloads

Pride always comes before destruction.... -Proverbs 16:18

#2
Mar 2, 2017 5:58pm Mar 2, 2017 5:58pm

lukeb
Joined Dec 2009 | Status: Trader | 250 Posts

Quoting Expo33

Disliked

... modify this indicator to get rid of the pip decimal place and also make the slash mark white ....{image} {file}

Ignored

easy to get rid of the decimal, find this:
DoubleToStr(MathAbs(d3-d2)/Pip,1)+"/"
and make it
DoubleToStr(MathAbs(d3-d2)/Pip,0)+"/"

Much harder to make that slash white. One way would be to make that single object into 3 objects and display three together.

#3
Mar 2, 2017 6:22pm Mar 2, 2017 6:22pm

TooSlow
Joined Mar 2012 | Status: Trader | 14,314 Posts

Attached Image (click to enlarge)

Click to Enlarge

Name: TooSlow.png
Size: 50 KB

Sorry no white slash.

Inserted Code


#property copyright "Copyright 2010, [email protected]."
#property link      "mailto:[email protected]"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Magenta
//---- indicator parameters
extern int ExtDepth=12;
extern int ExtDeviation=5;
extern int ExtBackstep=3;
//---- indicator buffers
double ZigzagBuffer[];
double HighMapBuffer[];
double LowMapBuffer[];
int level=3; // recounting's depth
bool downloadhistory=false;
double Pip;
bool Started=False;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorBuffers(3);
//---- drawing settings
   SetIndexStyle(0,DRAW_SECTION);
//---- indicator buffers mapping
   SetIndexBuffer(0,ZigzagBuffer);
   SetIndexBuffer(1,HighMapBuffer);
   SetIndexBuffer(2,LowMapBuffer);
   SetIndexEmptyValue(0,0.0);
//---- indicator short name
   IndicatorShortName("ZigZag("+ExtDepth+","+ExtDeviation+","+ExtBackstep+")");
   if(Digits==3 || Digits==5) Pip = 10*Point;
   else Pip = Point;
//---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int deinit()
  {
    DelObj();
    return(0);
  }
void DelObj()
  {
   string ObjName;
   for(int i=ObjectsTotal()-1; i>=0; i--)
   {
     ObjName = ObjectName(i);
     if(StringFind(ObjName,"ZZLabel",0)>=0)
       ObjectDelete(ObjName);
   }
   return;
  }
int start()
  {
   int i, counted_bars = IndicatorCounted();
   int limit,counterZ,whatlookfor;
   int shift,back,lasthighpos,lastlowpos;
   double val,res;
   double curlow,curhigh,lasthigh,lastlow;
   if (counted_bars==0 && downloadhistory) // history was downloaded
     {
      ArrayInitialize(ZigzagBuffer,0.0);
      ArrayInitialize(HighMapBuffer,0.0);
      ArrayInitialize(LowMapBuffer,0.0);
     }
   if (counted_bars==0)
     {
      limit=Bars-ExtDepth;
      downloadhistory=true;
     }
   if (counted_bars>0)
     {
      while (counterZ<level && i<100)
        {
         res=ZigzagBuffer[i];
         if (res!=0) counterZ++;
         i++;
        }
      i--;
      limit=i;
      if (LowMapBuffer[i]!=0)
        {
         curlow=LowMapBuffer[i];
         whatlookfor=1;
        }
      else
        {
         curhigh=HighMapBuffer[i];
         whatlookfor=-1;
        }
      for (i=limit-1;i>=0;i--)
        {
         ZigzagBuffer[i]=0.0;
         LowMapBuffer[i]=0.0;
         HighMapBuffer[i]=0.0;
        }
     }

   for(shift=limit; shift>=0; shift--)
     {
      val=Low[iLowest(NULL,0,MODE_LOW,ExtDepth,shift)];
      if(val==lastlow) val=0.0;
      else
        {
         lastlow=val;
         if((Low[shift]-val)>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=LowMapBuffer[shift+back];
               if((res!=0)&&(res>val)) LowMapBuffer[shift+back]=0.0;
              }
           }
        }
      if (Low[shift]==val) LowMapBuffer[shift]=val; else LowMapBuffer[shift]=0.0;
      //--- high
      val=High[iHighest(NULL,0,MODE_HIGH,ExtDepth,shift)];
      if(val==lasthigh) val=0.0;
      else
        {
         lasthigh=val;
         if((val-High[shift])>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=HighMapBuffer[shift+back];
               if((res!=0)&&(res<val)) HighMapBuffer[shift+back]=0.0;
              }
           }
        }
      if (High[shift]==val) HighMapBuffer[shift]=val; else HighMapBuffer[shift]=0.0;
     }
   // final cutting
   if (whatlookfor==0)
     {
      lastlow=0;
      lasthigh=0;
     }
   else
     {
      lastlow=curlow;
      lasthigh=curhigh;
     }
   for (shift=limit;shift>=0;shift--)
     {
      res=0.0;
      bool OutOfForLoop=False;
      switch(whatlookfor)
        {
         case 0: // look for peak or lawn
            if (lastlow==0 && lasthigh==0)
              {
               if (HighMapBuffer[shift]!=0)
                 {
                  lasthigh=High[shift];
                  lasthighpos=shift;
                  whatlookfor=-1;
                  ZigzagBuffer[shift]=lasthigh;
                  res=1;
                 }
               if (LowMapBuffer[shift]!=0)
                 {
                  lastlow=Low[shift];
                  lastlowpos=shift;
                  whatlookfor=1;
                  ZigzagBuffer[shift]=lastlow;
                  res=1;
                 }
              }
             break;
         case 1: // look for peak
            if (LowMapBuffer[shift]!=0.0 && LowMapBuffer[shift]<lastlow && HighMapBuffer[shift]==0.0)
              {
               ZigzagBuffer[lastlowpos]=0.0;
               lastlowpos=shift;
               lastlow=LowMapBuffer[shift];
               ZigzagBuffer[shift]=lastlow;
               res=1;
              }
            if (HighMapBuffer[shift]!=0.0 && LowMapBuffer[shift]==0.0)
              {
               lasthigh=HighMapBuffer[shift];
               lasthighpos=shift;
               ZigzagBuffer[shift]=lasthigh;
               whatlookfor=-1;
               res=1;
              }
            break;
         case -1: // look for lawn
            if (HighMapBuffer[shift]!=0.0 && HighMapBuffer[shift]>lasthigh && LowMapBuffer[shift]==0.0)
              {
               ZigzagBuffer[lasthighpos]=0.0;
               lasthighpos=shift;
               lasthigh=HighMapBuffer[shift];
               ZigzagBuffer[shift]=lasthigh;
              }
            if (LowMapBuffer[shift]!=0.0 && HighMapBuffer[shift]==0.0)
              {
               lastlow=LowMapBuffer[shift];
               lastlowpos=shift;
               ZigzagBuffer[shift]=lastlow;
               whatlookfor=1;
              }
            break;
         default: OutOfForLoop=True;
        }
        if(OutOfForLoop) break;
     }
     //////////////////
     if(counted_bars<1)
     {
       DelObj();
       limit = Bars-1;
     }
     else limit = 0;
     for(i = limit; i>=0; i--)
     {
     int k = i;
     double zz;
     double d1=0,d2=0,d3=0;
     datetime t1=0,t2=0,t3=0;
     while(k<Bars-2)
     {
       zz = ZigzagBuffer[k];
       if(zz!=0)
       {
         d1 = d2; d2 = d3; d3 = zz;
         t1 = t2; t2 = t3; t3 = Time[k];
       }
       if(d1>0) break;
       k++;
     }
     if(d1==0) continue;
     double LabelPos;
     int ib = iBarShift(NULL,0,t1);
     int ib2 = iBarShift(NULL,0,t2);
     if(d1>d2) LabelPos = NormalizeDouble(High[ib]+0.5*iATR(NULL,0,10,ib),Digits);
     else LabelPos = Low[ib];
     string ObjName = "ZZLabel_Leg1";
     if(ObjectFind(ObjName)<0)
       ObjectCreate(ObjName,OBJ_TEXT,0,t1,LabelPos);
     else
       ObjectMove(ObjName,0,t1,LabelPos);
     ObjectSetText(ObjName,DoubleToStr(MathAbs(d2-d1)/Pip,0)+"/"+DoubleToStr(MathAbs(ib-ib2),0),10,"Arial",OrangeRed);
     //////////////////////
     if(i==0)
     {
     LabelPos = Close[0];
     ObjName = "ZZLabel_Bid";
     int rOffset = 5*Period()*60;
     if(ObjectFind(ObjName)<0)
       ObjectCreate(ObjName,OBJ_TEXT,0,Time[0]+rOffset,LabelPos);
     else
       ObjectMove(ObjName,0,Time[0]+rOffset,LabelPos);
     ObjectSetText(ObjName,DoubleToStr(MathAbs(Close[0]-d1)/Pip,0),10,"Arial",White);
     }
     //////////////////////
     ib = iBarShift(NULL,0,t2);
     ib2 = iBarShift(NULL,0,t3);
     if(d2>d3) LabelPos = NormalizeDouble(High[ib]+0.5*iATR(NULL,0,10,ib),Digits);
     else LabelPos = Low[ib];
     ObjName = "ZZLabel"+t1;
     if(ObjectFind(ObjName)<0)
     {
       ObjectCreate(ObjName,OBJ_TEXT,0,t2,LabelPos);
       ObjectSetText(ObjName,DoubleToStr(MathAbs(d3-d2)/Pip,0)+"/"+DoubleToStr(MathAbs(ib-ib2),0),10,"Arial",OrangeRed);


     }
     }
     //////////////////
   return(0);
  }
//+------------------------------------------------------------------+

My Threads: Trading is as simple as 1-2-3, Highest Open / Lowest Open Trade

#4
Mar 2, 2017 7:16pm Mar 2, 2017 7:16pm

Expo33
Joined Aug 2013 | Status: Trader | 4,895 Posts

Quoting lukeb

Disliked

{quote} easy to get rid of the decimal, find this: DoubleToStr(MathAbs(d3-d2)/Pip,1)+"/" and make it DoubleToStr(MathAbs(d3-d2)/Pip,0)+"/" Much harder to make that slash white. One way would be to make that single object into 3 objects and display three together.

Ignored

Thank you very much. I have done that and it worked perfectly

Pride always comes before destruction.... -Proverbs 16:18

#5
Mar 2, 2017 7:19pm Mar 2, 2017 7:19pm

Expo33
Joined Aug 2013 | Status: Trader | 4,895 Posts

Quoting TooSlow

Disliked

{image} Sorry no white slash. #property copyright "Copyright 2010, [email protected]." #property link "mailto:[email protected]" #property indicator_chart_window #property indicator_buffers 1 #property indicator_color1 Magenta //---- indicator parameters extern int ExtDepth=12; extern int ExtDeviation=5; extern int ExtBackstep=3; //---- indicator buffers double ZigzagBuffer[]; double HighMapBuffer[]; double LowMapBuffer[]; int level=3; // recounting's depth bool downloadhistory=false; double Pip; bool Started=False; //+------------------------------------------------------------------+...

Ignored

Thank you for your input.

Would it be easier or possible to just display the second number in a different color or is that basically the same problem?

Pride always comes before destruction.... -Proverbs 16:18

#6
Mar 2, 2017 7:32pm Mar 2, 2017 7:32pm

Expo33
Joined Aug 2013 | Status: Trader | 4,895 Posts

In the meantime I just put an "=" in there with some extra space to avoid any confusion and to help my old eyes. Much better than the way it was before. Thanks again.

Attached Image

Pride always comes before destruction.... -Proverbs 16:18

#7
Mar 2, 2017 10:30pm Mar 2, 2017 10:30pm

goodways100
Joined Dec 2013 | Status: Trader | 615 Posts

Can you kindly give the new updated ZigZag value indi. Thanks and
Regards

#8
Mar 3, 2017 2:50am Mar 3, 2017 2:50am

Expo33
Joined Aug 2013 | Status: Trader | 4,895 Posts

Quoting goodways100

Disliked

Can you kindly give the new updated ZigZag value indi. Thanks and Regards

Ignored

Just saw your post, here it is:

Attached File(s)

ZIGZAGPIPS.mq4 17 KB | 905 downloads

ZIGZAGPIPS.ex4 21 KB | 696 downloads

Pride always comes before destruction.... -Proverbs 16:18

#9
Mar 3, 2017 6:31am Mar 3, 2017 6:31am

TooSlow
Joined Mar 2012 | Status: Trader | 14,314 Posts

Attached Image (click to enlarge)

Click to Enlarge

Name: TooSlow2.png
Size: 50 KB

Input added to allow for separator of your choice.

Inserted Code

#property copyright "Copyright © 2010, [email protected]."
#property link      "mailto:[email protected]"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Magenta
//---- indicator parameters
extern int ExtDepth=12;
extern int ExtDeviation=5;
extern int ExtBackstep=3;
extern string UseSeperator = ":" ;
//---- indicator buffers
double ZigzagBuffer[];
double HighMapBuffer[];
double LowMapBuffer[];
int level=3; // recounting's depth
bool downloadhistory=false;
double Pip;
bool Started=False;
string Seperator = ":" ;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorBuffers(3);
//---- drawing settings
   SetIndexStyle(0,DRAW_SECTION);
//---- indicator buffers mapping
   SetIndexBuffer(0,ZigzagBuffer);
   SetIndexBuffer(1,HighMapBuffer);
   SetIndexBuffer(2,LowMapBuffer);
   SetIndexEmptyValue(0,0.0);
//---- indicator short name
   IndicatorShortName("ZigZag("+ExtDepth+","+ExtDeviation+","+ExtBackstep+")");
   if(Digits==3 || Digits==5) Pip = 10*Point;
   else Pip = Point;

   Seperator = " "+UseSeperator+" ";
//---- initialization done

   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int deinit()
  {
    DelObj();
    return(0);
  }
void DelObj()
  {
   string ObjName;
   for(int i=ObjectsTotal()-1; i>=0; i--)
   {
     ObjName = ObjectName(i);
     if(StringFind(ObjName,"ZZLabel",0)>=0)
       ObjectDelete(ObjName);
   }
   return;
  }
int start()
  {
   int i, counted_bars = IndicatorCounted();
   int limit,counterZ,whatlookfor;
   int shift,back,lasthighpos,lastlowpos;
   double val,res;
   double curlow,curhigh,lasthigh,lastlow;
   if (counted_bars==0 && downloadhistory) // history was downloaded
     {
      ArrayInitialize(ZigzagBuffer,0.0);
      ArrayInitialize(HighMapBuffer,0.0);
      ArrayInitialize(LowMapBuffer,0.0);
     }
   if (counted_bars==0)
     {
      limit=Bars-ExtDepth;
      downloadhistory=true;
     }
   if (counted_bars>0)
     {
      while (counterZ<level && i<100)
        {
         res=ZigzagBuffer[i];
         if (res!=0) counterZ++;
         i++;
        }
      i--;
      limit=i;
      if (LowMapBuffer[i]!=0)
        {
         curlow=LowMapBuffer[i];
         whatlookfor=1;
        }
      else
        {
         curhigh=HighMapBuffer[i];
         whatlookfor=-1;
        }
      for (i=limit-1;i>=0;i--)
        {
         ZigzagBuffer[i]=0.0;
         LowMapBuffer[i]=0.0;
         HighMapBuffer[i]=0.0;
        }
     }

   for(shift=limit; shift>=0; shift--)
     {
      val=Low[iLowest(NULL,0,MODE_LOW,ExtDepth,shift)];
      if(val==lastlow) val=0.0;
      else
        {
         lastlow=val;
         if((Low[shift]-val)>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=LowMapBuffer[shift+back];
               if((res!=0)&&(res>val)) LowMapBuffer[shift+back]=0.0;
              }
           }
        }
      if (Low[shift]==val) LowMapBuffer[shift]=val; else LowMapBuffer[shift]=0.0;
      //--- high
      val=High[iHighest(NULL,0,MODE_HIGH,ExtDepth,shift)];
      if(val==lasthigh) val=0.0;
      else
        {
         lasthigh=val;
         if((val-High[shift])>(ExtDeviation*Point)) val=0.0;
         else
           {
            for(back=1; back<=ExtBackstep; back++)
              {
               res=HighMapBuffer[shift+back];
               if((res!=0)&&(res<val)) HighMapBuffer[shift+back]=0.0;
              }
           }
        }
      if (High[shift]==val) HighMapBuffer[shift]=val; else HighMapBuffer[shift]=0.0;
     }
   // final cutting
   if (whatlookfor==0)
     {
      lastlow=0;
      lasthigh=0;
     }
   else
     {
      lastlow=curlow;
      lasthigh=curhigh;
     }
   for (shift=limit;shift>=0;shift--)
     {
      res=0.0;
      bool OutOfForLoop=False;
      switch(whatlookfor)
        {
         case 0: // look for peak or lawn
            if (lastlow==0 && lasthigh==0)
              {
               if (HighMapBuffer[shift]!=0)
                 {
                  lasthigh=High[shift];
                  lasthighpos=shift;
                  whatlookfor=-1;
                  ZigzagBuffer[shift]=lasthigh;
                  res=1;
                 }
               if (LowMapBuffer[shift]!=0)
                 {
                  lastlow=Low[shift];
                  lastlowpos=shift;
                  whatlookfor=1;
                  ZigzagBuffer[shift]=lastlow;
                  res=1;
                 }
              }
             break;
         case 1: // look for peak
            if (LowMapBuffer[shift]!=0.0 && LowMapBuffer[shift]<lastlow && HighMapBuffer[shift]==0.0)
              {
               ZigzagBuffer[lastlowpos]=0.0;
               lastlowpos=shift;
               lastlow=LowMapBuffer[shift];
               ZigzagBuffer[shift]=lastlow;
               res=1;
              }
            if (HighMapBuffer[shift]!=0.0 && LowMapBuffer[shift]==0.0)
              {
               lasthigh=HighMapBuffer[shift];
               lasthighpos=shift;
               ZigzagBuffer[shift]=lasthigh;
               whatlookfor=-1;
               res=1;
              }
            break;
         case -1: // look for lawn
            if (HighMapBuffer[shift]!=0.0 && HighMapBuffer[shift]>lasthigh && LowMapBuffer[shift]==0.0)
              {
               ZigzagBuffer[lasthighpos]=0.0;
               lasthighpos=shift;
               lasthigh=HighMapBuffer[shift];
               ZigzagBuffer[shift]=lasthigh;
              }
            if (LowMapBuffer[shift]!=0.0 && HighMapBuffer[shift]==0.0)
              {
               lastlow=LowMapBuffer[shift];
               lastlowpos=shift;
               ZigzagBuffer[shift]=lastlow;
               whatlookfor=1;
              }
            break;
         default: OutOfForLoop=True;
        }
        if(OutOfForLoop) break;
     }
     //////////////////
     if(counted_bars<1)
     {
       DelObj();
       limit = Bars-1;
     }
     else limit = 0;
     for(i = limit; i>=0; i--)
     {
     int k = i;
     double zz;
     double d1=0,d2=0,d3=0;
     datetime t1=0,t2=0,t3=0;
     while(k<Bars-2)
     {
       zz = ZigzagBuffer[k];
       if(zz!=0)
       {
         d1 = d2; d2 = d3; d3 = zz;
         t1 = t2; t2 = t3; t3 = Time[k];
       }
       if(d1>0) break;
       k++;
     }
     if(d1==0) continue;
     double LabelPos;
     int ib = iBarShift(NULL,0,t1);
     int ib2 = iBarShift(NULL,0,t2);
     if(d1>d2) LabelPos = NormalizeDouble(High[ib]+0.5*iATR(NULL,0,10,ib),Digits);
     else LabelPos = Low[ib];
     string ObjName = "ZZLabel_Leg1";
     if(ObjectFind(ObjName)<0)
       ObjectCreate(ObjName,OBJ_TEXT,0,t1,LabelPos);
     else
       ObjectMove(ObjName,0,t1,LabelPos);
     ObjectSetText(ObjName,DoubleToStr(MathAbs(d2-d1)/Pip,0)+Seperator+DoubleToStr(MathAbs(ib-ib2),0),10,"Arial",OrangeRed);
     //////////////////////
     if(i==0)
     {
     LabelPos = Close[0];
     ObjName = "ZZLabel_Bid";
     int rOffset = 5*Period()*60;
     if(ObjectFind(ObjName)<0)
       ObjectCreate(ObjName,OBJ_TEXT,0,Time[0]+rOffset,LabelPos);
     else
       ObjectMove(ObjName,0,Time[0]+rOffset,LabelPos);
     ObjectSetText(ObjName,DoubleToStr(MathAbs(Close[0]-d1)/Pip,1),10,"Arial",White);
     }
     //////////////////////
     ib = iBarShift(NULL,0,t2);
     ib2 = iBarShift(NULL,0,t3);
     if(d2>d3) LabelPos = NormalizeDouble(High[ib]+0.5*iATR(NULL,0,10,ib),Digits);
     else LabelPos = Low[ib];
     ObjName = "ZZLabel"+t1;
     if(ObjectFind(ObjName)<0)
     {
       ObjectCreate(ObjName,OBJ_TEXT,0,t2,LabelPos);
       ObjectSetText(ObjName,DoubleToStr(MathAbs(d3-d2)/Pip,0)+Seperator+DoubleToStr(MathAbs(ib-ib2),0),10,"Arial",OrangeRed);
     }
     }
     //////////////////
   return(0);
  }
//+------------------------------------------------------------------+

My Threads: Trading is as simple as 1-2-3, Highest Open / Lowest Open Trade

#10
Mar 3, 2017 7:43am Mar 3, 2017 7:43am

Expo33
Joined Aug 2013 | Status: Trader | 4,895 Posts

Quoting TooSlow

Disliked

{image} Input added to allow for separator of your choice. #property copyright "Copyright 2010, [email protected]." #property link "mailto:[email protected]" #property indicator_chart_window #property indicator_buffers 1 #property indicator_color1 Magenta //---- indicator parameters extern int ExtDepth=12; extern int ExtDeviation=5; extern int ExtBackstep=3; extern string UseSeperator = ":" ; //---- indicator buffers double ZigzagBuffer[]; double HighMapBuffer[]; double LowMapBuffer[]; int level=3; // recounting's depth bool downloadhistory=false;...

Ignored

Thank you

Pride always comes before destruction.... -Proverbs 16:18

#11
Mar 4, 2017 4:50pm Mar 4, 2017 4:50pm

lukeb
Joined Dec 2009 | Status: Trader | 250 Posts

Quoting Expo33

Disliked

Hello friends, I have tried to do this on my own but just can't figure it out. Can someone modify this indicator to get rid of the pip decimal place and also make the slash mark white so it looks like below. The left number shows the total pips moved and the right number is the total candles. Thank you in advance for any help {image} {file}

Ignored

Here's a considerably cleaned up version with the White slash:

Attached Image

Attached File(s)

ZIGZAG-VALUE.mq4 31 KB | 839 downloads

#12
Mar 5, 2017 7:03am Mar 5, 2017 7:03am

ramzam
Joined Nov 2015 | Status: Trader | 2,976 Posts

Quoting lukeb

Disliked

{quote} Here's a considerably cleaned up version with the White slash: {image} {file}

Ignored

can you add this type of line ... like in this page...

Attached Image (click to enlarge)

Click to Enlarge

Name: Screenshot1.png
Size: 10 KB

Success is a Journey Not a Destination....... kind regards ramzam

#13
Mar 5, 2017 12:39pm Mar 5, 2017 12:39pm

lukeb
Joined Dec 2009 | Status: Trader | 250 Posts

Quoting ramzam

Disliked

{quote} can you add this type of line ... like in this page... {image}

Ignored

You sure you are not just looking for this? Click on the text strings to change the settings - I suggest "No fibo Display" for the 2nd fibo.

Attached File(s)

ZagZigFibo upload.mq4 61 KB | 1,011 downloads

#14
Mar 5, 2017 11:08pm Mar 5, 2017 11:08pm

Expo33
Joined Aug 2013 | Status: Trader | 4,895 Posts

Quoting lukeb

Disliked

{quote} Here's a considerably cleaned up version with the White slash: {image} {file}

Ignored

Just noticed your post.

Perfect!! Thank you so much!

Pride always comes before destruction.... -Proverbs 16:18

#15
Dec 14, 2018 6:11am Dec 14, 2018 6:11am

forex2018091
| Joined Sep 2018 | Status: Trader | 3 Posts

So I love the indicator zigzag with values. I would like to know if it is possible to show the price at the tops and bottoms of this indicator. Maybe replace the time [#of bars] and replace it with price.

#16
Last Post: May 9, 2020 2:06am May 9, 2020 2:06am

ramzam
Joined Nov 2015 | Status: Trader | 2,976 Posts

anything possible to convert into mq4

Attached File(s)

zigzag_nk_fibo.mq5 19 KB | 583 downloads

Success is a Journey Not a Destination....... kind regards ramzam

Platform Tech
/
Simple ZigZag modification
Reply to Thread

0 traders viewing now

Options

Similar Threads

Simple ZigZag modification
