MT4 MTF Correlation table and Correlation oscillator indicators

  • #41
  • Mar 17, 2014 5:12am Mar 17, 2014 5:12am
Good Morning I'm trying to install this indicator on MT4 Version 4.00 Build 610 but it doesn't work.
I have just enabled on tools --> EA --> Allow DLL Imports (Image_untitled 1)
I find the indicators under "Custom indicators" ... ninety47_correlation_oscillator and ninety47_correlation_table but when I try to attach them to the graph nothing happens.
Going in Terminal --> Experts I get these errors: (Untitled 2)

I have followed your instructions in order to install the indicator but I have not understood well . There are a lot of file, different version etc etc

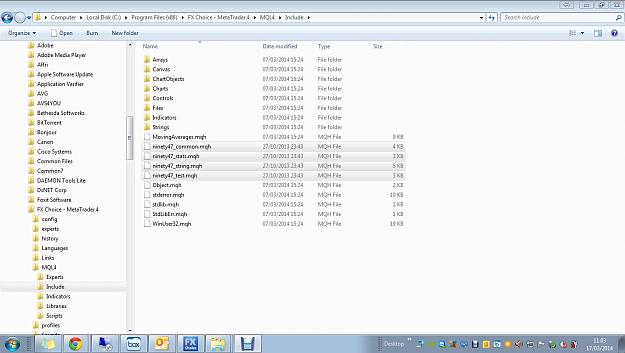

However where I have installed your indicator is shown from picture 3 to 7

-----------------------------------------------------------------------------------------------------------------------------------------

I have downloaded these files:



  1. http://ninety47.github.io/mt4-indies
  2. http://ninety47.github.io/mt4-libs

and followed this part
​

  1. ninety47-mt-libs/stats/libraries/libninety47stats-0.1.dll to <MT4_HOME>/experts/libraries/libninety47stats-0.1.dll
  2. ninety47-mt-libs/stats/include/ninety47_stats.mqh to <MT4_HOME>/experts/include/ninety47_stats.mqh

Note the folder name "ninety47-mt-libs" may be different for you. Now simply repeat this process for each dependency:

  1. ninety47_common
  2. ninety47_string
  3. ninety47_stats

Note that <MT4_HOME> refers to the location you've installed Meta Trader 4 e.g. "C:\\Metatrader" To install the indicators, again assuming you've downloaded zip files, copy:

  1. ninety47-mt-indies/correlation/indicators/ninety47_correlation_oscillator.mq4 to
    <MT4_HOME>/experts/indicators/ninety47_correlation_oscillator.mq4
  2. ninety47-mt-libs/correlation/indicators/ninety47_correlation_table.mq4 to
    <MT4_HOME>/experts/indicators/ninety47_correlation_table.mq4

Lastly you need to enable DLL imports in the MT4. To do this open the Options window (press Ctrl + O) and look under "Expert Advisors" tab.

Attached Image(s) (click to enlarge)
Click to Enlarge Name: Untitled 2.jpg Size: 169 KB
Click to Enlarge Name: Untitled 4.jpg Size: 324 KB
Click to Enlarge Name: Untitled 5.jpg Size: 342 KB
Click to Enlarge Name: Untitled 6.jpg Size: 396 KB
Click to Enlarge Name: Untitled 7.jpg Size: 255 KB
Attached Images
  • #42
  • Mar 24, 2014 4:28pm Mar 24, 2014 4:28pm
Hi Devart,

How did you on with the indicators? It appears that you need to compile the files, its looking for ".ex4" files and currently (well in those pictures) you only "mq4" files. I haven't tried the indicator out build MT4 610 yet - namely because I'm not using MT4 at the moment.

Let me know how you get on and I'll see if I can find some time to update the code base. The upside is that most of the supports libraries aren't need with new version of MQ4.

Regards,

ninety47
  • #43
  • Mar 24, 2014 5:11pm Mar 24, 2014 5:11pm
Quoting 9047
Hi Devart, How did you on with the indicators? It appears that you need to compile the files, its looking for ".ex4" files and currently (well in those pictures) you only "mq4" files. I haven't tried the indicator out build MT4 610 yet - namely because I'm not using MT4 at the moment. Let me know how you get on and I'll see if I can find some time to update the code base. The upside is that most of the supports libraries aren't need with new version of MQ4. Regards, ninety47
Good evening.
About the indicators I pasted them in their directory.
However doing the debug I get these several errors.

Kind Regards,
Devart
Attached Image(s) (click to enlarge)
Click to Enlarge Name: Untitled 5.jpg Size: 760 KB
Click to Enlarge Name: Untitled 6.jpg Size: 821 KB
Click to Enlarge Name: Untitled 7.jpg Size: 807 KB
Click to Enlarge Name: Untitled 8.jpg Size: 608 KB
  • #44
  • Mar 24, 2014 6:02pm Mar 24, 2014 6:02pm
Say thanks and bye to Metatrades for their new Core Version and switch to a another tradig prog.

A lot of things stopped to work with the 'update'..
How to opt out annoying user signatures ??
  • #45
  • Mar 25, 2014 2:52am Mar 25, 2014 2:52am
Quoting Toranaga
Say thanks and bye to Metatrades for their new Core Version and switch to a another tradig prog. A lot of things stopped to work with the 'update'..
ehhh I know... I really don't understood why they have upload MT4
  • #46
  • May 6, 2014 3:10am May 6, 2014 3:10am
This is a Great and usefull indicator, anyone having problem too? here is same, is not possible compile anyone this indies!
  • #47
  • May 6, 2014 3:14am May 6, 2014 3:14am
I think it will compile, but you may use the build 509 compiler/editor: http://www.forexfactory.com/showthread.php?t=470340
PM me with coding requests and I'll probably put you on my ignore list
  • #48
  • May 6, 2014 3:41am May 6, 2014 3:41am
I have Compiled with old Editor, now get some errors
2014.05.06 17:34:01.614 ninety47_correlation_table EURUSD,Daily: initialized
2014.05.06 17:35:27.428 ninety47_correlation_table EURUSD,Daily: deinitialized
2014.05.06 17:35:27.428 ninety47_correlation_table EURUSD,Daily: uninit reason 5

2014.05.06 17:35:27.428 Cannot open file 'C:\Program Files\HotForex MetaTrader\MQL4\Libraries\ninety47_string.ex4' [2]
2014.05.06 17:35:27.429 Cannot open file 'C:\Program Files\HotForex MetaTrader\MQL4\Indicators\ninety47_string.ex4' [2]
2014.05.06 17:35:27.429 ninety47_correlation_table EURUSD,Daily: cannot load external program 'ninety47_string'
2014.05.06 17:35:27.429 ninety47_correlation_table EURUSD,Daily: expert stopped
My MT4 Build is 625!
Attached File(s)
File Type: ex4 ninety47_correlation_table.ex4   14 KB | 795 downloads
  • #49
  • May 6, 2014 3:59am May 6, 2014 3:59am
Here is how I put, all these files in each Folder Inside of MQL folder.... Now Working Fine At Build 625!
Attached File(s)
File Type: rar 16052014.rar   26 KB | 1,069 downloads
  • #50
  • May 6, 2014 4:45am May 6, 2014 4:45am
Quoting andretsc
Here is how I put, all these files in each Folder Inside of MQL folder.... Now Working Fine At Build 625! {file}
thank you very much.
This was rather tricky, I think I got it to run also, pls. see attached.

I have renamed the indicators (and there seem to was an error in the table-indicator, I think it is fixed now) and added a hint text: When entering the pairs names you must add the suffixes (if your broker uses) also, so not EURUSD but e.g. EURUSDm (if symbol-suffix is m) ...

download all files -> the ninety47_correlation (...) Indicator.ex4 files belong to MQL4/Indicators

all the other files belong to MQL4/Libraries (do not forget to rename the .dll.txt file back to .dll ...


if you do not know where to find the directories, pls. read http://www.forexfactory.com/showthre...23#post7448823
Attached File(s)
File Type: ex4 ninety47_common.ex4   3 KB | 957 downloads
File Type: ex4 ninety47_string.ex4   5 KB | 969 downloads
File Type: ex4 ninety47_test.ex4   4 KB | 902 downloads
File Type: txt libninety47-stats-0.1.1.dll.txt   7 KB | 1,069 downloads
File Type: ex4 ninety47_correlation_oscillator Indicator.ex4   14 KB | 1,185 downloads
File Type: ex4 ninety47_correlation_table Indicator.ex4   12 KB | 1,086 downloads
PM me with coding requests and I'll probably put you on my ignore list
  • #51
  • May 23, 2014 3:55pm May 23, 2014 3:55pm
i really appreciate how this works on v600+ now, thank you guys so much for your effort.

is there any interest in modifying it to output values to a CSV file? i do my corr analysis in excel and can't seem to find an indi that will write a CSV (i.e. write a file every minute to ...\files folder) ?

i have tried modifying some correlation indi's, playing with bits of 'export' code from other indicators, but have just made a mess of it.
thanks again.
  • #52
  • Jun 22, 2014 9:19am Jun 22, 2014 9:19am
I placed all the includes into the oscillator file to make it easier for anyone to make any changes to it and get it compiled.

You only need to have the libninety47-stats-0.1.1.dll in order to compile this. Also I added maxBars so you can limit the number of bars back this will calculate for. This would really speed things up if you want to get the last 500 bar correlation for example.

Thank you 9047 for creating this awesome indicator!
Attached File(s)
File Type: ex4 ninety47_correlation_oscillator.ex4   46 KB | 1,099 downloads
File Type: mq4 ninety47_correlation_oscillator.mq4   19 KB | 1,451 downloads
Focus, Patience, Determination & Order in chaos
  • #53
  • Jun 24, 2014 11:25am Jun 24, 2014 11:25am
Quoting saver0
I placed all the includes into the oscillator file to make it easier for anyone to make any changes to it and get it compiled. You only need to have the libninety47-stats-0.1.1.dll in order to compile this. Also I added maxBars so you can limit the number of bars back this will calculate for. This would really speed things up if you want to get the last 500 bar correlation for example. Thank you 9047 for creating this awesome indicator! {file} {file}
Generous as always . Thanks for sharing .
People wont learn to post analysis in forums not "I think its down/up!"
  • #54
  • Jul 19, 2014 10:33am Jul 19, 2014 10:33am
Hi all,

I've been trying to manipulate the indicators in order to make them work with custom timeframes (M2, M3, ... in offline charts). I've compiled all the files with the latest build compilator (build 670) with no errors and the indicators work perfectly on regular timeframes.

When the original code was written, the compilator didn't allow you to code anything related to any custom period, so I think there must be someting in the code that doesn't allow to compute the custom timeframes, but I can't find any solution.

Any help would be appreciated. Thanks.
  • #55
  • Edited 7:58pm Jul 30, 2014 4:34pm | Edited 7:58pm
Quoting saver0
I placed all the includes into the oscillator file to make it easier for anyone to make any changes to it and get it compiled. You only need to have the libninety47-stats-0.1.1.dll in order to compile this. Also I added maxBars so you can limit the number of bars back this will calculate for. This would really speed things up if you want to get the last 500 bar correlation for example. Thank you 9047 for creating this awesome indicator! {file} {file}
Very cool. I don't know if the table would compile before, but I modified it like you did the oscillator and it works fine.
Attached File(s)
File Type: mq4 ninety47_correlation_table.mq4   13 KB | 1,208 downloads

Here's another small change. Red and pink for lowest two correlations, Green and light green for the highest. Just makes it easier to see at a glance.
Attached File(s)
File Type: mq4 ninety47_correlation_tableRG.mq4   15 KB | 1,672 downloads
  • #56
  • Dec 19, 2014 10:19pm Dec 19, 2014 10:19pm
Hi all,

I am looking for Correlation tables in this format for 28pairs.

its an excel screen shot which i have posted. if indicator generate all pairs correlation values into text format or CVS format then i can easily copy and past to my excel.

please help me.

thanks & regards

Hukam
Attached Image (click to enlarge)
Click to Enlarge Name: correlation table.png Size: 37 KB
  • #57
  • Edited Jan 9, 2015 11:13pm Jan 8, 2015 11:21pm | Edited Jan 9, 2015 11:13pm
Edit: Below I mention an error that kept me from compiling. I resolved issue by using older MT4 functions instead of newer ones to build indicator. See a couple posts below this one for resulting indicator.

Hukam,,

I was able to make the layout in MQL4 (for chart in MT4), and made a function to call the dll which contains the correlation function, but when I compile, it says that for x and y, arrays are passed by reference only, gives 2 errors and won't compile.

Kindest regards,

Don
  • #58
  • Jan 9, 2015 12:24am Jan 9, 2015 12:24am
Quoting 9047
.
Looks pretty cool.

Will check over the weekend.

Thanks for sharing

Rooi
We miss 100% of the shots we don't take
  • #59
  • Edited 11:30pm Jan 9, 2015 11:11pm | Edited 11:30pm
Hukam,

Attached you should see what you wanted, although I didn't go through labor of writing this to excel file. What you need is on chart screen. Note: Correlation changes when timeframe changes, just like other ninety47 indicators that use the same function. Note2: Problem I was having before was using newer MT4 functions for indicator instead of older MT4 functions for init, deist and start.

Kindest regards,

Don

Attached File(s)
File Type: ex4 Correlation Table_Don.ex4   16 KB | 1,388 downloads

Attached Image (click to enlarge)
Click to Enlarge Name: Screen Shot 2015-01-09 at 11.28.41 PM.png Size: 266 KB
  • #60
  • Jan 10, 2015 2:17am Jan 10, 2015 2:17am
Quoting disbellj
Hukam, Attached you should see what you wanted, although I didn't go through labor of writing this to excel file. What you need is on chart screen. Note: Correlation changes when timeframe changes, just like other ninety47 indicators that use the same function. Note2: Problem I was having before was using newer MT4 functions for indicator instead of older MT4 functions for init, deist and start. Kindest regards, Don {file} {image}

thank you coder.
regards
Hukam
