Help Customizing Murrey Math Indicator

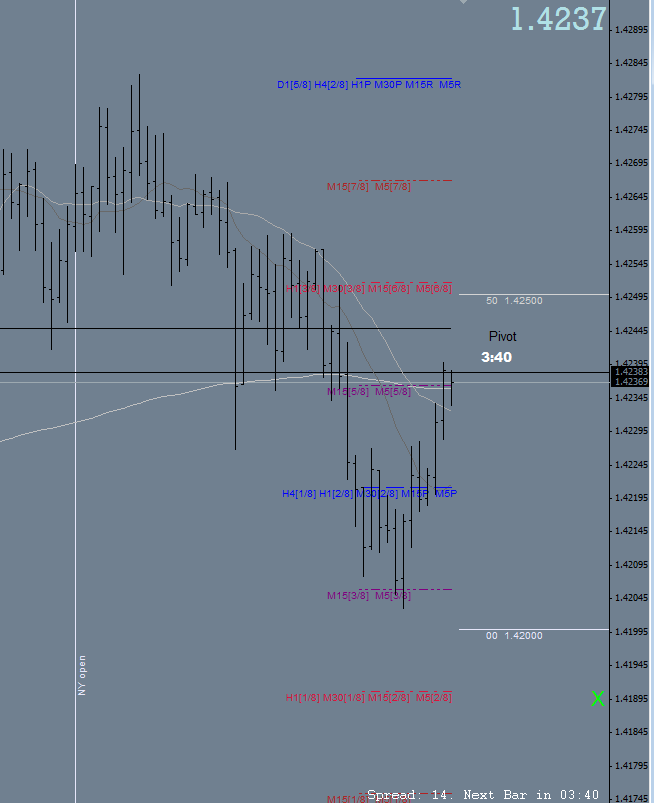

Could someone please help me customize the "Murrey_Math_AllTF" indicator. Here is a picture of what I wanted to do but my programming skills aren't that great.

Basically I want to make the Murrey Math Lines short like white lines (BN Levels v1.01) that I have on my chart.

I only have BN Levels v1.01.ex4 not the mq4 file.

Thank You that would be awesome.

google

Anyone?

Thanks

Is this what you are looking for?

HTH

Thanks futurespec. I appreciate your time and work.

It looks great.

I was wondering if it's possible to shift the lines and text all the way to the right. (So they could start were the X is at.) If it's too much work then don't worry about it.

Thanks for your help.

Maybe nearer. Ok

That is PERFECT.

Thanks again.

Hi im using this version, i like to know if its possible to add an option to chose where levels text appear?
Thanks, best regards.

http://s3.postimage.org/p88i3d4q7/111.png
image hosting

Masterpylha, If you open the indicator with MetaEditor and go into the code and change the bold 12 to whatever you what it will move the text levels


ObjectCreate("MM-2/8ths_txt",OBJ_TEXT,0,Time[12],mml00,Time[0],mml00);
ObjectSetText("MM-2/8ths_txt","-2/8ths Extreme Overshoot ",7,"Arial",Maroon);

ObjectCreate("MM-1/8th_txt",OBJ_TEXT,0,Time[12],mml0,Time[0],mml0);
ObjectSetText("MM-1/8th_txt","-1/8th Overshoot ",7,"Arial",Maroon);

ObjectCreate("MM 0/8th_txt",OBJ_TEXT,0,Time[12],mml1,Time[0],mml1);
ObjectSetText("MM 0/8th_txt","0/8th Ultimate Resistance ",7,"Arial",Maroon);

ObjectCreate("MM 1/8th_txt",OBJ_TEXT,0,Time[12],mml2,Time[0],mml2);
ObjectSetText("MM 1/8th_txt","1/8th Weak, Stall & Reverse ",7,"Arial",Maroon);

ObjectCreate("MM 2/8ths_txt",OBJ_TEXT,0,Time[12],mml3,Time[0],mml3);
ObjectSetText("MM 2/8ths_txt","2/8ths Pivot, Reverse - major ",7,"Arial",Maroon);

ObjectCreate("MM 3/8ths_txt",OBJ_TEXT,0,Time[12],mml4,Time[0],mml4);
ObjectSetText("MM 3/8ths_txt","3/8ths Bottom of Trading Range ",7,"Arial",Maroon);

ObjectCreate("MM 4/8ths_txt",OBJ_TEXT,0,Time[12],mml5,Time[0],mml5);
ObjectSetText("MM 4/8ths_txt","4/8ths Major Support/Resistance ",7,"Arial",Maroon);

ObjectCreate("MM 5/8ths_txt",OBJ_TEXT,0,Time[12],mml6,Time[0],mml6);
ObjectSetText("MM 5/8ths_txt","5/8ths Top of Trading Range ",7,"Arial",Maroon);

ObjectCreate("MM 6/8ths_txt",OBJ_TEXT,0,Time[12],mml7,Time[0],mml7);
ObjectSetText("MM 6/8ths_txt","6/8ths Pivot, Reverse - major ",7,"Arial",Maroon);

ObjectCreate("MM 7/8ths_txt",OBJ_TEXT,0,Time[12],mml8,Time[0],mml8);
ObjectSetText("MM 7/8ths_txt","7/8ths Weak, Stall & Reverse ",7,"Arial",Maroon);

ObjectCreate("MM 8/8ths_txt",OBJ_TEXT,0,Time[12],mml9,Time[0],mml9);
ObjectSetText("MM 8/8ths_txt","8/8ths Ultimate Resistance ",7,"Arial",Maroon);

ObjectCreate("MM+1/8th_txt",OBJ_TEXT,0,Time[12],mml99,Time[0],mml99);
ObjectSetText("MM+1/8th_txt","+1/8th Overshoot ",7,"Arial",Maroon);

ObjectCreate("MM+2/8ths_txt",OBJ_TEXT,0,Time[12],mml98,Time[0],mml98);
ObjectSetText("MM+2/8ths_txt","+2/8ths Extreme Overshoot ",7,"Arial",Maroon);


Here is one with 50 instead of 12.

Thats exactly what i need
Thanks for helping Google.

Futurespec or someone else could you please help me.

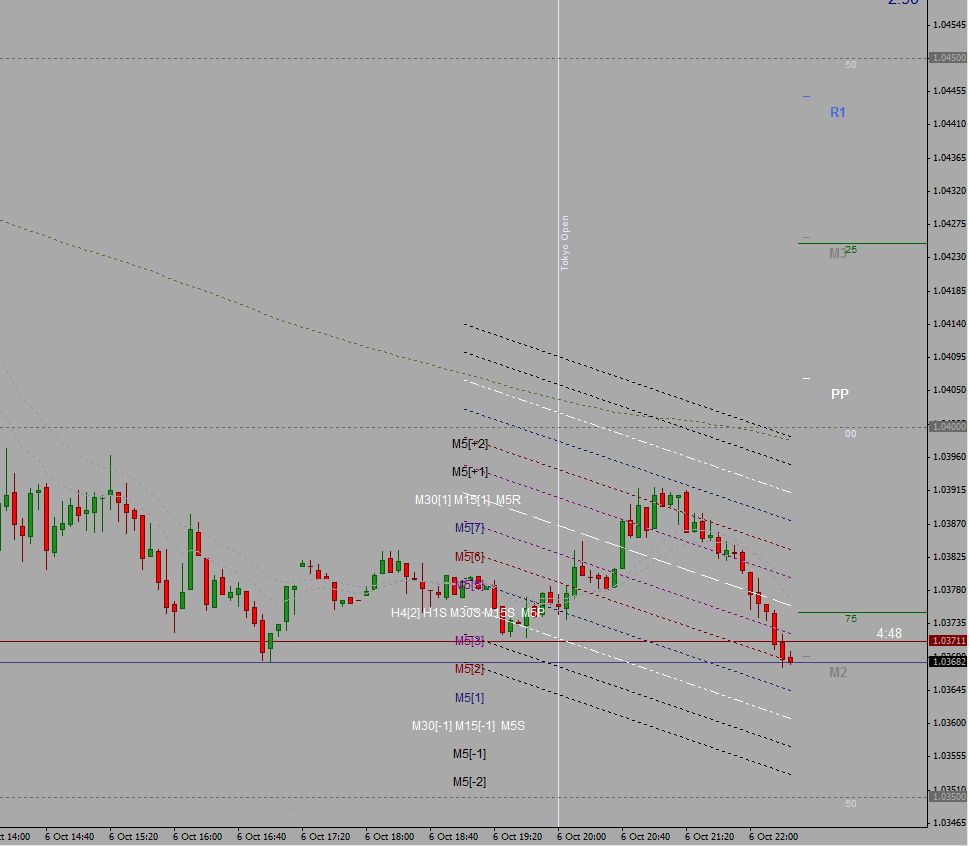

Whenever the indicator needs to recalculate the lines, this is what happens. The lines go all weird.

This is the picture of what happens and attached indicator.

Thanks again.

Hopefully this should sort it.
(not tested)

Thanks Futurespec, I checked on 1m and it looks normal when it shifts. However, for some reason the labels got moved. The white labels are supposed to be under while lines but they are one line above.

Sorry for all this complication.

Don't think I changed anything on those?
Try this

That one worked.

Thanks Futurespec for all your help.

Is it possible to make my version to not clear the lines after exit ?

Thanks

Try commenting out the delete object line..........


int deinit()
{
//---- TODO: add your code here
ObjectsDeleteAll(0, OBJ_HLINE);


Change to ..............


int deinit()
{
//---- TODO: add your code here
// ObjectsDeleteAll(0, OBJ_HLINE);

Thanks

Masterpulha here is a post with MurreyMath indicator that you can use to back test.

http://www.forexfactory.com/showthre...17#post4921117

Thanks Google

Is it possible to have all the lines in the chart.
I mean selecting a range from 0.0000 to 2.0000, and have all the lines with the distance (+/-) 30.5 pips. Its the most common distance in 1h TF using 64 settings.

Thank you
