WindowScreenShot()

  • #1
  • First Post: Mar 26, 2010 10:52am Mar 26, 2010 10:52am
I'm trying to use this feature, but I can't seem to get it to take pictures of indicators on the chart.

Is it even possible? Documentation doesn't mention anything about the chart's indicators.
  • #2
  • Mar 26, 2010 4:02pm Mar 26, 2010 4:02pm
RR, I wrote one in this thread. It captured the Fractal indicator as well as the EA smiley face, so I don't know why it wouldn't capture other indicators. The market is closed so I can't test it.

My understanding is that is an image bit capture so it wouldn't know what's on the screen.



http://www.forexfactory.com/showthread.php?t=225336
  • #3
  • Edited 4:36pm Mar 26, 2010 4:25pm | Edited 4:36pm
Would it make a difference if the indis were attached to the chart during a backtest?

[Edit]: It doesn't seem to capture the indicators. Looks like it will only use standard indicators, not custom ones.
  • #4
  • Mar 26, 2010 5:38pm Mar 26, 2010 5:38pm
Here you go, guys.
I did this long ago.
A++;
DoubleToStr(A,0);
WindowScreenShot("shots\"+A+".gif",640,480);
StrToDouble("A");
Comment(TimeToStr(TimeLocal()));
  • #5
  • Mar 26, 2010 6:01pm Mar 26, 2010 6:01pm
Hey Market Pips,

Doesn't seem to work for me. I'm trying to take screenshots of the chart as a trade is taken (custom indis, objects and standard indis included).

So far, I can see standard indis, and chart objects, but no custom indis.
  • #6
  • Mar 27, 2010 6:44pm Mar 27, 2010 6:44pm
Lets see.
  • #7
  • Edited 4:32am Mar 28, 2010 3:30am | Edited 4:32am
Hi Ronald Raygun. Here is my screenshot made by WindowScreenShot() function.

MQL4 code:
PHP Code
if(!WindowScreenShot(StringConcatenate(Symbol(),"_",Period(),"_",TimeToStr(TimeCurrent(),TIME_DATE),"_",Hour(),".",Minute(),".gif"),1280,1024)) Print(GetLastError());
Screenshots will be placed into $TerminalPath$-experts-files folder.
Attached Image (click to enlarge)

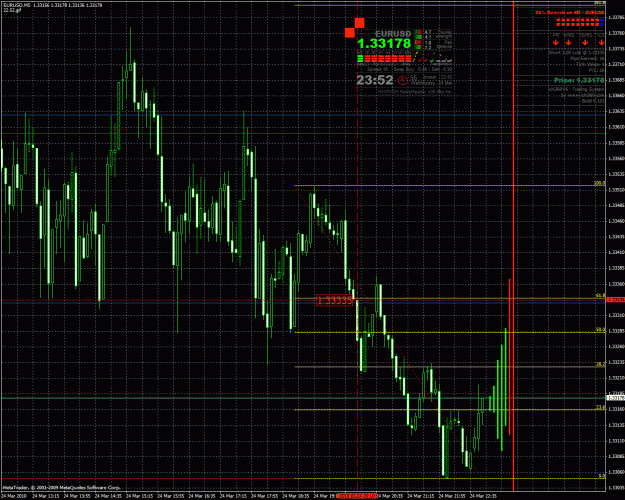

Click to Enlarge Name: EURUSD_5_2010.03.24_22.52.gif Size: 72 KB
  • #8
  • Mar 28, 2010 9:20am Mar 28, 2010 9:20am
This is the indicator I'm trying to get windowscreenshot to capture.

See if you can do it. I'm having trouble getting the function to work.
Attached File(s)
File Type: mq4 Trend Magic-1.mq4   2 KB | 518 downloads
  • #9
  • Edited 10:09am Mar 28, 2010 9:48am | Edited 10:09am
Quoting Ronald Raygun
This is the indicator I'm trying to get windowscreenshot to capture.

See if you can do it. I'm having trouble getting the function to work.
This will make screenshots on every tick.

Result:
Attached Image (click to enlarge)
Click to Enlarge Name: GBPUSD_60_2010.03.26_22.0.gif Size: 58 KB
Attached File(s)
File Type: mq4 Trend Magic-1_Graff.mq4   2 KB | 351 downloads
  • #10
  • Mar 28, 2010 10:27am Mar 28, 2010 10:27am
Sorry, I meant for backtesting.

I currently have the EA take a snapshot after a successful trade. Problem is I can't see the line.
  • #11
  • Mar 28, 2010 11:10am Mar 28, 2010 11:10am
Quoting Ronald Raygun
Sorry, I meant for backtesting.

I currently have the EA take a snapshot after a successful trade. Problem is I can't see the line.
I tryed to make screenshots in tester and it works fine. Setup your tester like mine on screen bellow.
Attached Image (click to enlarge)
Click to Enlarge Name: 1.jpg Size: 231 KB
Attached File(s)
File Type: mq4 Trend Magic-1_Graff_v2.mq4   2 KB | 361 downloads
  • #12
  • Edited 11:22am Mar 28, 2010 11:21am | Edited 11:22am
Hi Ron,
I've coded a simple EA to take screenshot, it works.
here the ea code:
PHP Code
int start()
  {
    if(ObjectFind("shot")>=0)
    {
      if(!WindowScreenShot("shot.gif",640,480))
        Print("Screenshot failed");
      else
        Print("Screenshot succeeded");
      ObjectDelete("shot");
    }
   return(0);
  }
Run this EA, put any indicator on chart. put arbitrary object, named it "shot" (without double quotes). screenshot will be taken and saved on testerfiles. Check this folders, there should be a file named "shot.gif".
Attached Image (click to enlarge)

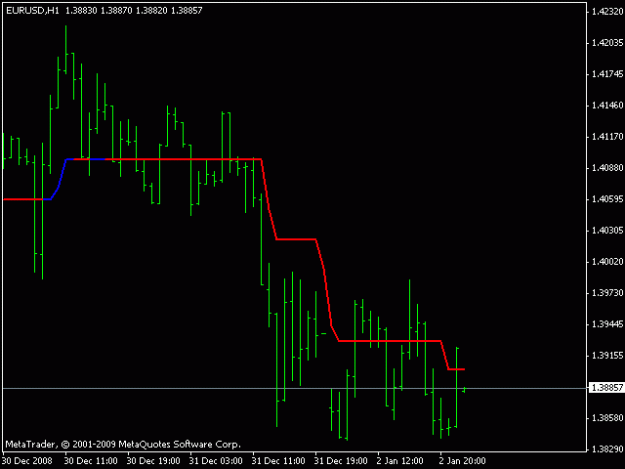

Click to Enlarge Name: shot.gif Size: 8 KB
  • #13
  • Mar 28, 2010 1:37pm Mar 28, 2010 1:37pm
I'm almost definitely missing something.

Here are two pictures of what windowscreenshot sees, and what I see.

Code included as well, why are the two pictures different?
Attached Image(s) (click to enlarge)

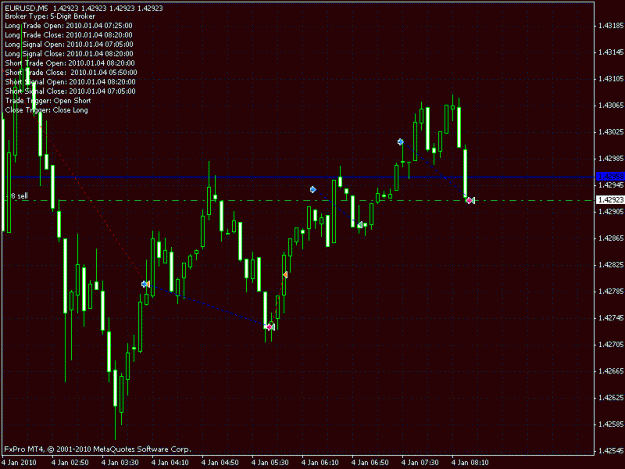

Click to Enlarge Name: Pippopotamus EURUSD Sell 8.gif Size: 22 KB
Click to Enlarge Name: supposed to se.gif Size: 21 KB
Attached File(s)
File Type: mq4 Pippopotamus.mq4   29 KB | 537 downloads
  • #14
  • Last Post: Mar 29, 2010 1:28pm Mar 29, 2010 1:28pm
Quoting Ronald Raygun
I'm almost definitely missing something.

Here are two pictures of what windowscreenshot sees, and what I see.

Code included as well, why are the two pictures different?
I have found something interesting in documentation:
Inserted Code
The execution of iCustom() does not require the attachment of a corresponding indicator to a security window. As well as the call of iCustom() from any application program does not result in the attachment of a corresponding indicator to a security window.
I tryed to solve this problem for a few hours but unfortunaly I haven't found solution. Its iCustom() issue.
