Technical Analysis Dashboard for MT4

What indicators you used in this chart?

Currency pair: Gold
Timeframe: H4

Analysis: The H4 Dashboard indicates a Very Strong SELL signal (100%) from Moving Averages, complemented by SELL signals from MACD, Stochastic, and RSI. ADX shows a Weak SELL, while CCI is Oversold, suggesting potential for a bounce or exhaustion of the selling pressure.

The "Overall" analysis, averaging M5, M30, and H1 timeframes across six indicators, also points to a SELL signal, albeit with a lower conviction of 20%. This suggests that while the higher timeframe (H4) is strongly bearish, shorter timeframes might be showing mixed or less aggressive selling.

Current market conditions are categorized as a Weak Trend, with Medium Volatility. This implies that while there's a bearish bias, the trend lacks significant momentum, and price movements are moderately active.

The Smart Money Concept (SMC) analysis shows an Undefined Structure and an unstated "State." However, the "Supply" has been Mitigated (Wick), indicating that a previous supply zone has been tested or partially cleared. The nearest "Demand" zone is identified between 3251.98 - 3154.45. Given the Very Strong SELL from the H4 dashboard and the mitigated supply, price is likely to continue its descent towards the identified Demand zone.

This movement towards demand could present a BUY setup if the demand zone holds, as it would indicate a potential reversal or strong support. The nearest Resistance is at 3395.15 - 3366.43 (546 pips), and Support is at 3273.76 - 3246.73 (380 pips). The current price action suggests a continuation towards the Support zone, which aligns with the identified Demand area in the SMC analysis, reinforcing the potential for a BUY opportunity upon reaching that level.

Disclaimer: This analysis is based solely on data from the provided dashboard and is intended for educational purposes only. Trading involves risk, and by following this analysis or its signals, you may incur financial losses. Please exercise caution and make your own informed trading decisions.

Note: v4.56 still under development.

Currency pair: EURCAD
Timeframe: H4

Analysis: The H4 dashboard indicates a Very Strong BUY (100%) signal from the Moving Averages. Other indicators like MACD, Stochastic, RSI, and CCI also show a BUY signal, while ADX suggests a Weak BUY.

The "Overall" analysis, considering M5, M30, and H1 timeframes, points to a Very Strong BUY (50%), reinforcing the bullish sentiment across shorter timeframes.
Current market conditions are characterized by a Weak Trend, with Medium Volatility. This suggests that while there's a bullish bias, the trend lacks significant momentum, and price movements are not excessively volatile.

From a Smart Money Concept (SMC) perspective, the Structure is Bullish (BOS - Break of Structure), but the State is "Waiting Pullback." This implies that while the underlying trend is upward, a retracement is anticipated before the next leg up. The nearest Supply zone is identified between 1.6150 - 1.6055, and the Demand zone is 1.5787 - 1.5669. The nearest Support zone is at 1.5394 - 1.5321 (641 pips), with no immediate Resistance indicated. Given the Bullish Structure and the "Waiting Pullback" state, the price is likely to retrace towards the Demand zone (1.5787 - 1.5669) or the Support zone (1.5394 - 1.5321) before potentially resuming its upward movement. This pullback could present a BUY setup if the price finds strong support within these zones. Traders should monitor for signs of bullish reversal in these areas for potential long entries.

Disclaimer: This analysis is based solely on data from the provided dashboard and is intended for educational purposes only. Trading involves risk, and by following this analysis or its signals, you may incur financial losses. Please exercise caution and make your own informed trading decisions.

Note: v4.60 still under development.

Dear sir
Thank you for your update information
let me confirmed for the fibo level ..Do you used a indicator Zigzag for referance or not with parameter 12-5 3 ???

No, the Fibonacci analysis does not use the ZigZag indicator. It uses a much simpler method.
It finds the absolute highest high and lowest low with lookback feature to define its main swing. It does not use the 12, 5, 3 ZigZag parameters.

New Version v4.63 Released Today! July 08, 2025
Several bugs have been fixed and new features added:

1. Volatility Filters have been added to both the dashboard and indicator modules
2. The Support & Resistance (S/R) Engine has been upgraded from v1.0 to v2.0, bringing notable quality improvements
3. Smart Money Concept (SMC) indicator introduced with v1.0, and immediately upgraded to v2.0 with further refinements
4. Fibonacci Indicator launched with v1.0 and upgraded to v2.0, now offering improved confluence with SMC and S/R
5. Elliott Wave v1.0 has been added and will receive upgrades in future versions

Many bugs have been addressed in this release. However, we are aware that some issues may still persist and will continue improving in upcoming updates.

Technical Analysis Dashboard v4.63 - User Manual & Feature Guide

Welcome to the Technical Analysis Dashboard! This guide will explain each feature on the panel so you can make informed trading decisions.

Section B: Standard Indicator Analysis
This section provides an at-a-glance summary of classic technical indicators calculated on the timeframe you select in the settings (default is the current chart timeframe).

1. MA (Moving Average):
   1. What it is: This is not a single MA. It's a powerful bias gauge that checks the current price against six different Simple Moving Averages (5, 10, 20, 50, 100, 200 by default).
   2. How to read it:
      1. Very Strong BUY/SELL: Price is above/below all six moving averages. This indicates a very strong, established trend.
      2. Strong BUY/SELL: Price is above/below five of the six MAs.
      3. BUY/SELL: Price is above/below four of the six MAs.
      4. Neutral: Price is in the middle of the MAs, suggesting a ranging or consolidating market.
      5. Percentage (e.g., 83%): This shows the strength of the bias. 100% means all 6 MAs are aligned.

2. MACD (Moving Average Convergence Divergence):
   1. What it is: A classic momentum indicator.
   2. How to read it:
      1. BUY: The MACD line is above its signal line, indicating bullish momentum.
      2. SELL: The MACD line is below its signal line, indicating bearish momentum.
      3. CROSS: The lines are crossing, a potential change in momentum is occurring right now.

3. Stochastic:
   1. What it is: A momentum indicator that compares a closing price to a range of its prices over a certain period.
   2. How to read it:
      1. BUY: The main line (%K) is above its signal line (%D), indicating bullish momentum.
      2. SELL: The main line is below its signal line, indicating bearish momentum.
      3. CROSS: The lines are crossing, a potential shift in momentum is happening.

4. ADX (Average Directional Index):
   1. What it is: Measures the strength of a trend, not its direction.
   2. How to read it:
      1. Strong BUY/SELL: The ADX value is high (default > 40), indicating a very strong trend. The direction is determined by which DI line (+DI or -DI) is on top.
      2. Medium BUY/SELL: The ADX value is moderate (default > 30), indicating a healthy trend.
      3. Weak BUY/SELL: The ADX value is low (default > 20), indicating a weak or developing trend.
      4. No Trend: The ADX value is very low (default < 20), indicating a ranging or directionless market.

5. RSI (Relative Strength Index):
   1. What it is: A momentum oscillator that measures the speed and change of price movements.
   2. How to read it:
      1. Overbought: The RSI is at a high level (default > 70). This suggests the market may be due for a pullback or reversal to the downside.
      2. Oversold: The RSI is at a low level (default < 30). This suggests the market may be due for a bounce or reversal to the upside.
      3. BUY/SELL: The RSI is in neutral territory but is above 50 (bullish momentum) or below 50 (bearish momentum).
      4. NEUTRAL: The RSI is at or very near the 50 level.

6. CCI (Commodity Channel Index):
   1. What it is: An oscillator used to identify cyclical trends.
   2. How to read it: Similar to RSI.
      1. Overbought: CCI is high (default > 100), suggesting potential for a bearish reversal.
      2. Oversold: CCI is low (default < -100), suggesting potential for a bullish reversal.
      3. BUY/SELL: CCI is positive (bullish momentum) or negative (bearish momentum).
      4. NEUTRAL: CCI is at or very near the 0 level.

Section C & Market Conditions

1. Market:
   1. What it is: This simplifies the ADX reading into a single, easy-to-understand market condition.
   2. How to read it:
      1. Strong/Medium Trend: The market is moving with clear direction and force. Trend-following strategies are favored.
      2. Weak Trend: A trend exists but is losing steam or may be reversing.
      3. Ranging: The market has no clear direction. Range-trading or reversal strategies are favored.

2. Volatility:
   1. What it is: This compares the short-term volatility (using a 14-period ATR) to the long-term baseline volatility (100-period ATR).
   2. How to read it:
      1. Very High/High: Price is moving much more than usual. This means higher risk but also potential for larger, faster profits. Be cautious of erratic moves.
      2. Medium: Normal market volatility.
      3. Low/Very Low: The market is quiet. This can be a sign of consolidation before a big move.

3. Overall:
   1. What it is: This is the dashboard's "master signal." It takes all the enabled indicators from Section B, analyzes them across up to three different timeframes, and assigns a weighted score.
   2. How to read it: It gives a final, conclusive bias (e.g., "Strong BUY (85%)"), representing the synthesized opinion of the entire indicator suite. This is your most powerful at-a-glance summary.

Section D: Support & Resistance (SupDem) Engine v2.0
This engine automatically identifies and qualifies key Supply (Resistance) and Demand (Support) zones.

1. Resistance / Support:
   1. What it is: Shows the price range of the nearest valid resistance or support zone.
   2. How to read it:
      1. 1.2550 - 1.2525 (Quality: 95%): A fresh, strong zone that has not been tested much and is still recent. These are high-probability zones.
      2. 1.2550 - 1.2525 (Quality: 45%): An older zone that has been tested multiple times. It is weaker and more likely to break. Approach with caution.
      3. 1.2550 - 1.2525 (Broken): This zone has failed. Price has decisively broken through it, and it is no longer valid as support or resistance.

2. SR Alert:
   1. What it is: A real-time status of what price is doing in relation to the zones.
   2. How to read it:
      1. Searching...: The engine is looking for a new, valid zone.
      2. Monitoring...: Valid zones are found, but price is in the middle ("no man's land").
      3. Monitoring Resist/Support...: Price has entered or is very close to a zone. This is a "call to action" to pay close attention to the chart.
      4. Breakout Trend: Price has decisively closed through a zone.
      5. Reversal Trend: Price has touched a zone, moved away, and confirmed a reversal.

Section I: Smart Money Concepts (SMC) Engine v2.0
This is an advanced engine that analyzes price action from the perspective of institutional "Smart Money."

1. Structure:
   1. What it is: Identifies the current market structure.
   2. How to read it:
      1. Bullish (BOS): Price is making higher highs and higher lows (Break of Structure). The trend is up.
      2. Bearish (BOS): Price is making lower lows and lower highs. The trend is down.
      3. Reversal (CHoCH): Price has just shown a "Change of Character" (e.g., after a downtrend, it just made a higher high). This is the first signal that a trend reversal may be starting.

2. Supply / Demand:
   1. What it is: Unlike the S/R engine, this only displays an Order Block (OB) if it is a high-probability setup. An OB is the specific candle that initiated a major market move.
   2. How to read it: If a price range appears here, it means the engine has found an OB that either caused a Break of Structure (BOS) or has a Fair Value Gap (FVG) next to it, making it a point of interest for institutional traders. If it shows "---", no high-probability OB is currently in play.

3. State:
   1. What it is: This is the most important SMC signal, telling you what to do now.
   2. How to read it (in order of priority):
      1. Liquidity Sweep Reversal!: HIGHEST PRIORITY SIGNAL. Price has just faked out traders by running above an old high or below an old low, and then immediately reversed with force (creating a CHoCH). This is a very powerful reversal signal.
      2. Sweep Confirmed, Wait CHoCH: Price has taken liquidity (the fakeout), but has not yet confirmed the reversal. This is a warning to be ready for a potential reversal.
      3. In Demand/Supply Zone (HP): Price has entered one of the high-probability OBs listed above. This is a prime area to look for trade entries.
      4. Waiting Pullback: The structure is clear (e.g., Bullish BOS), but price is far from a valid zone. The engine is waiting for price to return to a high-probability zone.

Section J: Predictive Analysis Engine
This engine uses classic theories to forecast potential future price movements.

1. Fibo Swing:
   1. What it is: Identifies the price swing being used for Fibonacci calculations.
   2. How to read it:
      1. (Major): Uses a long-term swing (default 250 bars) to give you the big picture context.
      2. (Recent): Uses the most recently completed ZigZag swing, which is better for short-term, intraday analysis.

2. Retracement:
   1. What it is: Identifies the most critical area for a price pullback.
   2. How to read it:
      1. Golden Pocket (SR+SMC Conf.): HIGHEST CONFLUENCE. The 50-61.8% Fibo zone aligns with both a major S/R zone and a high-probability SMC zone. This is an extremely strong area of interest.
      2. Golden Pocket (S/R or SMC Confluence): A very strong signal where the Fibo Golden Pocket aligns with one other key zone.
      3. Golden Pocket (1.1480-1.1510): A standard Golden Pocket. Significant on its own, but less confirmed than one with confluence.

3. Extension:
   1. What it is: Potential profit targets if price reverses from the retracement zone and continues its trend.

4. EW (Elliott Wave) Phase:
   1. What it is: Attempts to identify a complete 5-wave impulse pattern.
   2. How to read it:
      1. No Clear Impulse: A standard 5-wave pattern is not currently visible.
      2. A-B-C Correction Expected: The engine has identified a complete 5-wave impulse and is now forecasting the path of the subsequent 3-wave correction (A, B, and C), using other engine data as potential targets.

Note: This user manual included in the latest file download.

Currency Pair: Gold
Timeframe: H1

Analysis: The dashboard's Standard Indicator Analysis for the current H1 timeframe shows a strong bearish bias. The MA indicates a Strong SELL (83%), implying price is below five of the six moving averages. Both RSI and CCI are also signaling SELL. While MACD indicates SELL, Stochastic shows BUY, suggesting a potential short-term counter-trend move. ADX points to a Weak SELL, indicating that while the trend is bearish, its strength is not robust.

The Overall dashboard signal, which synthesizes analysis across M5, M30, and H1 timeframes, is a SELL (27%). This suggests a general bearish sentiment across multiple timeframes, although the lower percentage indicates less conviction than a "Strong SELL."

Regarding Market Conditions, the dashboard identifies a Weak Trend, aligning with the ADX reading. This implies the current bearish move lacks significant momentum and could be prone to consolidation or reversal. Volatility is assessed as Medium, indicating normal price movement without extreme fluctuations.

The Smart Money Concepts (SMC) Engine indicates a Bearish (BOS) Structure, confirming the prevailing downtrend. The State is Waiting Pullback, signifying that after the bearish move, the engine anticipates a return to a high-probability zone for potential further selling opportunities. A Supply zone is identified between 3339.29 - 3332.59, suggesting this area could act as resistance if price pulls back. Conversely, no high-probability Demand zone is currently in play.

The nearest Resistance is found between 3345.65 - 3337.87 with 100% quality, and Support is at 3277.81 - 3274.45 also with 100% quality. Given the Bearish (BOS) structure and the Waiting Pullback state, the price is likely to retrace upwards towards the identified Supply zone at 3339.29 - 3332.59. This retracement, if it occurs, would align with the Stochastic BUY signal. Upon reaching this Supply zone, especially considering its proximity to the Resistance zone, we could expect sellers to step in, leading to a potential SELL setup and continuation of the bearish trend towards the Support at 3277.81 - 3274.45.

The Fibo Swing suggests a Retracement to the Golden Pocket (SMC Confluence) at 3265.55, 3238.29, further reinforcing potential downside targets if the bearish trend continues. The EW Phase shows No Clear Impulse, indicating the absence of a distinct 5-wave pattern at this time.

Disclaimer: This analysis is based solely on data from the provided dashboard and is intended for educational purposes only. Trading involves risk, and by following this analysis or its signals, you may incur financial losses. Please exercise caution and make your own informed trading decisions.

For EURUSD, the dashboard indicates a "Liquidity Sweep Reversal!" via the Smart Money Concepts engine, signifying a high-priority reversal signal. This means price initially faked out traders by sweeping old highs/lows, then reversed forcefully.

Looking ahead, the Predictive Analysis Engine shows a "Golden Pocket (SR+SMC Conf.)" for retracement, aligning the 50-61.8% Fibonacci zone with both strong Support/Resistance and high-probability SMC zones, suggesting a powerful reversal area. The Elliott Wave Phase is "A-B-C Correction Expected," forecasting a 3-wave correction after a completed 5-wave impulse. This implies current price action is likely a corrective move, potentially targeting the confirmed Golden Pocket before a new impulsive trend.

Disclaimer: This analysis is based solely on data from the provided dashboard and is intended for educational purposes only. Trading involves risk, and by following this analysis or its signals, you may incur financial losses. Please exercise caution and make your own informed trading decisions.

Dear arifchw Thanks for a great tool.
I'm only test XAUUSD with 2.Gold CONSERVATIVE Trend-Following set file
v4.35 and v4.38 good but v4.63 No signals available all day.
Is this just a problem for me? plz check and fix.
regards　

New Version v4.89 Released Today! July 11, 2025
We’re excited to announce the release of v4.89, which brings powerful new pattern recognition features and several important bug fixes:

1. Harmonic Patterns section introduced, featuring 7 major patterns for advanced technical analysis
2. Classic Chart Patterns added, including 6 of the most widely recognized and time-tested formations
3. Candlestick Pattern Detection now available, covering key patterns such as Doji, Engulfing Bar, Pin Bar, and more
4. Various bugs from previous versions have been resolved to enhance overall performance and stability

While this version includes multiple enhancements and fixes, we acknowledge that some issues may still remain. Please continue to report any bugs you encounter — your feedback helps us improve!

Analysis based on M30 chart

Based on the dashboard's analysis, Gold is currently in a strong, high-volatility uptrend on the 30-minute timeframe. A powerful confluence of core indicators, including the MA, MACD, and ADX, are signaling strong buying pressure, indicating that significant upward momentum is driving the market at this moment.

The dashboard has identified a classic Bull Flag pattern that is currently forming, suggesting the market is taking a brief pause before a potential continuation of its primary trend. A breakout is currently pending, with the price contained within the 3374.74 and 3361.72 levels.

Looking ahead, a confirmed breakout above the flag's upper boundary would signal the uptrend is resuming, with the first major test being the high-quality resistance zone at 3382.00. Conversely, if a deeper pullback occurs, the Fibonacci Golden Pocket near 3350 presents a key support area where buyers may step back in.

Disclaimer: This analysis is based solely on data from the provided dashboard and is intended for educational purposes only. Trading involves risk, and by following this analysis or its signals, you may incur financial losses. Please exercise caution and make your own informed trading decisions.

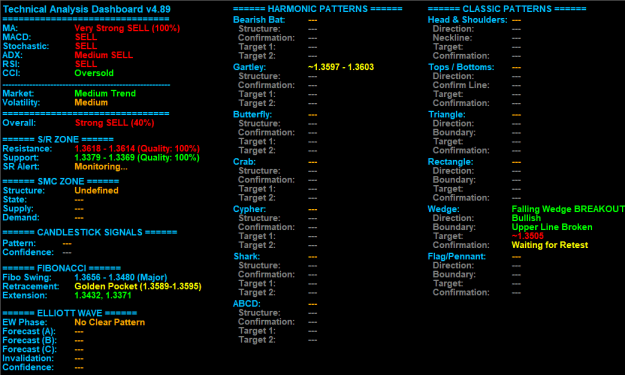

Currency Pair: GBPUSD
Timeframe: H1

Analysis: Based on the H1 timeframe for GBPUSD, the dashboard indicates a market dominated by bearish pressure. The overall signal is a Strong SELL, supported by a consensus across the moving average, MACD, and ADX indicators, which all point to an established medium-strength downtrend. Price is currently situated between a fresh, high-quality resistance zone at 1.3618 and support far below at 1.3379.

However, a significant classic pattern has emerged, signaling a potential shift. A bullish Falling Wedge BREAKOUT has been confirmed, and the engine is now in a crucial "Waiting for Retest" phase. This suggests the current downtrend could be challenged. The immediate future hinges on whether the price successfully retests its breakout point and moves higher, or if sellers retake control, pushing the price back down towards the Fibonacci extension targets of 1.3432 and 1.3371.

Disclaimer: This analysis is based solely on data from the provided dashboard and is intended for educational purposes only. Trading involves risk, and by following this analysis or its signals, you may incur financial losses. Please exercise caution and make your own informed trading decisions.

https://www.forexfactory.com/thread/...y-gts-m30-gold?
https://www.forexfactory.com/thread/...ly-gts-m5-gold?
https://www.forexfactory.com/thread/...gts-smart-grid?

This "expert" has blown three accounts within months.
Only fools will want to follow his signals or be mentored by him.

Those were experimental phases, and I’ve been fully transparent about their failures. It's important to understand the difference between an experiment and a finished product.

Dear sir
"I understand you might not agree with his work, but using such harsh words seems a bit excessive. I know he’s faced some challenges, but from my experience with the system, he’s done well in many areas. There might be other factors we’re not aware of. Using terms like 'fool' or attacking like this isn’t constructive.

I have tested Technical Analysis Dashboard v4.89, compared to the old version, this version doesnt have alert on entry or signal alert. I wished that feature is added. Otherwise this is great dashboard system. I have tested this and this is good

Is being nice to random strangers more important than being profitable? You decide.
But I know warning others about charlatans/scammers is more important than being nice to a charlatan/scammer.

Dear sir
"I’m interested to know what indicates that he might be a scammer. Could you please share more details?

Have you tried clicking on his "free mentorship" link?

I will consider it as my charitable act of the day to explain this to you like you're a toddler.

1. His "free mentorship" comes only if you join his affliate broker.
2. That broker is already shady af, so good luck processing any withdrawals.
3. Any trade you initiated, he gets a portion of commission. So good luck with him asking you to execute trades like a frenzied monkey. He doesn't give a shit whether you make a profit or loss because the moment you open a trade, he earns.

If you're not intelligent enough to see through this guy's scam, good luck to you in life.
