ATR Exponential Moving Average

Hi,

Does anyone have or can create an alert for when the ATR crosses its own exponential moving average. Like an arrow on the cross or something similar. The problem is that when I place the ATR with the EMA on the chart the lines are very close together and I cannot see them properly unless I take half the screen with the indicator.

Thanks
Kind Regards

hey there
kindly check this one , i hope this is what you want,
if you have any notes just let me know
cheers

Thanks a lot for your help

That is what I was looking for!!!!!!!

Thanks for this. Can we get an indicator that alerts everytime the ATR and MA crosses? Thanks.

Hi,

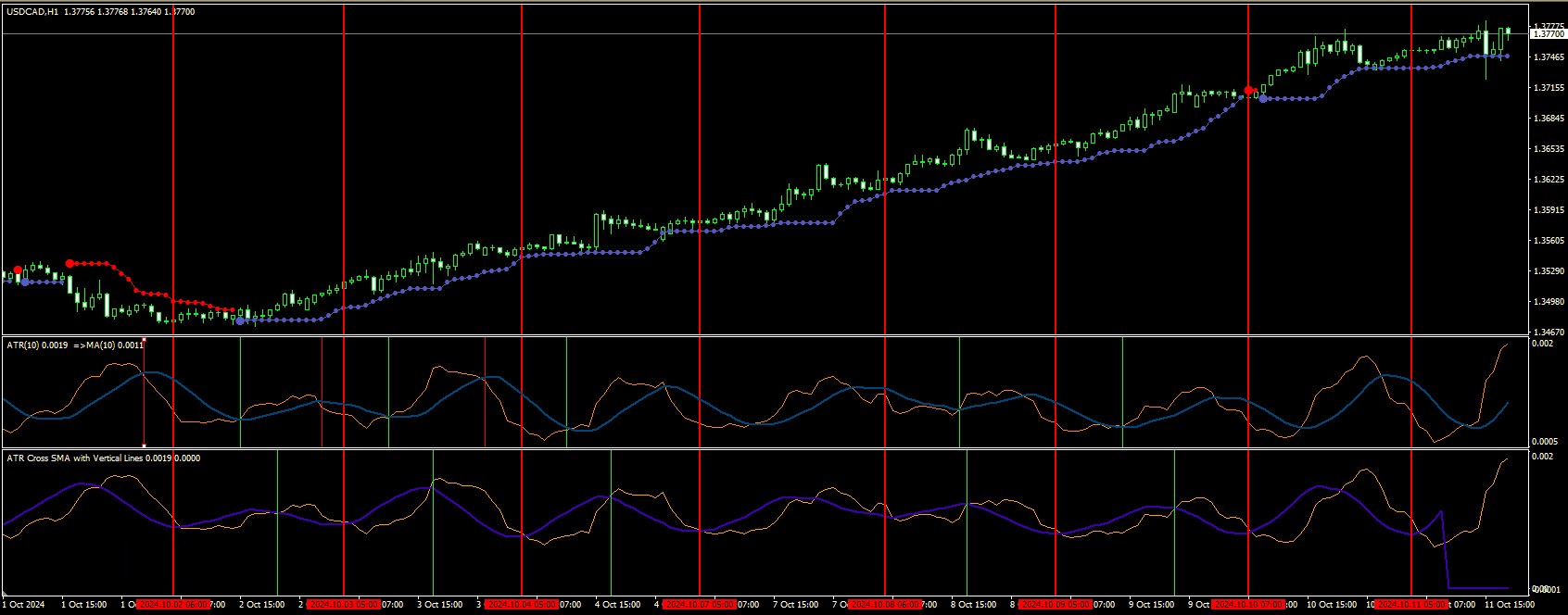

i created a code as well to draw a line when the ATR crosses below the Moving average. But for some reason the simple moving average is plotted incorrectly?
ALl my signals are therefore to late.

//+------------------------------------------------------------------+
//| ATRCrossesSMA.mq4 |
//| Copyright 2024, Domeonline |
//| |
//+------------------------------------------------------------------+
#property copyright "Copyright 2024, Domeonline"
#property link ""
#property version "1.00"
#property strict
#property indicator_separate_window // Draw in a separate window for ATR and SMA
#property indicator_buffers 2 // We need 2 buffers (ATR and SMA)
#property indicator_color1 Green // Color for ATR line
#property indicator_color2 Orange // Color for SMA of ATR line
//--- input parameters
input int ATR_Period = 10; // ATR period
input int SMA_Period = 10; // SMA period of ATR
input double LineWidth = 2; // Width of vertical lines
//--- indicator buffers
double atrBuffer[];
double atrSmaBuffer[]; // Buffer for SMA
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int OnInit()
{
//--- indicator buffers mapping
SetIndexBuffer(0, atrBuffer); // Buffer for ATR line
SetIndexBuffer(1, atrSmaBuffer); // Buffer for SMA line
// Set short name of the indicator
IndicatorShortName("ATR Cross SMA with Vertical Lines");
return(INIT_SUCCEEDED);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
const int prev_calculated,
const datetime &time[],
const double &open[],
const double &high[],
const double &low[],
const double &close[],
const long &tick_volume[],
const long &volume[],
const int &spread[])
{
// Ensure we have enough bars for calculation
if (rates_total < ATR_Period + SMA_Period) return (0);
// Clear previous vertical line objects
ObjectsDeleteAll(0, OBJ_VLINE);
// Calculate ATR values and store them in atrBuffer
for (int i = 0; i < rates_total; i++)
{
atrBuffer[i] = iATR(NULL, 0, ATR_Period, i); // Calculate ATR for each bar
}
// Calculate SMA of ATR
for (int i = 0; i < rates_total; i++)
{
// Only calculate SMA if there are enough data points
if (i >= SMA_Period - 1)
{
double sum = 0.0;
for (int j = 0; j < SMA_Period; j++)
{
sum += atrBuffer[i - j]; // Sum the last SMA_Period ATR values
}
atrSmaBuffer[i] = sum / SMA_Period; // Calculate the SMA
}
else
{
atrSmaBuffer[i] = 0; // Not enough data for SMA, set to 0
}
}
// Check for ATR cross above SMA and draw vertical lines
for (int i = 1; i < rates_total; i++)
{
// Cross upwards
if (atrBuffer[i] > atrSmaBuffer[i] && atrBuffer[i - 1] <= atrSmaBuffer[i - 1])
{
// Create a vertical line at the cross point
string lineName = "UpCrossLine_" + IntegerToString(i);
ObjectCreate(0, lineName, OBJ_VLINE, 0, time[i], 0);
ObjectSetInteger(0, lineName, OBJPROP_COLOR, clrRed);
ObjectSetInteger(0, lineName, OBJPROP_WIDTH, (int)LineWidth); // Ensure LineWidth is cast to int
}
}
return (rates_total);
}

//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
{
// Remove all vertical lines created by this indicator
for (int i = ObjectsTotal() - 1; i >= 0; i--)
{
string objName = ObjectName(i);
if (StringFind(objName, "UpCrossLine_") == 0) // Check if it starts with "UpCrossLine_"
{
ObjectDelete(objName); // Delete the object
}
}
}
//+------------------------------------------------------------------+

I was just looking for this. THANKS!
