way to get multiple buffer values with single iCustom call?

  • #1
  • First Post: May 9, 2020 4:02pm May 9, 2020 4:02pm
I have a indicator with 8 buffers... Is there a way to call the indicator with iCustom--- and have the call pull all 8 buffer values in 1 pull....

it would be cool if there was something like iCustom(NULL,0,"name",input,input,BFR1/SHIFT,BFR2/SHIFT,BFR3/SHIFT);

Or-- is there a way to run the indicator from the EA-- then from the EA-- go into the indicator buffer array and pull the needed values? This way only running the indicator once yet able to get all 8 values...
  • #2
  • May 9, 2020 4:20pm May 9, 2020 4:20pm
Quoting mtbb
I have a indicator with 8 buffers... Is there a way to call the indicator with iCustom--- and have the call pull all 8 buffer values in 1 pull.... it would be cool if there was something like iCustom(NULL,0,"name",input,input,BFR1/SHIFT,BFR2/SHIFT,BFR3/SHIFT); Or-- is there a way to run the indicator from the EA-- then from the EA-- go into the indicator buffer array and pull the needed values? This way only running the indicator once yet able to get all 8 values...
No, there is no way... You have to call iCustom() 8 times to read all 8 buffers.
Trading is the hardest way to make easy money...
  • #3
  • May 9, 2020 6:12pm May 9, 2020 6:12pm
Thanks MT7 ....

seems like it would be a cool function for the mt4 boys to put in...
  • #4
  • Edited 4:59am May 10, 2020 12:42am | Edited 4:59am
Quoting mtbb
Thanks MT7 .... seems like it would be a cool function for the mt4 boys to put in...
MathTrader7 is right but there is no reason to suggest changes in the language. Functions allow you to encapsulate functionality and you can return as many iCustom() values as you wish from a single function call.
Attached Image (click to enlarge)
Click to Enlarge Name: multiple-iCustom-buffers.png Size: 51 KB


Side effect: If you use iCustom() as shown your custom indicator will not be calculated 8 times. It's still loaded and calculated only once and the above multiple values version is as fast as returning a single value. There's a very small difference, so small that it's almost not measurable.
It takes blood, sweat and enough tears to wash away the blood.
  • #5
  • Jun 7, 2020 6:51pm Jun 7, 2020 6:51pm
Emmzett... So if i understand this right-----your solution would be to get multiple values from each buffer at one time... correct?
So for buffer 0--i could get val1,val2,val3 all with one call...

What im trying to do is just get the current value from each buffer-- but with only one call to the indicator..

so-- iCustom(symbol,name,buffer1/val1,buffer2/val1,buffer3/val1).... Im thinking your solution wouldnt work for this scenario -- correct?
  • #6
  • Jun 7, 2020 7:54pm Jun 7, 2020 7:54pm
Quoting mtbb
Emmzett... So if i understand this right-----your solution would be to get multiple values from each buffer at one time... correct? So for buffer 0--i could get val1,val2,val3 all with one call... What im trying to do is just get the current value from each buffer-- but with only one call to the indicator.. so-- iCustom(symbol,name,buffer1/val1,buffer2/val1,buffer3/val1).... Im thinking your solution wouldnt work for this scenario -- correct?
It's exactly for that. You get all buffer values for a single bar offset. In the case of my example that's 8 buffers but you are free to code whatever you need.
It takes blood, sweat and enough tears to wash away the blood.
  • #7
  • Jun 8, 2020 12:33am Jun 8, 2020 12:33am
Quoting mtbb
Thanks MT7 .... seems like it would be a cool function for the mt4 boys to put in...
https://www.mql5.com/en/forum/341568
  • #8
  • Jun 8, 2020 9:18pm Jun 8, 2020 9:18pm
Quoting emmzett
{quote} It's exactly for that. You get all buffer values for a single bar offset. In the case of my example that's 8 buffers but you are free to code whatever you need.

But arnt you calling the iCustom call 8 times (for 8 buffers)?... That is what im trying to avoid.... Id like to call the indicator 1x and retrieve all 8 buffer values with the one call....
  • #9
  • Jun 9, 2020 3:22am Jun 9, 2020 3:22am
Quoting mtbb
...But aren't you calling the iCustom call 8 times (for 8 buffers)?... That is what im trying to avoid.... Id like to call the indicator 1x and retrieve all 8 buffer values with the one call....
Quoting emmzett
...there is no reason to suggest changes in the language. Functions allow you to encapsulate functionality and you can return as many iCustom() values as you wish from a single function call...If you use iCustom() as shown your custom indicator will not be recalculated 8 times...
Read my first post in this thread again. I recommend to get familiar with the term encapsulation and study programming concepts, i.e. functional and also OO concepts. What you really want to avoid is recalculating your indicator for each fetched buffer/bar.
It takes blood, sweat and enough tears to wash away the blood.
  • #10
  • Jun 9, 2020 6:30pm Jun 9, 2020 6:30pm
Quoting emmzett
{quote} {quote} What you really want to avoid is recalculating your indicator for each fetched buffer/bar.

That is what i am trying to do-- avoid recalculating the entire indicator for each buffer value im trying to get.. My indicator has 8 buffers... Id like to be able to get all 8 buffer values from ONE call of the indicator... Your function above calls the indicator 8x... That is what im trying to avoid... Id like to call the indicator once--- and retrieve buffer 1-8 altogether... I know how to write a function that calls the indicator 8x with one function call... Thats not why im trying to achieve here..
  • #11
  • Edited 1:49am Jun 10, 2020 1:01am | Edited 1:49am
Quoting mtbb
{quote} That is what i am trying to do-- avoid recalculating the entire indicator for each buffer value im trying to get.. My indicator has 8 buffers... Id like to be able to get all 8 buffer values from ONE call of the indicator... Your function above calls the indicator 8x... That is what im trying to avoid... Id like to call the indicator once--- and retrieve buffer 1-8 altogether... I know how to write a function that calls the indicator 8x with one function call... Thats not why im trying to achieve here..
Use the code as I have written and if you believe your indicator is re-calculated 8 times put a debug statement - or Print() - into OnCalculate() of the called indicator. You will find it's called only once for each incoming tick.

Calling iCustom() doesn't mean recalculation of the indicator. It just fetches a buffer value.

Inserted Code
ticks | calling indicator | called indicator
------+-------------------+-----------------
tick1 |     iCustom()     |  OnCalculate()
      |     iCustom()     |       -
      |     iCustom()     |       -
      |     iCustom()     |       -
      |        ...        |       -
tick2 |     iCustom()     |  OnCalculate()
      |     iCustom()     |       -
      |     iCustom()     |       -
      |     iCustom()     |       -
      |        ...        |       -
It takes blood, sweat and enough tears to wash away the blood.
  • #12
  • Jun 17, 2020 2:19pm Jun 17, 2020 2:19pm
emmzett--- That is what i was trying to find out.. Thank You.... I was under the impression that each iCustom call would initiate a full running of the called indicator, vs just being able to call the buffers and get the data from them.. Nice to know its not...
  • #13
  • Nov 6, 2021 12:11pm Nov 6, 2021 12:11pm
Quoting emmzett
{quote} Use the code as I have written and if you believe your indicator is re-calculated 8 times put a debug statement - or Print() - into OnCalculate() of the called indicator. You will find it's called only once for each incoming tick. Calling iCustom() doesn't mean recalculation of the indicator. It just fetches a buffer value. ticks | calling indicator | called indicator ------+-------------------+----------------- tick1 | iCustom() | OnCalculate() | iCustom() | - | iCustom() | - | iCustom() | - | ... | - tick2 | iCustom() | OnCalculate() |...
emmzett, pls help me.

I got stuck in this part

https://www.forexfactory.com/thread/...6#post13775516
Do you have the solution for the issue with iCustom() on indicator trade_confirmation.ex4, how can it get its buffers correctly

I have tried with
all the parameters filled and non parameters filled so it should pick deault, add to the end with for buffers reading
(...,0,3,0)
(...,1,3,0)
(...,2,3,0)
(...,3,3,0)
with
(...,1,0,0,0,0)
(...,0,1,0,0,0)
(...,0,0,1,0,0)
(...,0,0,0,1,0)
and with
(...,1,0,0,0,1)
(...,0,1,0,0,1)
(...,0,0,1,0,1)
(...,0,0,0,1,1)
what else you can try?
Attached File(s)
File Type: mq4 Text PRINOUT.mq4   10 KB | 365 downloads
  • #14
  • Nov 6, 2021 1:32pm Nov 6, 2021 1:32pm
Quoting ntk
...what else you can try?...
A few ideas:

1st example: You always read the same buffer (3) and the same bar offset (0). No surprise that it doesn't work.
2nd example: Almost the same mistake as in (1). You read the same buffer 3 times.
3rd example: Again you read the same buffer 3 times. This time you read bar offset 1.

Probably (a guess, I do not know!) it makes no sense to read bar offset 0 (the current bar). You should only read finished bars (at least offset 1).

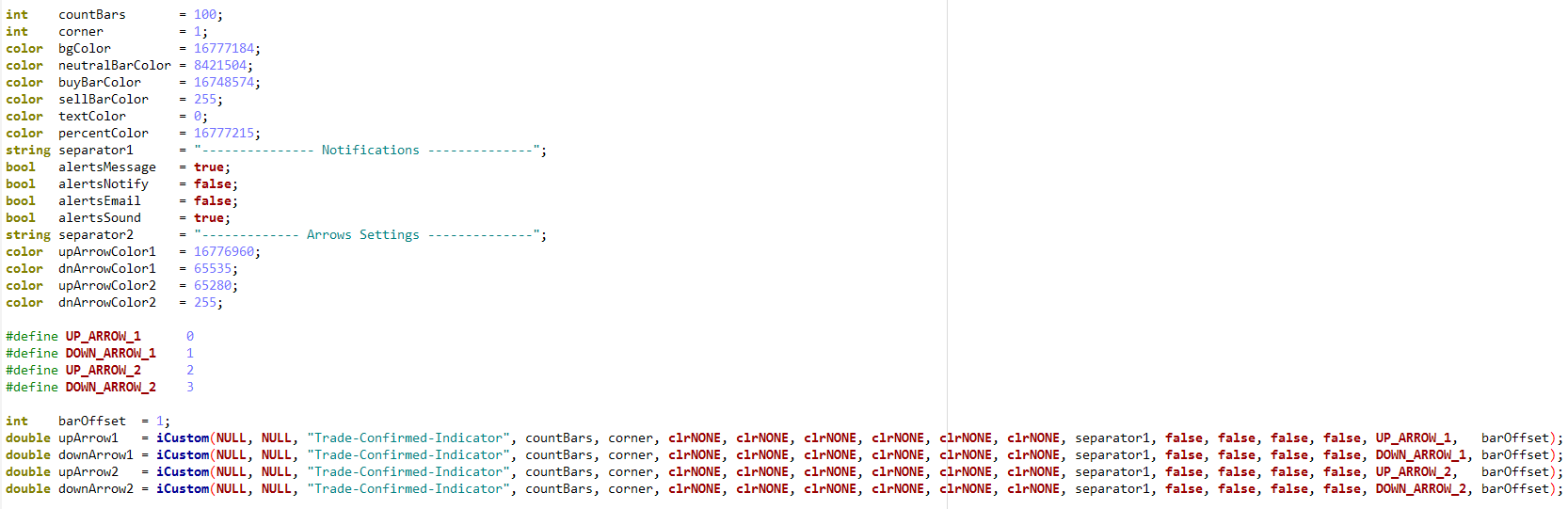

Attached the correct call of that trade-confirmation indicator. Adjust it to your needs. Again, don't read bar offset 0, it makes no sense.
Attached Image (click to enlarge)
Click to Enlarge Name: iCustom.png Size: 63 KB
Attached File(s)
File Type: mq4 iCustom.mq4   2 KB | 518 downloads
It takes blood, sweat and enough tears to wash away the blood.
  • #15
  • Nov 6, 2021 9:57pm Nov 6, 2021 9:57pm
Quoting emmzett
{quote} A few ideas: 1st example: You always read the same buffer (3) and the same bar offset (0). No surprise that it doesn't work. 2nd example: Almost the same mistake as in (1). You read the same buffer 3 times. 3rd example: Again you read the same buffer 3 times. This time you read bar offset 1. Probably (a guess, I do not know!) it makes no sense to read bar offset 0 (the current bar). You should only read finished bars (at least offset 1). Attached the correct call of that trade-confirmation indicator. Adjust it to your needs. Again, don't...
after many more fruitless trials I made a despereate attempt for something illogical, but I get this good result, It does not make sense in the way array were design starting at 0 etc

when run in tester strategy
[code]
2021.11.07 02:17:43.612 2020.07.15 09:15:00 Text PRINOUT EURUSD,M15: trend_down = 1.13974
2021.11.07 02:17:43.612 2020.07.15 09:15:00 Text PRINOUT EURUSD,M15: trend_up = 1.13974
2021.11.07 02:17:43.612 2020.07.15 09:15:00 Text PRINOUT EURUSD,M15: itfm = 10.00382239
2021.11.07 02:17:43.612 2020.07.15 09:15:00 Text PRINOUT EURUSD,M15: downArrow2 = -1
2021.11.07 02:17:43.612 2020.07.15 09:15:00 Text PRINOUT EURUSD,M15: upArrow2 = -1
2021.11.07 02:17:43.612 2020.07.15 09:15:00 Text PRINOUT EURUSD,M15: downArrow1 = -1
2021.11.07 02:17:43.612 2020.07.15 09:15:00 Text PRINOUT EURUSD,M15: upArrow1 = -1
2021.11.07 02:17:43.503 2020.07.15 09:15:00 Custom indicator itmf_sigalert EURUSD,M15: loaded successfully
2021.11.07 02:17:41.582 Text PRINOUT inputs: txtDegree=45; SizeText=9; SpreadPeriod=20; VolumePeriod=20;
2021.11.07 02:17:41.582 Custom indicator Text PRINOUT EURUSD,M15: loaded successfully

Inserted Code
2021.11.07 02:17:43.612    2020.07.15 09:15:00  Text PRINOUT EURUSD,M15: trend_down =  1.13974
2021.11.07 02:17:43.612    2020.07.15 09:15:00  Text PRINOUT EURUSD,M15: trend_up =  1.13974
2021.11.07 02:17:43.612    2020.07.15 09:15:00  Text PRINOUT EURUSD,M15: itfm =  10.00382239
2021.11.07 02:17:43.612    2020.07.15 09:15:00  Text PRINOUT EURUSD,M15: downArrow2 =  -1
2021.11.07 02:17:43.612    2020.07.15 09:15:00  Text PRINOUT EURUSD,M15: upArrow2 =  -1
2021.11.07 02:17:43.612    2020.07.15 09:15:00  Text PRINOUT EURUSD,M15: downArrow1 =  -1
2021.11.07 02:17:43.612    2020.07.15 09:15:00  Text PRINOUT EURUSD,M15: upArrow1 =  -1
2021.11.07 02:17:43.503    2020.07.15 09:15:00  Custom indicator itmf_sigalert EURUSD,M15: loaded successfully
2021.11.07 02:17:41.582    Text PRINOUT inputs: txtDegree=45; SizeText=9; SpreadPeriod=20; VolumePeriod=20;
2021.11.07 02:17:41.582    Custom indicator Text PRINOUT EURUSD,M15: loaded successfully
but why the all arrow values are the same????
Attached File(s)
File Type: mq4 Text PRINOUT V 0.1.mq4   11 KB | 372 downloads
  • #16
  • Nov 7, 2021 1:31am Nov 7, 2021 1:31am
with V 0.3 in tester. I think the trial run is abnormal, it takes very long until the indicator loaded in the chart, then the simulation did not run, like a normal tester run, even after 5 min waiting

Inserted Code
2021.11.07 07:20:38.206    2021.07.01 00:00:00  Text PRINOUT   V 0.3 EURUSD,M15: itfm =  116.74568425
2021.11.07 07:20:38.206    2021.07.01 00:00:00  Text PRINOUT   V 0.3 EURUSD,M15: downArrow2 =  1
2021.11.07 07:20:38.206    2021.07.01 00:00:00  Text PRINOUT   V 0.3 EURUSD,M15: upArrow2 =  1
2021.11.07 07:20:38.206    2021.07.01 00:00:00  Text PRINOUT   V 0.3 EURUSD,M15: downArrow1 =  1
2021.11.07 07:20:38.206    2021.07.01 00:00:00  Text PRINOUT   V 0.3 EURUSD,M15: upArrow1 =  1
2021.11.07 07:20:38.128    2021.07.01 00:00:00  Custom indicator itmf_sigalert EURUSD,M15: loaded successfully
2021.11.07 07:20:36.585    Text PRINOUT   V 0.3 test started
2021.11.07 07:20:36.585    Custom indicator Text PRINOUT   V 0.3 EURUSD,M15: loaded successfully
2021.11.07 07:20:36.585    TestGenerator: current spread 1 used
2021.11.07 07:20:34.517    2020.07.15 09:15:00  Expert Text PRINOUT   V 0.3 EURUSD,M15: loaded successfully
2021.11.07 07:20:34.510    2020.07.15 09:15:00  Expert Text PRINOUT   V 0.3 EURUSD,M15: removed
Attached File(s)
File Type: mq4 Text PRINOUT V 0.3.mq4   12 KB | 363 downloads
  • #17
  • Nov 7, 2021 1:32am Nov 7, 2021 1:32am
Again your iCustom() usage is wrong. Your code:
Inserted Code
double upArrow1   = iCustom(NULL, PERIOD_CURRENT, "Trade-Confirmed-Indicator",1,4,1);
double downArrow1 = iCustom(NULL, PERIOD_CURRENT, "Trade-Confirmed-Indicator",2,4,1);
double upArrow2   = iCustom(NULL, PERIOD_CURRENT, "Trade-Confirmed-Indicator",3,4,1);
double downArrow2 = iCustom(NULL, PERIOD_CURRENT, "Trade-Confirmed-Indicator",4,4,1);

Quoting ntk
...but why the all arrow values are the same...
Because in all 4 calls you request the same buffer (next to last parameter = 4) and the same bar offset (last parameter = 1). So the result will always be the same.
Requesting buffer 4 is wrong anyway, as there is no data assigned to that buffer. The developer set it to -1. It's useless for you. There are only 4 buffers (numbered from 0 to 3) for you. It seems you don't yet understand functions, function parameters and/or the documentation of iCustom(). Unfortunately I can't help you with this.

You have to call the indicator the way I showed you in the file I attached in my former post. No way around that. And the first parameter after "Trade-Confirmed-Indicator" is CountBars which needs to be at least 100 or so.
It takes blood, sweat and enough tears to wash away the blood.
  • #18
  • Edited 2:55am Nov 7, 2021 2:44am | Edited 2:55am
with 0.2 I assume every thing is set, I just get the missing bits so it is compiled, run it then iCustom() deliver arrow values

log file when I attach to chart... no arrow value at all....
Inserted Code
2021.11.07 08:29:33.870 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:33.870 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:33.870 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:07.260 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:07.260 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:07.260 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:07.182 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:07.182 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:07.182 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:07.113 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:07.113 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:07.113 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:07.044 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:07.044 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:07.044 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:06.981 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:06.981 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:06.981 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:06.928 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:06.928 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:06.928 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:06.843 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:06.843 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:06.843 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:06.796 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:06.796 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:06.796 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:06.712 Text PRINOUT V 0.2 AUDJPY,M5: trend_down = 83.901
2021.11.07 08:29:06.712 Text PRINOUT V 0.2 AUDJPY,M5: trend_up = 83.901
2021.11.07 08:29:06.712 Text PRINOUT V 0.2 AUDJPY,M5: itfm = 78.31772049
2021.11.07 08:29:06.658 itmf_sigalert AUDJPY,M5: initialized

log file when I run tester on indicator
Inserted Code
2021.11.07 08:36:46.978 2021.07.02 06:15:00 Tester: stop button pressed
2021.11.07 08:36:46.947 2021.07.02 06:15:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18434
...
2021.11.07 08:36:46.445 2021.07.02 05:30:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18448
2021.11.07 08:36:46.445 2021.07.02 05:30:00 Text PRINOUT V 0.2 EURUSD,M15: downArrow1 = 1.18471949
2021.11.07 08:36:46.307 2021.07.02 05:15:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.1846
...
2021.11.07 08:36:46.128 2021.07.02 05:00:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18461
2021.11.07 08:36:46.128 2021.07.02 05:00:00 Text PRINOUT V 0.2 EURUSD,M15: upArrow1 = 1.18396051
2021.11.07 08:36:45.975 2021.07.02 04:45:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18461
...
2021.11.07 08:36:45.489 2021.07.02 04:00:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18461
2021.11.07 08:36:45.489 2021.07.02 04:00:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18461
2021.11.07 08:36:45.489 2021.07.02 04:00:00 Text PRINOUT V 0.2 EURUSD,M15: downArrow1 = 1.18499949
2021.11.07 08:36:45.326 2021.07.02 03:45:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18461
2021.11.07 08:36:45.326 2021.07.02 03:45:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18461
2021.11.07 08:36:45.326 2021.07.02 03:45:00 Text PRINOUT V 0.2 EURUSD,M15: upArrow1 = 1.18404051
...
2021.11.07 08:36:44.370 2021.07.02 02:15:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18495
2021.11.07 08:36:44.370 2021.07.02 02:15:00 Text PRINOUT V 0.2 EURUSD,M15: downArrow1 = 1.18495949
2021.11.07 08:36:43.869 2021.07.02 01:30:00 Text PRINOUT V 0.2 EURUSD,M15: itfm = 35.72799725
...
2021.11.07 08:36:42.913 2021.07.02 00:00:00 Text PRINOUT V 0.2 EURUSD,M15: itfm = 46.52488626
2021.11.07 08:36:42.913 2021.07.02 00:00:00 Text PRINOUT V 0.2 EURUSD,M15: upArrow1 = 1.18449051
2021.11.07 08:36:42.682 2021.07.01 23:45:00 Text PRINOUT V 0.2 EURUSD,M15: itfm = 5.21734649
...
021.11.07 08:36:41.993 2021.07.01 23:00:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18454
2021.11.07 08:36:41.839 2021.07.01 22:45:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18454
2021.11.07 08:36:41.839 2021.07.01 22:45:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18454
...
2021.11.07 08:36:35.576 2021.07.01 13:00:00 Text PRINOUT V 0.2 EURUSD,M15: itfm = 52.67024952
2021.11.07 08:36:35.422 2021.07.01 12:45:00 Text PRINOUT V 0.2 EURUSD,M15: itfm = 22.82001634
2021.11.07 08:36:35.422 2021.07.01 12:45:00 Text PRINOUT V 0.2 EURUSD,M15: upArrow1 = 1.18470051
2021.11.07 08:36:35.275 2021.07.01 12:30:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18456
...
021.11.07 08:36:34.804 2021.07.01 11:45:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18515
2021.11.07 08:36:34.650 2021.07.01 11:30:00 Text PRINOUT V 0.2 EURUSD,M15: itfm = 19.36554803
2021.11.07 08:36:34.650 2021.07.01 11:30:00 Text PRINOUT V 0.2 EURUSD,M15: downArrow1 = 1.18520949
2021.11.07 08:36:34.487 2021.07.01 11:15:00 Text PRINOUT V 0.2 EURUSD,M15: itfm = 55.8255374
...
11.07 08:36:33.670 2021.07.01 10:00:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18436
2021.11.07 08:36:33.670 2021.07.01 10:00:00 Text PRINOUT V 0.2 EURUSD,M15: upArrow1 = 1.18362051
2021.11.07 08:36:33.485 2021.07.01 09:45:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18436
...
2021.11.07 08:36:32.367 2021.07.01 08:15:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18497
2021.11.07 08:36:32.367 2021.07.01 08:15:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18497
2021.11.07 08:36:32.367 2021.07.01 08:15:00 Text PRINOUT V 0.2 EURUSD,M15: downArrow1 = 1.18520949
2021.11.07 08:36:32.166 2021.07.01 08:00:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18497
2021.11.07 08:36:32.166 2021.07.01 08:00:00 Text PRINOUT V 0.2 EURUSD,M15: trend_up = 1.18497
2021.11.07 08:36:32.166 2021.07.01 08:00:00 Text PRINOUT V 0.2 EURUSD,M15: upArrow1 = 1.18461051
2021.11.07 08:36:31.997 2021.07.01 07:45:00 Text PRINOUT V 0.2 EURUSD,M15: trend_down = 1.18507
2021.11.07 08:36:31.997 2021.0
...

2021.11.07 08:36:26.814 2021.07.01 00:00:00 Text PRINOUT V 0.2 EURUSD,M15: itfm = 116.74568425
2021.11.07 08:36:26.752 2021.07.01 00:00:00 Custom indicator itmf_sigalert EURUSD,M15: loaded successfully
2021.11.07 08:36:23.041 Text PRINOUT V 0.2 test started
2021.11.07 08:36:23.041 Custom indicator Text PRINOUT V 0.2 EURUSD,M15: loaded successfully
2021.11.07 08:36:23.019 TestGenerator: current spread 1 used
2021.11.07 08:36:20.950 Expert Text PRINOUT V 0.2 EURUSD,M15: loaded successfully

simulation load the by iCustom() called indicators in 2 sec, then I see the simulation uning on chart as expected

Is this the correct run, what iCustom supposed to do? What is your eveluation? I still dont get all the 4 arows values to be sure they dont be garbage; perhaps I use on wrong market or not run long enough, M15 and I look back 100 bars only
Attached File(s)
File Type: mq4 Text PRINOUT V 0.2.mq4   12 KB | 371 downloads
  • #19
  • Nov 7, 2021 3:06am Nov 7, 2021 3:06am
Quoting ntk
...Is this the correct run, what iCustom supposed to do?
Yes, looks valid to me. I don't know the inner operations of that indicator, so I can't tell you when and how the arrows show up. You have to check the indicator in the tester. I don't even know if it can be used in the tester as it fetches current data from the internet (with a web request). Of course such a web request will most propably produce unexpected results in tester. You have to ask the developer for this.
It takes blood, sweat and enough tears to wash away the blood.
  • #20
  • Nov 7, 2021 3:30am Nov 7, 2021 3:30am
now run test on GU I got 4 arrows. I did add the trade_confirrmation indi also to the chart, to see where the signal, appeared and the simulator also delivers the arrow's values from iCustom()

Inserted Code
2021.11.07 09:01:03.094    2021.07.05 21:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  20.27812503
2021.11.07 09:01:02.947    2021.07.05 21:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  24.09844733
2021.11.07 09:01:02.793    2021.07.05 20:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  33.47521095
2021.11.07 09:01:02.646    2021.07.05 20:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  54.93514587
2021.11.07 09:01:02.477    2021.07.05 20:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  87.50585622
2021.11.07 09:01:02.277    2021.07.05 20:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  121.39061338
2021.11.07 09:01:02.099    2021.07.05 19:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38454
2021.11.07 09:01:02.099    2021.07.05 19:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38454
2021.11.07 09:01:02.099    2021.07.05 19:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  136.49459052
2021.11.07 09:01:01.929    2021.07.05 19:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38454
2021.11.07 09:01:01.929    2021.07.05 19:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38454
2021.11.07 09:01:01.929    2021.07.05 19:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  139.23941742
2021.11.07 09:01:01.760    2021.07.05 19:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38454
2021.11.07 09:01:01.760    2021.07.05 19:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38454
2021.11.07 09:01:01.760    2021.07.05 19:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  119.8716077
2021.11.07 09:01:01.597    2021.07.05 19:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38454
2021.11.07 09:01:01.597    2021.07.05 19:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38454
2021.11.07 09:01:01.597    2021.07.05 19:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  84.79101344
2021.11.07 09:01:01.597    2021.07.05 19:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.38468268
2021.11.07 09:01:01.444    2021.07.05 18:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38454
2021.11.07 09:01:01.444    2021.07.05 18:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38454
2021.11.07 09:01:01.444    2021.07.05 18:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  34.09220164
2021.11.07 09:01:01.290    2021.07.05 18:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38454
.
2021.11.07 09:00:59.671    2021.07.05 16:00:00  Trade-Confirmed-Indicator GBPUSD,M15: Alert: GBPUSD M15 SELL STRONG SIGNAL
2021.11.07 09:00:59.655    2021.07.05 16:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38566
2021.11.07 09:00:59.655    2021.07.05 16:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38566
2021.11.07 09:00:59.655    2021.07.05 16:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow2 =  1.38548732
.
2021.11.07 09:00:59.122    2021.07.05 15:45:00  Custom indicator itmf_sigalert GBPUSD,M15: removed
2021.11.07 09:00:58.768    2021.07.05 15:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  20.79804678
2021.11.07 09:00:58.768    2021.07.05 15:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.38608606
.
2021.11.07 09:00:55.277    2021.07.05 10:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  222.39011619
2021.11.07 09:00:55.114    2021.07.05 09:45:00  Trade-Confirmed-Indicator GBPUSD,M15: Alert: GBPUSD M15 BUY STRONG SIGNAL
2021.11.07 09:00:55.114    2021.07.05 09:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  167.59223465
2021.11.07 09:00:55.114    2021.07.05 09:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow2 =  1.38298394
2021.11.07 09:00:54.960    2021.07.05 09:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38225
2021.11.07 09:00:54.960    2021.07.05 09:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38225
2021.11.07 09:00:54.960    2021.07.05 09:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  55.83862203
2021.11.07 09:00:54.960    2021.07.05 09:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.38214394
.
2021.11.07 09:00:50.735    2021.07.05 03:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  4.73750383
2021.11.07 09:00:50.735    2021.07.05 03:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.38354606
.
2021.11.07 09:00:49.415    2021.07.05 01:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38315
2021.11.07 09:00:49.415    2021.07.05 01:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.38210394
.
2021.11.07 09:00:48.760    2021.07.05 00:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38342
2021.11.07 09:00:48.760    2021.07.05 00:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.38285606
.
2021.11.07 09:00:42.899    2021.07.02 15:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  16.42221362
2021.11.07 09:00:42.899    2021.07.02 15:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.37275394
.
2021.11.07 09:00:41.109    2021.07.02 13:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.37589
2021.11.07 09:00:41.109    2021.07.02 13:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.37647606
.
2021.11.07 09:00:40.624    2021.07.02 12:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.37589
2021.11.07 09:00:40.624    2021.07.02 12:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.37483394
2021.11.07 09:00:40.461    2021.07.02 12:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.37589
2021.11.07 09:00:40.461    2021.07.02 12:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.37589
2021.11.07 09:00:40.461    2021.07.02 12:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.37636606
.
2021.11.07 09:00:39.976    2021.07.02 11:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.37589
2021.11.07 09:00:39.976    2021.07.02 11:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.37515394
.
2021.11.07 09:00:38.620    2021.07.02 09:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.37705
2021.11.07 09:00:38.620    2021.07.02 09:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.37707606
.
2021.11.07 09:00:33.144    2021.07.02 01:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  12.92428318
2021.11.07 09:00:33.144    2021.07.02 01:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.37497551
.
2021.11.07 09:00:32.173    2021.07.02 00:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.37571
2021.11.07 09:00:32.173    2021.07.02 00:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.37571
2021.11.07 09:00:32.173    2021.07.02 00:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  40.23987735
2021.11.07 09:00:32.173    2021.07.02 00:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.37503551
.
2021.11.07 09:00:28.246    2021.07.01 18:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38071
2021.11.07 09:00:27.591    2021.07.01 17:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.38189449
2021.11.07 09:00:27.444    2021.07.01 17:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  42.4754623
2021.11.07 09:00:27.444    2021.07.01 17:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.37946551
.
2021.11.07 09:00:25.888    2021.07.01 14:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  19.6499639
2021.11.07 09:00:25.709    2021.07.01 14:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.37836
2021.11.07 09:00:25.709    2021.07.01 14:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.37836
2021.11.07 09:00:25.709    2021.07.01 14:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.37842551
.
2021.11.07 09:00:24.051    2021.07.01 11:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.3823
2021.11.07 09:00:23.719    2021.07.01 11:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  57.20130512
2021.11.07 09:00:23.719    2021.07.01 11:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.38383449
.
2021.11.07 09:00:22.978    2021.07.01 10:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38145
2021.11.07 09:00:22.978    2021.07.01 10:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38145
2021.11.07 09:00:22.978    2021.07.01 10:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.38097551
.
2021.11.07 09:00:21.875    2021.07.01 08:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38159
2021.11.07 09:00:21.875    2021.07.01 08:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  72.32554407
2021.11.07 09:00:21.875    2021.07.01 08:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.38218449
.
2021.11.07 09:00:21.443    2021.07.01 07:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  145.78798071
2021.11.07 09:00:21.443    2021.07.01 07:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: upArrow1 =  1.38144551
2021.11.07 09:00:21.274    2021.07.01 07:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38159
.
2021.11.07 09:00:18.890    2021.07.01 03:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38292
2021.11.07 09:00:18.890    2021.07.01 03:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: downArrow1 =  1.38313449
.
2021.11.07 09:00:18.404    2021.07.01 02:45:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  1.59093319
2021.11.07 08:59:41.970    2021.07.01 02:30:00  Custom indicator Trade-Confirmed-Indicator GBPUSD,M15: loaded successfully
2021.11.07 08:59:19.807    2021.07.01 02:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_down =  1.38301
2021.11.07 08:59:19.807    2021.07.01 02:30:00  Text PRINOUT   V 0.2 GBPUSD,M15: trend_up =  1.38301
...
2021.11.07 08:59:18.380    2021.07.01 00:15:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  88.5184883
2021.11.07 08:59:18.002    2021.07.01 00:00:00  Text PRINOUT   V 0.2 GBPUSD,M15: itfm =  129.03200963
2021.11.07 08:59:17.933    2021.07.01 00:00:00  Custom indicator itmf_sigalert GBPUSD,M15: loaded successfully
2021.11.07 08:59:14.492    Text PRINOUT   V 0.2 test started
2021.11.07 08:59:14.492    Custom indicator Text PRINOUT   V 0.2 GBPUSD,M15: loaded successfully
2021.11.07 08:59:14.486    TestGenerator: current spread 8 used
2021.11.07 08:59:12.416    Expert Text PRINOUT   V 0.2 GBPUSD,M15: loaded successfully


I think this is the correct read of arrow values from iCustom(). The othe eperiment simulation take long to load indis on chart hen not run simul at all because iCustom() ran into a loop, or exception somewhere

I see also Pzelopetrend is rubbish to be used as trend indicator it repainted, may be I tr Non lag dot, hull, supertrend or half trend
What would your evaluation says?


How did you get out the whole structure how trade_confirmation.ex4 should be called correctly by iCustom? I save setting then use the setting to fill values in iCustom() but with that method still missing a few elements ...
Attached Image (click to enlarge)
Click to Enlarge Name: fb5d2e507cf1e6a4a1b07e13a13ad57d.png Size: 32 KB
Attached File(s)
File Type: mq4 Text PRINOUT V 0.2.mq4   12 KB | 439 downloads
0 traders viewing now
