Need Help: To Get Shifts of a Fractals Structure

  • #1
  • First Post: Edited Jun 3, 2021 12:53am Jun 2, 2021 11:27pm | Edited Jun 3, 2021 12:53am
Hi coders, I need your help. I need to get a set of codes that to detect the shifts of a fractals structure with the following conditions (kindly look at my picture to have a better understanding) :-

Sf = Shift
Px = Fractals Price Level

- - - - - - - -
Fractals structure 1 :-
FrL1Sf < FrH1Sf && FrH1Sf < FrL2Sf && FrL2Sf < FrH2Sf &&
FrH2Px > FrL2Px && FrL1Px < MathMin(FrH2Px,FrL2Px) && FrH1Px > MathMax(FrH2Px,FrL2Px)

My mission is to get the shifts of FrL1Sf and FrH2Sf.
- - - - - - - -
Fractals structure 2 :-
FrL3Sf < FrH3Sf && FrH3Sf < FrL4Sf && FrL4Sf < FrH4Sf &&
FrH4Px > FrL4Px && FrL3Px < MathMin(FrH4Px,FrL4Px) && FrH3Px > MathMax(FrH4Px,FrL4Px)

My mission is to get the shifts of FrL3Sf and FrH4Sf.
- - - - - - - -

I found a similar calculation of loop by using "while" at https://www.forexfactory.com/thread/...67#post3850167 but the problem that I'm facing is the shifts distances of the fractals are not fixed, it is varying.

Hope the coders can give me a set of loop formulas to detect the shifts of the samples of Fractals structure 1 and Fractals structure 2 above, thank you.

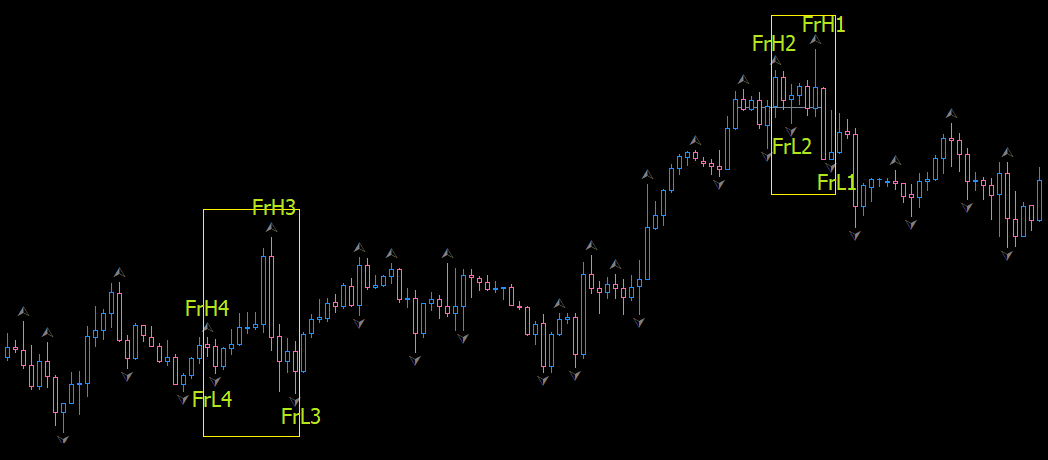

Attached Image (click to enlarge)
Click to Enlarge Name: Fractals Structure.png Size: 21 KB
  • #2
  • Jun 3, 2021 4:19pm Jun 3, 2021 4:19pm
Quoting chimoong
Hi coders, I need your help. I need to get a set of codes that to detect the shifts of a fractals structure with the following conditions (kindly look at my picture to have a better understanding) :- Sf = Shift Px = Fractals Price Level - - - - - - - - Fractals structure 1 :- FrL1Sf < FrH1Sf && FrH1Sf < FrL2Sf && FrL2Sf < FrH2Sf && FrH2Px > FrL2Px && FrL1Px < MathMin(FrH2Px,FrL2Px) && FrH1Px > MathMax(FrH2Px,FrL2Px) My mission is to get the shifts of FrL1Sf and FrH2Sf. - - - - - - - - Fractals structure 2 :- FrL3Sf < FrH3Sf && FrH3Sf < FrL4Sf &&...
I dont know for what purpose and in what intention you are working on fractal,and or what strategy behind in your mind,but here is what all experts opinion about fractal or a kind of fractals nature
Attached Image (click to enlarge)
Click to Enlarge Name: 1.png Size: 41 KB

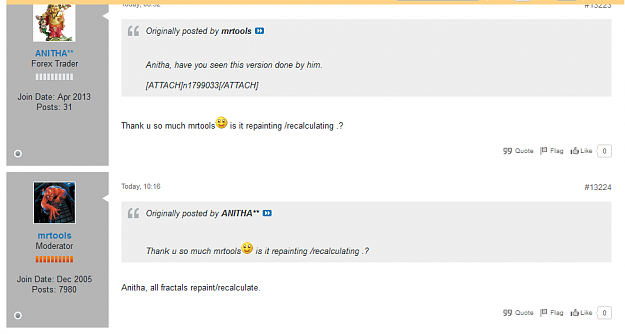

Attached Image (click to enlarge)
Click to Enlarge Name: 2.png Size: 50 KB
  • #3
  • Jun 4, 2021 2:16am Jun 4, 2021 2:16am
Quoting mntiwana
{quote} I dont know for what purpose and in what intention you are working on fractal,and or what strategy behind in your mind,but here is what all experts opinion about fractal or a kind of fractals nature {image}{image}
Thanks, but you don't provide your codes of solution. Honestly, if I know the answer, I won't create this thread seeking help from coders. Anyway, I still appreciate your post.

I will put my own wrong codes below and hope you can mod the codes to give me the correct coding solution, thanks.
  • #4
  • Jun 4, 2021 2:29am Jun 4, 2021 2:29am
Hi coders, the following set of codes are wrong, I was trying my very best to figure out myself but yet failed to get what I want. FYI, these codes will be put into my EA as part of the entry conditions. I want to get the shifts of FrL1Sf and FrL3Sf so that they can be used in other calculations.

Kindly look into codes and modify the neccesary to get a correct set of codes.

Kindly refer to picture https://www.forexfactory.com/attachm...1&d=1622694289 for better understanding

Inserted Code
   int Fr12H2LASfM15=0; // refer tp Pic, this is to get the shift of FrL1Sf
   int Fr22H2LASfM15=0; // refer tp Pic, this is to get the shift of FrL3Sf
   {
   int s12H2L=3, s22H2L=3, tf=15;
//+------------------------------------------------------------------+ for getting the FrL1Sf
   for(int ct=1; ct<=1; ct++) {

   int Fr1LoASfM15=0; {
   int s1L=3;
      if(iFractals(Symbol(),tf,MODE_LOWER,s1L)>0) s1L++;
   Fr1LoASfM15=s1L; }

   int Fr1HiASfM15=0; {
   int s1H=Fr1LoASfM15+1;
   for(int fr=1; fr<=1; fr++) {
      while(iFractals(Symbol(),tf,MODE_UPPER,s1H)==0) s1H++;
      if(fr<1) s1H++; }
   Fr1HiASfM15=s1H; }

   int Fr2LoASfM15=0; {
   int s2L=Fr1HiASfM15+1;
   for(int fr=1; fr<=1; fr++) {
      while(iFractals(Symbol(),tf,MODE_LOWER,s2L)==0) s2L++;
      if(fr<1) s2L++; }
   Fr2LoASfM15=s2L; }

   int Fr2HiASfM15=0; {
   int s2H=Fr2LoASfM15+1;
   for(int fr=1; fr<=1; fr++) {
      while(iFractals(Symbol(),tf,MODE_UPPER,s2H)==0) s2H++;
      if(fr<1) s2H++; }
   Fr2HiASfM15=s2H; }

   double Fr1LoAM15=iLow(Symbol(),tf,Fr1LoASfM15);
   double Fr1HiAM15=iHigh(Symbol(),tf,Fr1HiASfM15);
   double Fr2LoAM15=iLow(Symbol(),tf,Fr2LoASfM15);
   double Fr2HiAM15=iHigh(Symbol(),tf,Fr2HiASfM15);

   if(Fr1LoASfM15<Fr1HiASfM15 && Fr1HiASfM15<Fr2LoASfM15 && Fr2LoASfM15<Fr2HiASfM15 &&
   Fr2HiAM15>Fr2LoAM15 &&
   Fr1LoAM15<MathMin(Fr2HiAM15,Fr2LoAM15) && Fr1HiAM15>MathMax(Fr2HiAM15,Fr2LoAM15)) s12H2L++;
   if(ct<1) s12H2L++;
   }
//+------------------------------------------------------------------+ for getting the FrL3Sf
   for(int ct=1; ct<=2; ct++) {

   int Fr1LoASfM15=0; {
   int s1L=3;
      if(iFractals(Symbol(),tf,MODE_LOWER,s1L)>0) s1L++;
   Fr1LoASfM15=s1L; }

   int Fr1HiASfM15=0; {
   int s1H=Fr1LoASfM15+1;
   for(int fr=1; fr<=1; fr++) {
      while(iFractals(Symbol(),tf,MODE_UPPER,s1H)==0) s1H++;
      if(fr<1) s1H++; }
   Fr1HiASfM15=s1H; }

   int Fr2LoASfM15=0; {
   int s2L=Fr1HiASfM15+1;
   for(int fr=1; fr<=1; fr++) {
      while(iFractals(Symbol(),tf,MODE_LOWER,s2L)==0) s2L++;
      if(fr<1) s2L++; }
   Fr2LoASfM15=s2L; }

   int Fr2HiASfM15=0; {
   int s2H=Fr2LoASfM15+1;
   for(int fr=1; fr<=1; fr++) {
      while(iFractals(Symbol(),tf,MODE_UPPER,s2H)==0) s2H++;
      if(fr<1) s2H++; }

   Fr2HiASfM15=s2H; }
   double Fr1LoAM15=iLow(Symbol(),tf,Fr1LoASfM15);
   double Fr1HiAM15=iHigh(Symbol(),tf,Fr1HiASfM15);
   double Fr2LoAM15=iLow(Symbol(),tf,Fr2LoASfM15);
   double Fr2HiAM15=iHigh(Symbol(),tf,Fr2HiASfM15);

   if(Fr1LoASfM15<Fr1HiASfM15 && Fr1HiASfM15<Fr2LoASfM15 && Fr2LoASfM15<Fr2HiASfM15 &&
   Fr2HiAM15>Fr2LoAM15 &&
   Fr1LoAM15<MathMin(Fr2HiAM15,Fr2LoAM15) && Fr1HiAM15>MathMax(Fr2HiAM15,Fr2LoAM15)) s22H2L++;
   if(ct<2) s22H2L++;
   }
//+------------------------------------------------------------------+
   Fr12H2LASfM15=s12H2L;
   Fr22H2LASfM15=s22H2L;
   }

   {Alert(Symbol()+" Shift of Fr12H2LASfM15 || Fr22H2LASfM15 : "+IntegerToString(Fr12H2LASfM15)+" || "+IntegerToString(Fr22H2LASfM15));}
  • #5
  • Last Post: Edited 7:38pm Jun 10, 2021 3:11pm | Edited 7:38pm
deleted
